CLUTCH MASTER CYLINDER

GSXR1100 1989 (K) USA (E03)

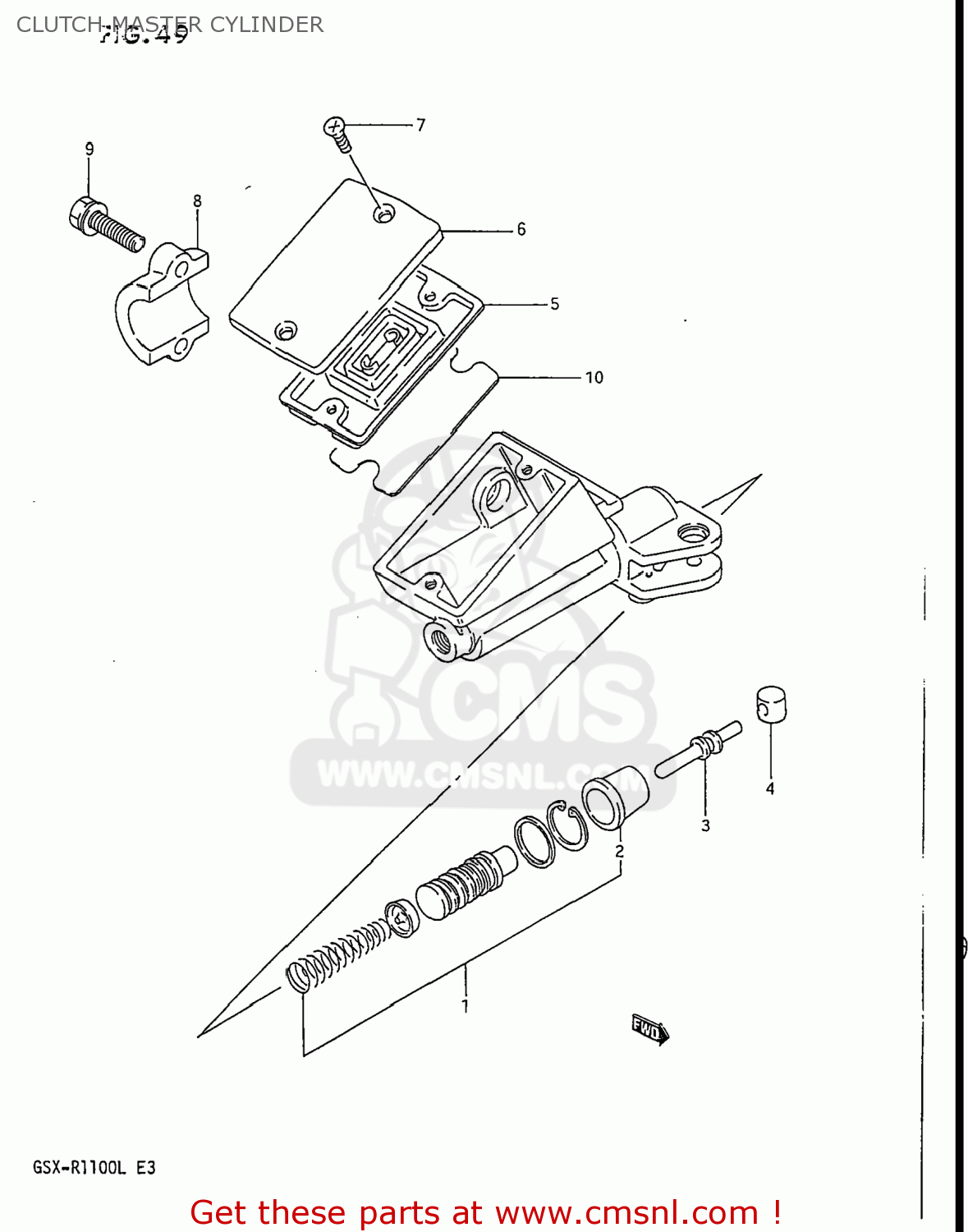

Clutch master cylinder diagram GSXR1100 1989 (K) USA (E03)

CLUTCH MASTER CYLINDER GSXR1100 1989 (K) USA (E03)

CLUTCH MASTER CYLINDER GSXR1100 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity



5980040C10
ref:
59800-40C12

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 301.00



5980040C11
ref:
59800-40C12

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 301.00

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987108A00
ref: 3

ROD,PUSH

€ 5.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6-1

5966924A00
ref: 6-1

CAP

€ 30.50

6-2

5966924A01
ref: 6-2
59669-24A00

CAP,MASTER CYLINDER,REAR

€ 30.50

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967119B00
ref: 8

HOLDER

€ 18.50

9

5967517C00
ref: 9
59675-19C00

BOLT

€ 3.00

10

5966405C00
ref: 10

FLOAT

€ 6.50
