COWLING (MODEL K 3CG)
GSXR1100 1989 (K) USA (E03)

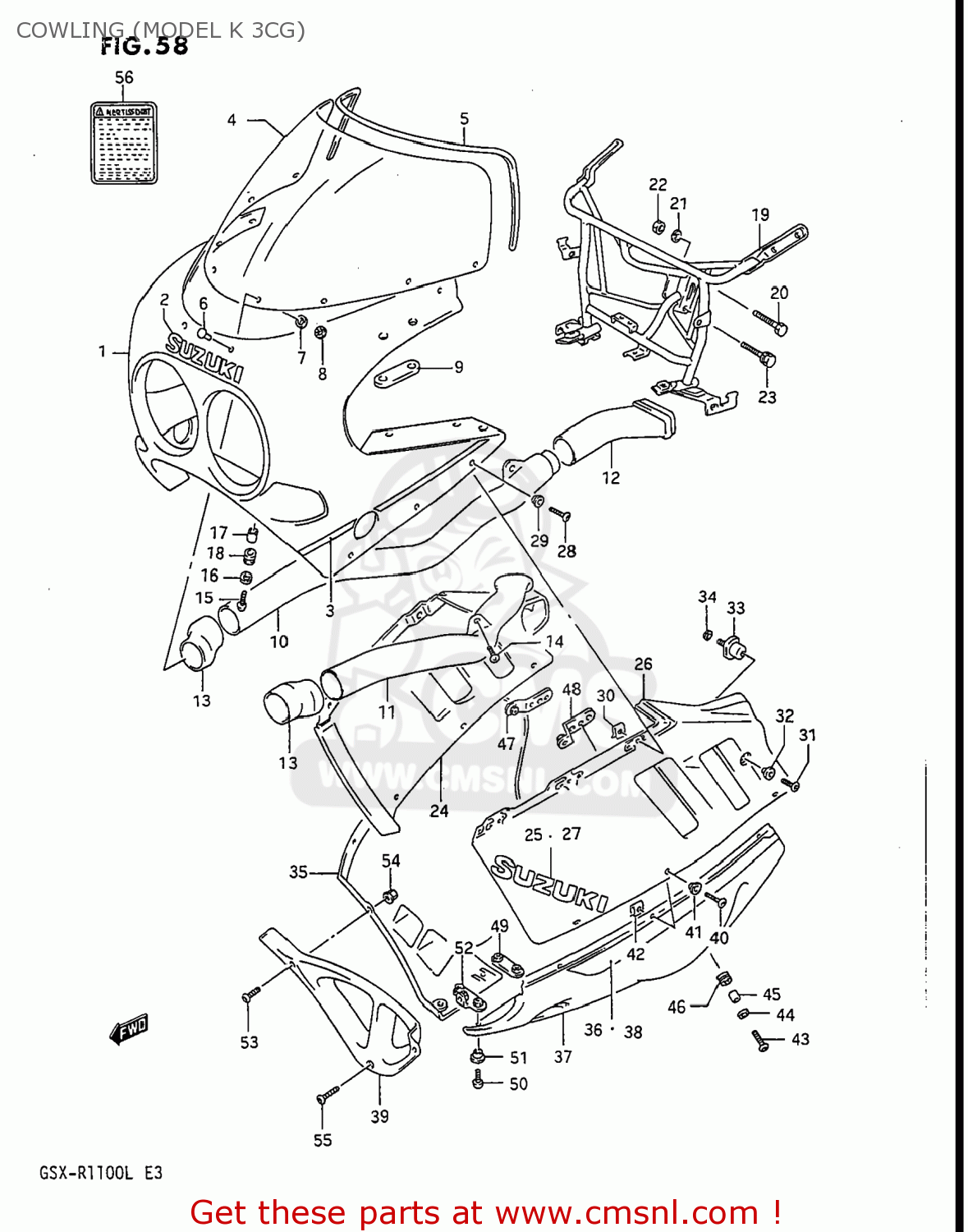

Cowling (model k 3cg) diagram GSXR1100 1989 (K) USA (E03)
COWLING (MODEL K 3CG) GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440040C413CG
ref: 1-1
BODY ASSY,COWLING
€ 919.00
1-1
9440040C413CG
ref: 1-1
BODY ASSY,COWLING
€ 919.00
1-2
9440040C423CG
ref: 1-2
94400-40C41-3CG
BODY ASSEMBLY,COWLING
€ 919.00
1-2
9440040C423CG
ref: 1-2
94400-40C41-3CG
BODY ASSEMBLY,COWLING
€ 919.00
2
6818505C10742
ref: 2
EMBLEM,COWLING FR
€ 9.00
3
6827040C2033J
ref: 3
TAPE SET,COWLING
€ 20.50
4
9461040C00
ref: 4
SCREEN SET,WINDOW
€ 455.50
5
9463140C00
ref: 5
94631-44110
MOLDING
€ 18.00
6
9461640C01
ref: 6
94616-10D00
PIN,WINDSCREEN
€ 2.50
7
0932004007
ref: 7
09320-04501
CUSHION
€ 3.00
8
0914804032
ref: 8
NUT
€ 2.50
9
9457612C00
ref: 9
CUSHION,RR VIEW MIRRORR
€ 4.50
10
9445140C00
ref: 10
PIPE,AIR INTAKE FR,R
€ 33.00
11
9445240C00
ref: 11
PIPE,AIR INTAKE,FRONT
€ 34.00
12
9445317C00
ref: 12
PIPE,AIR INTAKE RR,R
€ 23.50
13
9445440C00
ref: 13
JOINT,AIR INTAKE
€ 16.00
14
0214206205
ref: 14
02142-0620A
SCREW, CENTER
€ 2.00
15
0913906056
ref: 15
SCREW(6X20)
€ 3.00
16
0916006056
ref: 16
WASHER(6.5X18X1)
€ 2.00
17
0918006152
ref: 17
09180-06262
SPACER
€ 3.00
18
0932009016
ref: 18
CUSHION
€ 2.50
19
9451040C02
ref: 19
94510-40C13
BRACE,COWLING
€ 236.50
20
0110708355
ref: 20
01500-0835B
BOLT
€ 3.50
21
0832121084
ref: 21
08321-0108A
WASHER,LOCK,8.
€ 2.50
22
0831012085
ref: 22
08310-0008A
NUT ,8MM
€ 1.50
23
0113708355
ref: 23
01570-0835A
BOLT
€ 2.00
24-1
9443040C213CG
ref: 24-1
COVER,COWLING SIDE,R
€ 531.50
24-2
9443040C223CG
ref: 24-2
94430-40C21-3CG
COVER ASSEMBLY,COWLING
€ 531.50
25
6868117C00742
ref: 25
EMBLEM,COWLING SIDE
€ 13.50
26-1
9444040C213CG
ref: 26-1
COVER,COWLING SIDE,L
€ 408.00
26-2
9444040C223CG
ref: 26-2
94440-40C21-3CG
COVER COMP,COWLING SIDE,LEFT
€ 408.00
27
6868117C00742
ref: 27
EMBLEM,COWLING SIDE
€ 13.50
28
0913905032
ref: 28
SCREW(5X18)
€ 2.50
29
0916105017
ref: 29
WASHER(5.2X14X1.5)
€ 3.00
30
9448432B00
ref: 30
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
30
9448432B00
ref: 30
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
30
9448432B00
ref: 30
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
31
0913906027
ref: 31
SCREW(6X12)
€ 3.00
32
0916106021
ref: 32
WASHER(6.3X16X1.5)
€ 2.50
33
9457004A00
ref: 33
CUSHION,COWLING
€ 12.50
34
0832121064
ref: 34
08321-0106A
WASHER,LOCK
€ 2.00
35-1
9447040C603CH
ref: 35-1
COWLING COMP,UNDER,RIGHT
€ 223.00
35-1
9447040C603CH
ref: 35-1
COWLING COMP,UNDER,RIGHT
€ 223.00
35-2
9447040C613CH
ref: 35-2
94470-40C60-3CH
COWLING COMP,UNDER,RIGHT
€ 223.00
35-2
9447040C613CH
ref: 35-2
94470-40C60-3CH
COWLING COMP,UNDER,RIGHT
€ 223.00
36
6818540C1017U
ref: 36
TAPE,COWLING,UNDER,RIGHT
€ 15.00
37-1
9448040C603CH
ref: 37-1
COWLING COMP,UNDER,LEFT
€ 371.00
37-1
9448040C603CH
ref: 37-1
COWLING COMP,UNDER,LEFT
€ 371.00
37-2
9448040C613CH
ref: 37-2
94480-40C60-3CH
COWLING COMP,UNDER,LEFT
€ 371.00
37-2
9448040C613CH
ref: 37-2
94480-40C60-3CH
COWLING COMP,UNDER,LEFT
€ 371.00
38
6819540C1017U
ref: 38
TAPE,COWLING,UNDER,LEFT
€ 15.00
39-1
9449817C0033J
ref: 39-1
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
39-2
9449817C01
ref: 39-2
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
40
0913905032
ref: 40
SCREW(5X18)
€ 2.50
41
0916105017
ref: 41
WASHER(5.2X14X1.5)
€ 3.00
42
9448432B00
ref: 42
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
43
0913906028
ref: 43
SCREW(6X20)
€ 3.50
44
0916006056
ref: 44
WASHER(6.5X18X1)
€ 2.00
45
0918006152
ref: 45
09180-06262
SPACER
€ 3.00
46
0932009016
ref: 46
CUSHION
€ 2.50
47
9458017C01
ref: 47
94580-40C00
BRACKET
€ 6.00
48
9459017C01
ref: 48
94590-40C00
BRACE,COWLING UNDER,LH
€ 7.00
49
9449306B00
ref: 49
BRACE,COWLING LWR COVER RR
€ 4.00
50
0913906039
ref: 50
SCREW(6X16)
€ 2.50
51
0916106021
ref: 51
WASHER(6.3X16X1.5)
€ 2.50
52
9449006B00
ref: 52
BRACE,COWLING LWR COVER
€ 4.50
53
0913905025
ref: 53
SCREW(5X14)
€ 2.00
54
0831626055
ref: 54
08316-2005A
NUT
€ 2.00
55
0913906030
ref: 55
SCREW(6X16)
€ 3.50
56-1
6861248B00
ref: 56-1
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
56-2
6861340C11
ref: 56-2
68613-21E10
LABEL (WARNING)
€ 8.50
56-2
6861340C11
ref: 56-2
68613-21E10
LABEL (WARNING)
€ 8.50
56-2
6861340C11
ref: 56-2
68613-21E10
LABEL (WARNING)
€ 8.50
