FRONT DAMPER
GSXR1100 1989 (K) USA (E03)

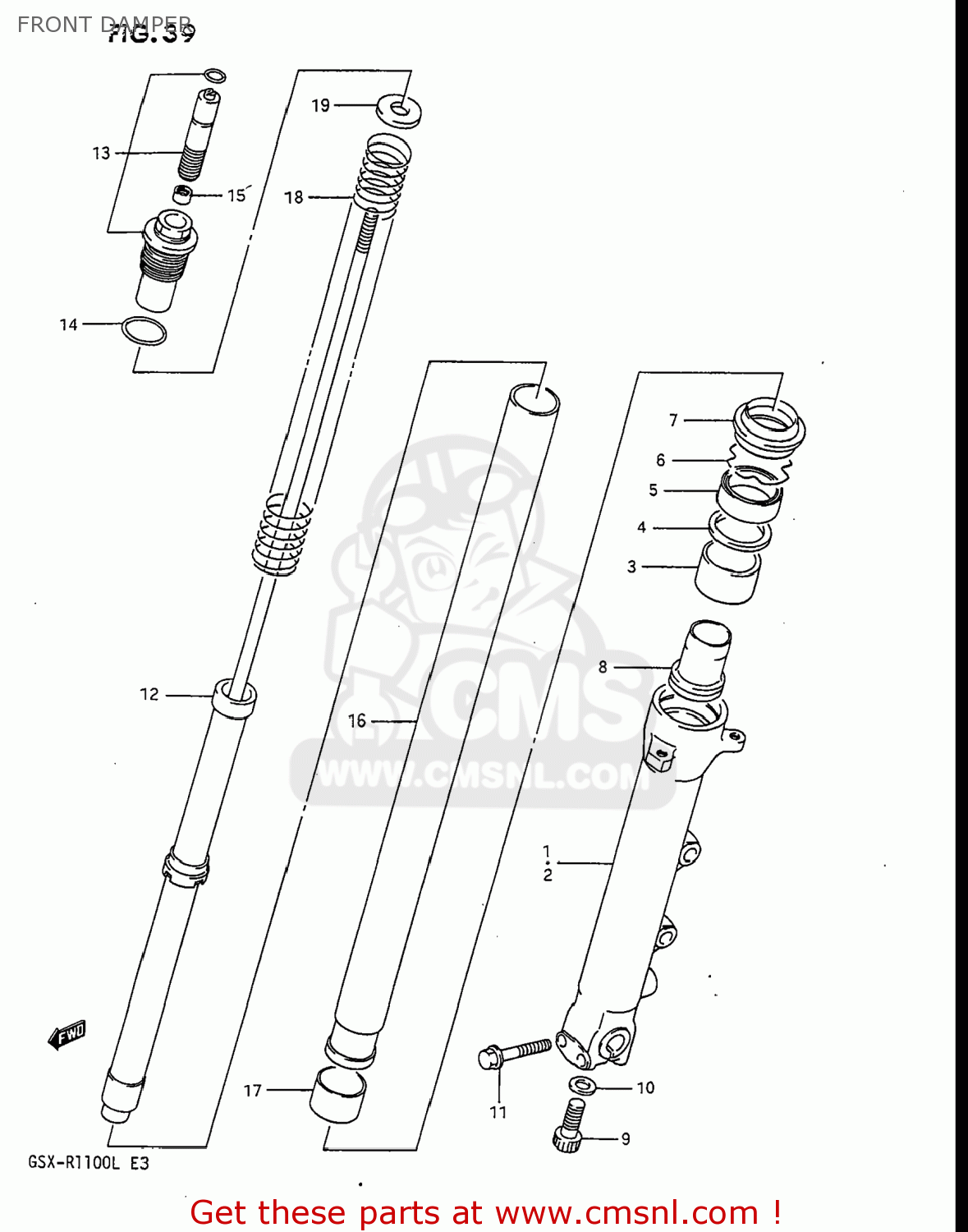

Front damper diagram GSXR1100 1989 (K) USA (E03)
FRONT DAMPER GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110340C10
ref:
DAMPER ASSY,FR FORK,R
€ 1,033.00
5110340C30
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110440C10
ref:
DAMPER ASSY,FR FORK,L
€ 933.50
5110440C30
ref:
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5113040C00
ref: 1
TUBE,OUTER,R
€ 358.50
2
5114040C00
ref: 2
TUBE,OUTER,L
€ 459.00
3
5116740C00
ref: 3
METAL,SLIDE
€ 13.50
4
5115814200
ref: 4
WASHER
€ 4.00
5
5115340C00
ref: 5
51153-46E20
OIL SEAL,FRONT FORK
€ 15.50
6
5115614200
ref: 6
RING,STOPPER
€ 4.50
7
5117340C00
ref: 7
SEAL,DUST
€ 18.50
8
5119540C00
ref: 8
PIECE,OIL LOCK
€ 90.50
9
5114740C00
ref: 9
BOLT,OIL LOCK PIECE,12X22
€ 24.50
10
5114840300
ref: 10
GASKET,CYLINDER (NAS)
€ 2.50
11
5176640C00
ref: 11
07130-08457
BOLT,RH
€ 3.00
12-1
5114640C00
ref: 12-1
51146-40C90
CYLINDER,FRONT FORK
€ 539.00
12-2
5114640C30
ref: 12-2
51146-40C90
CYLINDER,FRONT FORK
€ 539.00
13
5135140C00
ref: 13
CAP ASSY,FORK
€ 119.00
14
5111714200
ref: 14
O RING
€ 2.00
15
5135213A60
ref: 15
NUT,ROD
€ 1.50
16-1
5111040C00
ref: 16-1
TUBE,INNER
€ 358.50
16-2
5111040C30
ref: 16-2
TUBE,INNER
€ 327.00
17
5112140C00
ref: 17
PISTON
€ 11.50
18-1
5117140C10
ref: 18-1
SPRING
€ 58.50
18-2
5117140C30
ref: 18-2
SPRING,FORK
€ 0.00
19
5119240C00
ref: 19
WASHER,SPRING GUIDE
€ 5.50
