FUEL TANK (MODEL K)
GSXR1100 1989 (K) USA (E03)

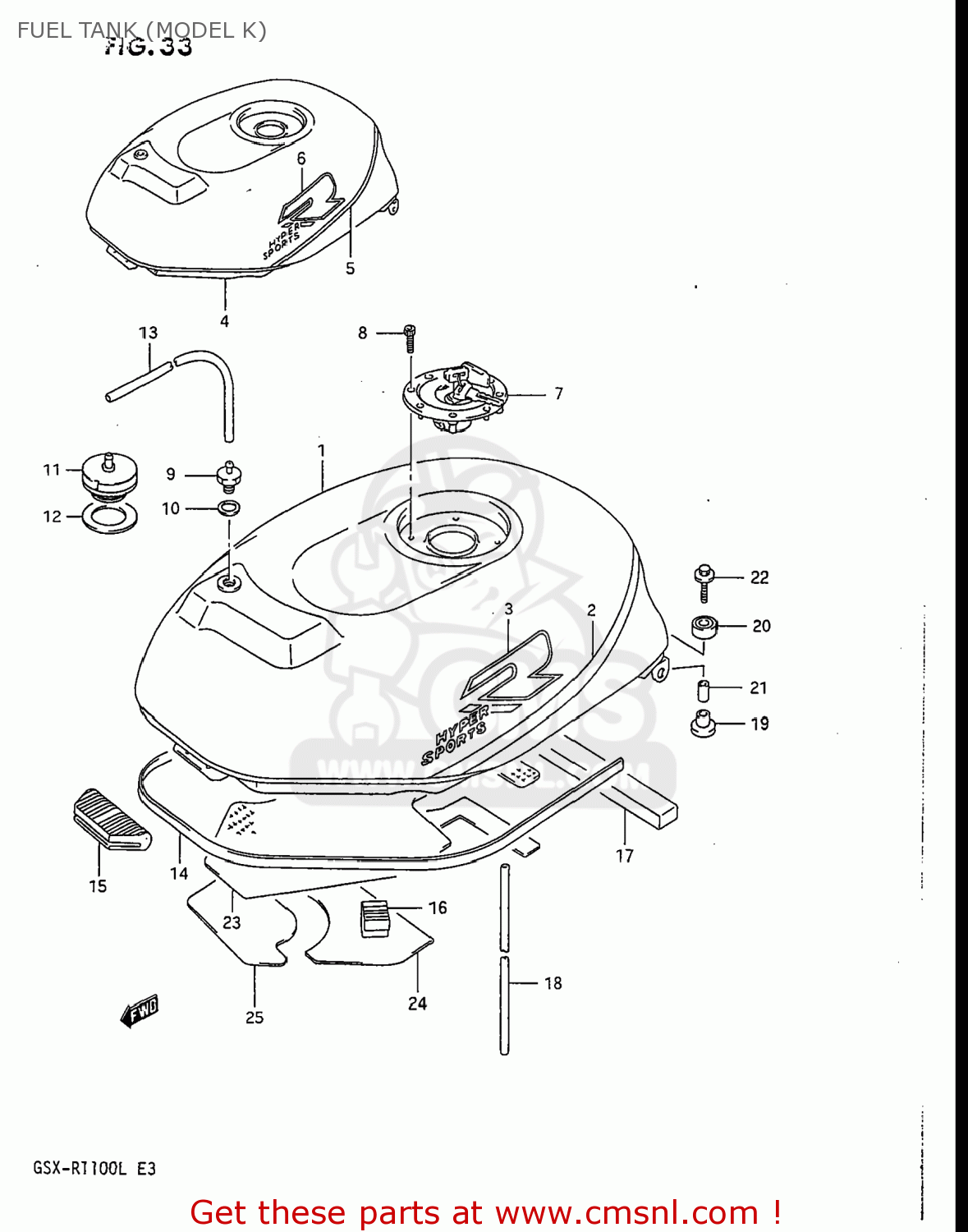

Fuel tank (model k) diagram GSXR1100 1989 (K) USA (E03)
FUEL TANK (MODEL K) GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410040C009SR
ref: 1-1
44110-40C10-Y2D
TANK ASSEMBLY,FUEL
€ 993.50
1-2
4910040C009SR
ref: 1-2
TANK ASSEMBLY,FUEL
€ 446.00
2
6811540C0039K
ref: 2
TAPE,FUEL TANK STRIPE
€ 39.50
3
6811106B002GS
ref: 3
EMBLEM,FUEL TANK
€ 18.00
4-1
4410040C603CG
ref: 4-1
44110-40C10-Y2D
TANK ASSEMBLY,FUEL
€ 993.50
4-2
4910040C103CG
ref: 4-2
TANK ASSEMBLY,FUEL
€ 400.00
5
6811540C2033J
ref: 5
TAPE,FUEL TANK STRIPE
€ 47.50
6
6811106B002RM
ref: 6
EMBLEM,FUEL TANK
€ 17.00
7
4420019C20KEY
ref: 7
44201-01852
CAP SET,FUEL TANK
€ 166.50
8
0910605017
ref: 8
BOLT(5X20)
€ 3.00
9
4424006B10
ref: 9
PLUG,FUEL TANK BREATHER
€ 36.00
10
0916812012
ref: 10
GASKET(12.5X20X2.5) (NAS)
€ 2.00
11
4424028A01
ref: 11
(CA) VALVE,FUEL TANK BREATHER
€ 65.00
12
0916827001
ref: 12
GASKET 27X40X2.5 (NAS)
€ 2.50
13
0935250823370
ref: 13
44420-44AR0
HOSE
€ 13.00
14
6824127A00
ref: 14
68241-04X50-00B
MOLDING,FUEL TANK
€ 23.00
15
4451117C00
ref: 15
CUSHION,FUEL TANK FR
€ 8.50
16
4454540C00
ref: 16
CUSHION,TANK,S
€ 9.50
17
4415117C00
ref: 17
13841-17E00
CUSHION, AIR SEAL
€ 18.00
18
0935250823730
ref: 18
09352-50823-00B
HOSE
€ 13.00
19
0932010038
ref: 19
CUSHION
€ 4.00
20
0932014017
ref: 20
CUSHION
€ 3.00
21
0918006072
ref: 21
09180-06271
SPACER
€ 2.00
22
0911606097
ref: 22
BOLT(6X35)
€ 2.50
23
4419117C01
ref: 23
HEAT SHIELD,FUEL TANK
€ 30.50
24
4419140C00
ref: 24
HEAT SHIELD,FUEL TANK IN
€ 16.00
25
4419140C10
ref: 25
HEAT SHIELD,FUEL TANK IN
€ 39.00
25
4419140C10
ref: 25
HEAT SHIELD,FUEL TANK IN
€ 39.00
