STAND
GSXR1100 1989 (K) USA (E03)

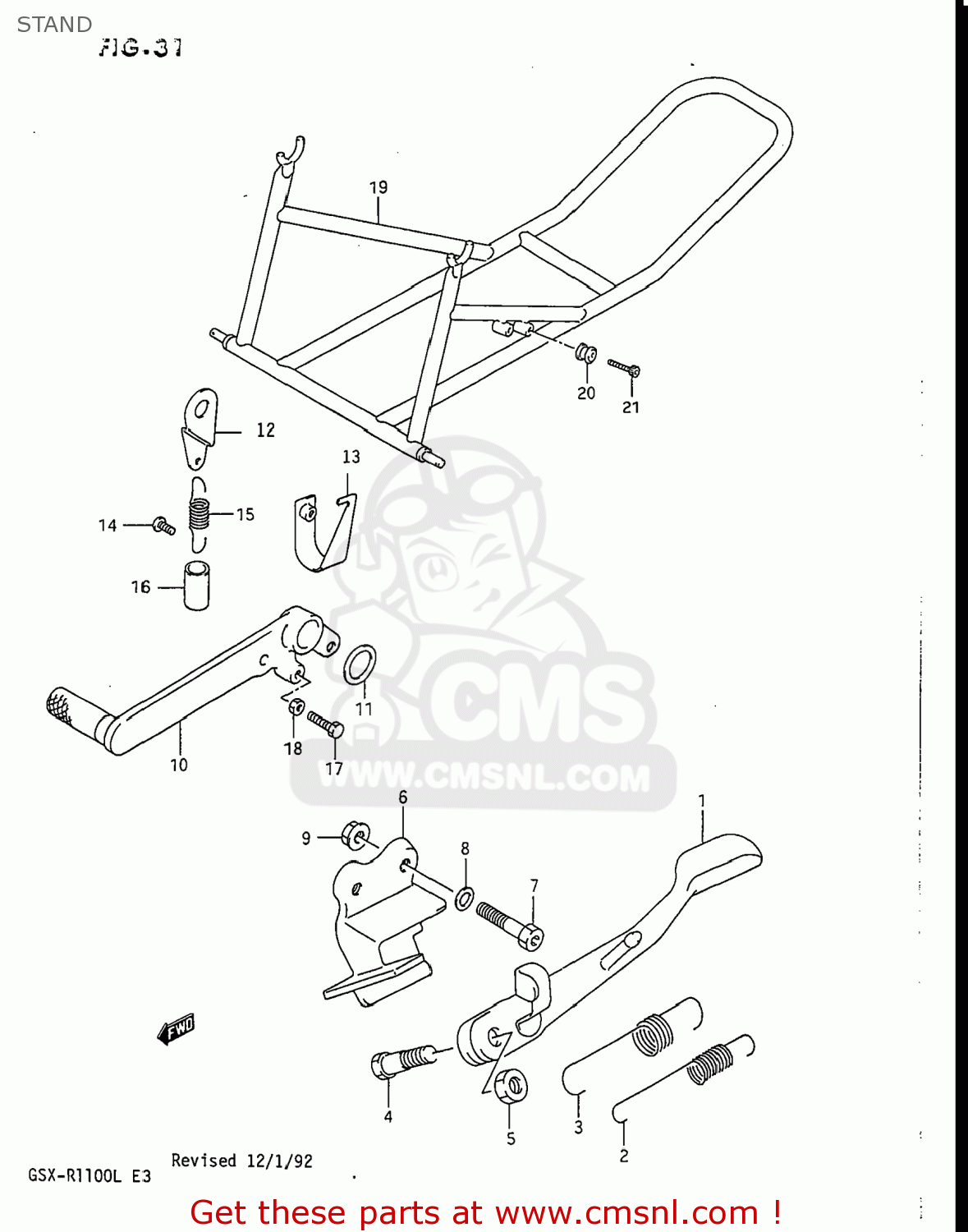

Stand diagram GSXR1100 1989 (K) USA (E03)
STAND GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231040C00
ref: 1-1
STAND,PROP
€ 73.00
1-2
4231007D02
ref: 1-2
STAND,PROP
€ 98.50
2
0944314058
ref: 2
SPRING
€ 5.50
3
0944319011
ref: 3
SPRING
€ 5.50
4
0911110036
ref: 4
BOLT(10X38)
€ 5.50
5
0831022107
ref: 5
08310-00107
NUT
€ 2.50
6-1
4233040C10
ref: 6-1
BRACKET,PROP STAND
€ 71.00
6-2
4233040C20
ref: 6-2
BRACKET,PROP STAND
€ 81.50
7
0711008357
ref: 7
07130-08357
BOLT, FRONT RH
€ 4.50
8
0916408015
ref: 8
WASHER
€ 3.00
9
0831616088
ref: 9
08316-10087
NUT
€ 2.50
10-1
4311017C02
ref: 10-1
43110-17C03
PEDAL,BRAKE
€ 96.50
10-2
4311017C03
ref: 10-2
PEDAL,BRAKE
€ 96.50
11
0916018022
ref: 11
WASHER(18X24X1)
€ 3.00
12
4356117C01
ref: 12
PLATE,BRAKE SPRING,FRONT
€ 4.50
13
4356317C00
ref: 13
43563-17C01
BRACKET,STOP SWITCH SPRING
€ 8.00
14
0913906027
ref: 14
SCREW(6X12)
€ 3.00
15
0944313018
ref: 15
SPRING
€ 4.00
16
4326117C00
ref: 16
TUBE,BRAKE SPRING GUIDE
€ 5.50
17
0110405206
ref: 17
01500-0520B
BOLT
€ 2.50
18
0831011058
ref: 18
08310-00057
NUT
€ 2.50
19
4210017C00
ref: 19
99950-70043-RAC
STAND ASSEMBLY,REAR
€ 471.00
20
6116527A30
ref: 20
HOLDER,STAND
€ 26.50
21
0711008305
ref: 21
07130-0830A
BOLT, REAR (8X30)
€ 3.00
