SIGNAL GENERATOR

GSXR1100 1989 (K) USA (E03)

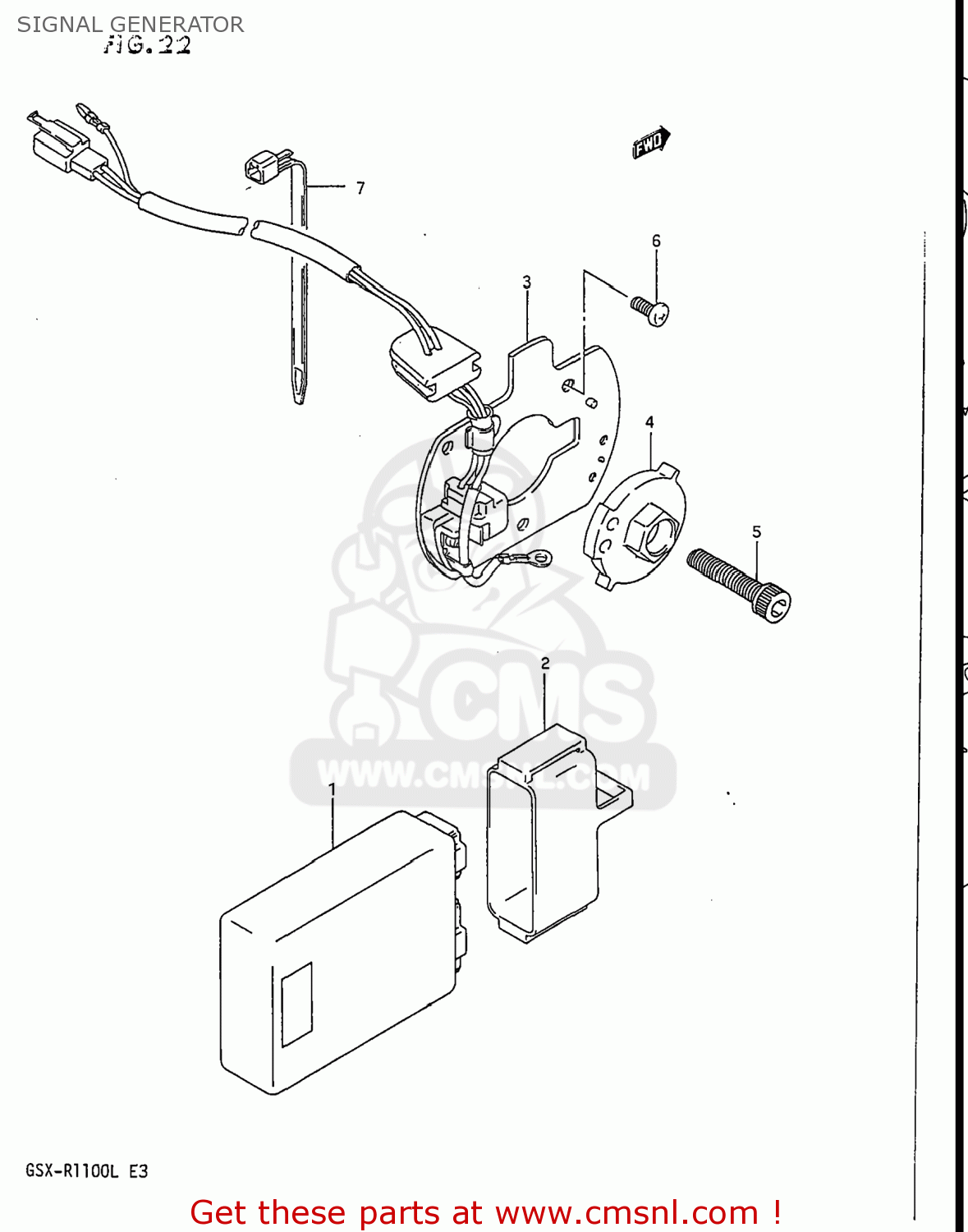

Signal generator diagram GSXR1100 1989 (K) USA (E03)

SIGNAL GENERATOR GSXR1100 1989 (K) USA (E03)

SIGNAL GENERATOR GSXR1100 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3290040C20
ref: 1-1

IGNITOR

€ 0.00

1-2

3290040C10
ref: 1-2

IGNITER

€ 323.00

2

3298040C00
ref: 2
32980-40C01

CUSHION,IGNITER

€ 9.50

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4-1

3312019C00
ref: 4-1
33120-19C20

ROTOR,SIGNAL

€ 182.00

4-2

3312048B20
ref: 4-2

ROTOR,SIGNAL

€ 115.50

5

0711008306
ref: 5
07130-0830A

BOLT

€ 3.00

6

0211205107
ref: 6

SCREW

€ 2.00

7

0940714403
ref: 7

CLAMP(L:125)

€ 2.50
