COWLING (MODEL L 3CG)
GSXR1100 1989 (K) USA (E03)

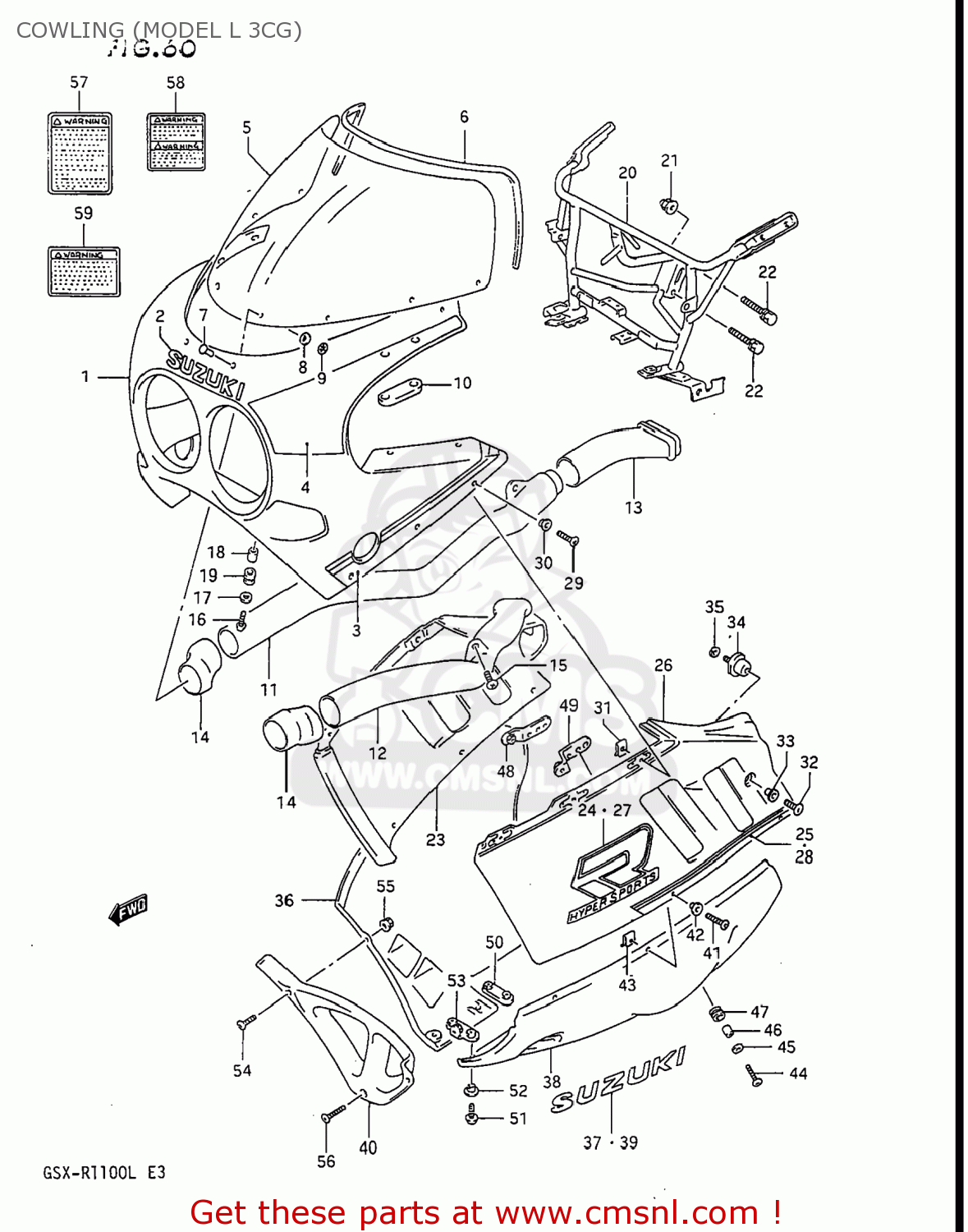

Cowling (model l 3cg) diagram GSXR1100 1989 (K) USA (E03)
COWLING (MODEL L 3CG) GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9440040C9133J
ref: 1
BODY ASSY,COWLING
€ 683.00
2
6818505C10742
ref: 2
EMBLEM,COWLING FR
€ 9.00
3
6827040C413CG
ref: 3
TAPE SET,COWLING,UPPER
€ 28.50
4
6828040C1017U
ref: 4
TAPE SET,COWLING,UPPER,FRONT
€ 37.00
5
9461040C21
ref: 5
SCREEN,WIND
€ 455.50
6
9463140C20
ref: 6
94631-18D01
MOLDING
€ 12.50
7
9461640C01
ref: 7
94616-10D00
PIN,WINDSCREEN
€ 2.50
8
0932004007
ref: 8
09320-04501
CUSHION
€ 3.00
9
0914804032
ref: 9
NUT
€ 2.50
10
9457612C00
ref: 10
CUSHION,RR VIEW MIRRORR
€ 4.50
11
9445140C00
ref: 11
PIPE,AIR INTAKE FR,R
€ 33.00
12
9445240C00
ref: 12
PIPE,AIR INTAKE,FRONT
€ 34.00
13
9445317C00
ref: 13
PIPE,AIR INTAKE RR,R
€ 23.50
14
9445440C00
ref: 14
JOINT,AIR INTAKE
€ 16.00
15
0214206205
ref: 15
02142-0620A
SCREW, CENTER
€ 2.00
16
0913906056
ref: 16
SCREW(6X20)
€ 3.00
17
0916006056
ref: 17
WASHER(6.5X18X1)
€ 2.00
18
0918006152
ref: 18
09180-06262
SPACER
€ 3.00
19
0932009016
ref: 19
CUSHION
€ 2.50
20
9451040C12
ref: 20
94510-40C13
BRACE,COWLING
€ 236.50
21
0831321085
ref: 21
08313-2008A
NUT ,8MM
€ 2.50
22
0113708355
ref: 22
01570-0835A
BOLT
€ 2.00
23
9443040C703CG
ref: 23
94430-40C71-3CG
COVER ASSEMBLY,COWLING
€ 209.00
24
6868140C102RM
ref: 24
EMBLEM,COWLING SIDE,R
€ 24.50
25
6868540C303CH
ref: 25
TAPE,COWLING SIDE,RIGHT
€ 17.00
26
9444040C703CG
ref: 26
COVER,COWLING SIDE,LEFT
€ 288.00
27
6869140C102RM
ref: 27
EMBLEM,COWLING SIDE,LEFT
€ 0.00
28
6869540C303CH
ref: 28
TAPE,COWLING SIDE,LEFT
€ 17.00
29
0913905032
ref: 29
SCREW(5X18)
€ 2.50
30
0916105017
ref: 30
WASHER(5.2X14X1.5)
€ 3.00
31
9448432B00
ref: 31
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
32
0913906027
ref: 32
SCREW(6X12)
€ 3.00
33
0916106021
ref: 33
WASHER(6.3X16X1.5)
€ 2.50
34
9457004A00
ref: 34
CUSHION,COWLING
€ 12.50
35
0832121064
ref: 35
08321-0106A
WASHER,LOCK
€ 2.00
36
9447041C013CH
ref: 36
94470-41C03-3CH
COWLING COMP,UNDER,RIGHT
€ 441.50
36
9447041C013CH
ref: 36
94470-41C03-3CH
COWLING COMP,UNDER,RIGHT
€ 441.50
37
6811134301742
ref: 37
68111-34320-13L
EMBLEM
€ 16.00
38
9448041C013CH
ref: 38
94480-17D00-13L
COWLING,UNDER,LEFT
€ 374.00
38
9448041C013CH
ref: 38
94480-17D00-13L
COWLING,UNDER,LEFT
€ 374.00
39
6818117D00742
ref: 39
EMBLEM,COWLING UNDER,L
€ 14.50
40
9449817D0033J
ref: 40
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
41
0913905032
ref: 41
SCREW(5X18)
€ 2.50
42
0916105017
ref: 42
WASHER(5.2X14X1.5)
€ 3.00
43
9448432B00
ref: 43
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
44
0913906028
ref: 44
SCREW(6X20)
€ 3.50
45
0916006056
ref: 45
WASHER(6.5X18X1)
€ 2.00
46
0918006152
ref: 46
09180-06262
SPACER
€ 3.00
47
0932009016
ref: 47
CUSHION
€ 2.50
48
9458017C01
ref: 48
94580-40C00
BRACKET
€ 6.00
49
9459017C01
ref: 49
94590-40C00
BRACE,COWLING UNDER,LH
€ 7.00
50
9449306B00
ref: 50
BRACE,COWLING LWR COVER RR
€ 4.00
51
0913906039
ref: 51
SCREW(6X16)
€ 2.50
52
0916106021
ref: 52
WASHER(6.3X16X1.5)
€ 2.50
53
9449006B00
ref: 53
BRACE,COWLING LWR COVER
€ 4.50
54
0913905025
ref: 54
SCREW(5X14)
€ 2.00
55
0831626055
ref: 55
08316-2005A
NUT
€ 2.00
56
0913906030
ref: 56
SCREW(6X16)
€ 3.50
57
6861248B00
ref: 57
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
58
6861340C11
ref: 58
68613-21E10
LABEL (WARNING)
€ 8.50
59
6831940C00
ref: 59
68319-33E01
LABEL
€ 8.00
