2ND AIR

GSXR600 2013 (L3) USA (E03)

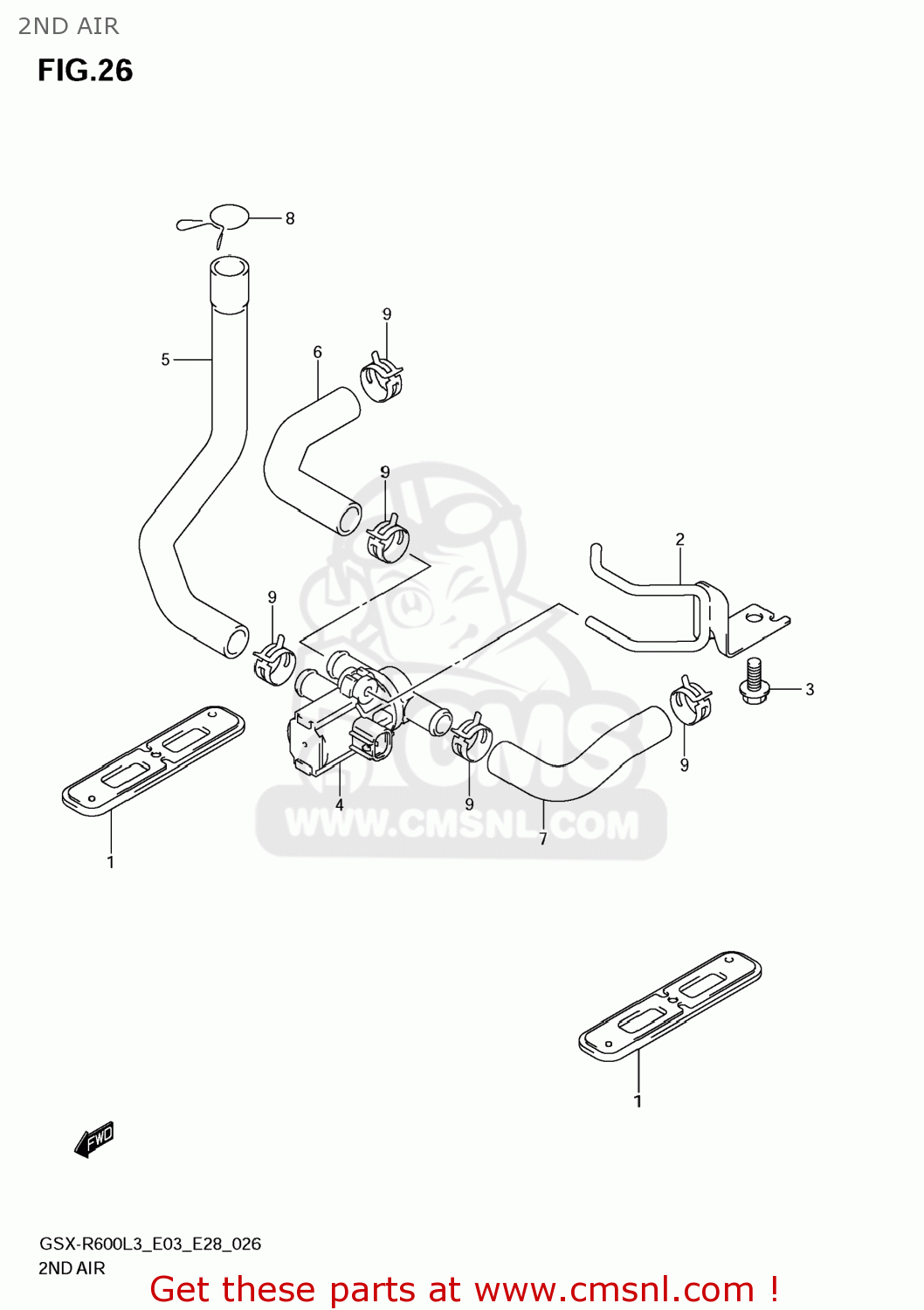

2nd air diagram GSXR600 2013 (L3) USA (E03)

2ND AIR GSXR600 2013 (L3) USA (E03)

2ND AIR GSXR600 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1845001H00
ref: 1

VALVE ASSY,2ND AIR REED

€ 36.50

2

1861014J00
ref: 2

BRACKET,2ND AIR VALVE

€ 11.50

3

015500616A
ref: 3

BOLT

€ 2.50

4

1851029G31
ref: 4

VALVE ASSY,AIR CUT

€ 63.00

5

1871114J00
ref: 5

HOSE,2ND AIR CLEANER

€ 17.00

6

1846114J00
ref: 6

HOSE,2ND AIR VALVE,R

€ 10.50

7

1847114J00
ref: 7

HOSE,2ND AIR VALVE,L

€ 11.00

8

0940117201
ref: 8

CLIP

€ 2.50

9

0940117401
ref: 9

CLIP

€ 2.00
