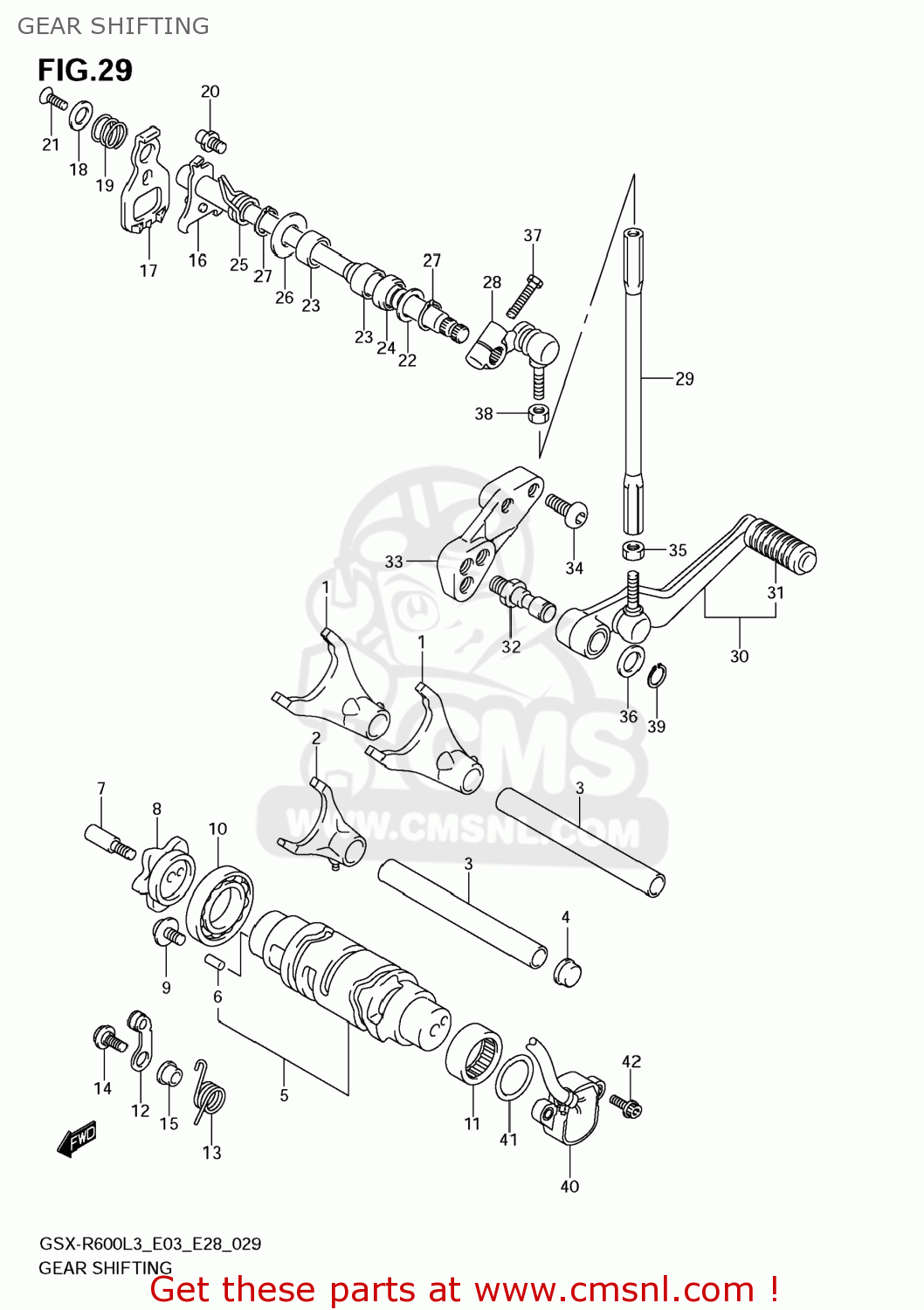

GEAR SHIFTING

ref

part #

description

quantity

1

2521101H01
ref: 1

FORK,GEAR SHIFT NO.1

€ 79.00

2

2523101H01
ref: 2

FORK,GEAR SHIFT NO.3

€ 80.50

3

2541135F00
ref: 3

SHAFT,GEAR SHIFT FORK NO.1

€ 19.50

4

2571237H00
ref: 4

PLUG,GEAR SHIFT FORK SHAFT

€ 5.00

5

2531001H00
ref: 5

CAM,GEAR SHIFT

€ 141.50

6

0422104089
ref: 6

PIN

€ 1.50

7

2531242F01
ref: 7

BOLT,GEAR SHIFT CAM PLATE

€ 6.00

8

2538113E30
ref: 8

PLATE,GEAR SHIFT CAM

€ 32.50

9

0913606147
ref: 9

SCREW(6X12)

€ 2.50

10

0926225006
ref: 10

BEARING(25X47X8)

€ 27.50

11

0926325018
ref: 11

BEARING(25X32X12)

€ 19.00

12

2535006G00
ref: 12

STOPPER,SHIFT CAM

€ 19.00

13

2535501H00
ref: 13

SPRING,GEAR SHIFT CAM STOPPER

€ 3.00

14

2535701H00
ref: 14

BOLT,SHIFT CAM STOPPER ARM

€ 2.50

15

2535801H00
ref: 15

SPACER,CAM STOPPER

€ 6.00

16

2551001H00
ref: 16

SHAFT,GEAR SHIFT

€ 83.50

17

2551206G10
ref: 17

PLATE,GEAR SHIFT CAM DRIVE

€ 21.50

18

2551901H00
ref: 18

WASHER,GEAR SHIFT SHAFT END

€ 3.50

19

2551801H00
ref: 19

SPRING,GEAR SHIFT PLATE RETURN

€ 2.50

20

2567101011
ref: 20

STOPPER,GEAR SHIFT ARM

€ 3.50

21

0912606014
ref: 21

SCREW(6X16)

€ 2.50

22

0916014016
ref: 22

WASHER(14X29X0.8)

€ 2.00

23

0926314027
ref: 23

BEARING(14X20X12)

€ 12.00

24

0928314005
ref: 24

SEAL,OIL(14X22X7.3)

€ 6.50

25

0944420001
ref: 25

SPRING

€ 6.00

26

0918114195
ref: 26

SHIM(14X24X1)

€ 2.00

27

083313114A
ref: 27

CIRCLIP

€ 2.00

28

2552001H00
ref: 28

ARM,GEAR SHIFT LINK

€ 68.00

29

2552501H00
ref: 29

ROD,GEAR SHIFT LINK

€ 35.00

30

2560014J00
ref: 30

LEVER ASSY,GEAR SHIFT

€ 104.50

31

2565220C00
ref: 31

RUBBER,GEAR SHIFT PEDAL

€ 8.50

32

2561703F10
ref: 32

SHAFT,GEAR SHIFT LEVER

€ 11.50

33

2568114J00
ref: 33

BRACKET,GEAR SHIFT LEVER

€ 40.50

34

0910608167
ref: 34

BOLT(8X20)

€ 4.00

35

0914006025
ref: 35

NUT

€ 2.00

36

0916012011
ref: 36

WASHER(12.5X20X1)

€ 1.50

37

015000625A
ref: 37

BOLT

€ 3.00

38

0831000067
ref: 38

NUT

€ 2.50

39

083313112A
ref: 39

CIRCLIP

€ 2.00

40

3773014J00
ref: 40

SENSOR ASSY,GEAR POSITION

€ 93.00

41

0928026005
ref: 41

O RING(D:2.4,ID:26.2)

€ 3.00

42

0910605023
ref: 42

BOLT(5X16)

€ 3.00
