OIL PAN - OIL PUMP
GSXR600 2013 (L3) USA (E03)

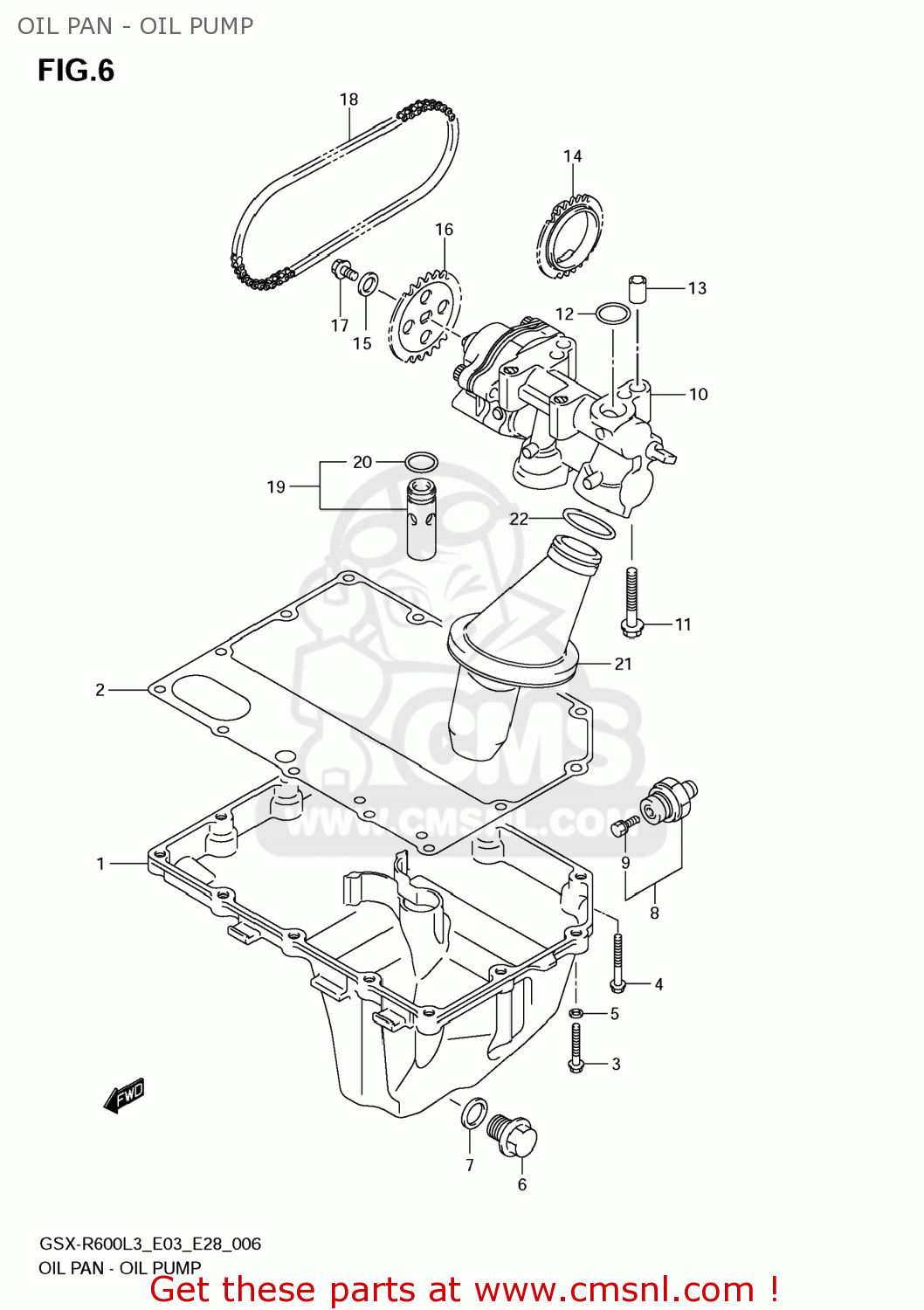

Oil pan - oil pump diagram GSXR600 2013 (L3) USA (E03)
OIL PAN - OIL PUMP GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151101H00
ref: 1
PAN,OIL
€ 182.00
2
1148901H01
ref: 2
GASKET,OIL PAN(ASB) (NAS)
€ 14.00
3
015470625A
ref: 3
BOLT
€ 2.50
4
0910306204
ref: 4
BOLT(6X30)
€ 3.50
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
€ 2.00
6
0924714036
ref: 6
PLUG(14X20)
€ 5.50
7
0916814002
ref: 7
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
8
3782033D10
ref: 8
SWITCH ASSY,OIL PRESSURE
€ 29.00
9
3782233D00
ref: 9
BOLT,OIL PRESSURE SWITCH
€ 3.00
10
1640001H00
ref: 10
PUMP ASSY,ENGINE OIL
€ 182.00
11
015470635A
ref: 11
BOLT
€ 3.00
12
0928015007
ref: 12
O RING(D:2.4,ID:15.8)
€ 2.00
13
0421109149
ref: 13
PIN
€ 2.00
14
1632101H00
ref: 14
SPROCKET,OIL PUMP DRIVE
€ 42.50
15
0918110158
ref: 15
SHIM(10X18X0.5)
€ 2.50
16
1633101H00
ref: 16
SPROCKET,OIL PUMP DRIVEN
€ 13.00
17
0910306285
ref: 17
BOLT(6X12)
€ 2.50
18
1631001H00
ref: 18
CHAIN,OIL PUMP DRIVE
€ 19.50
19
1644024F00
ref: 19
VALVE ASSY,OIL RELIEF(7K)
€ 41.50
20
0928013004
ref: 20
O RING(D:1.9,ID:13)
€ 2.50
21
1652001H00
ref: 21
STRAINER ASSY,ENGINE OIL
€ 21.00
22
0928025004
ref: 22
O RING(D:2.4,ID:24.7)
€ 2.00
