FRAME (GSX-R600L3 E28)
GSXR600 2013 (L3) USA (E03)

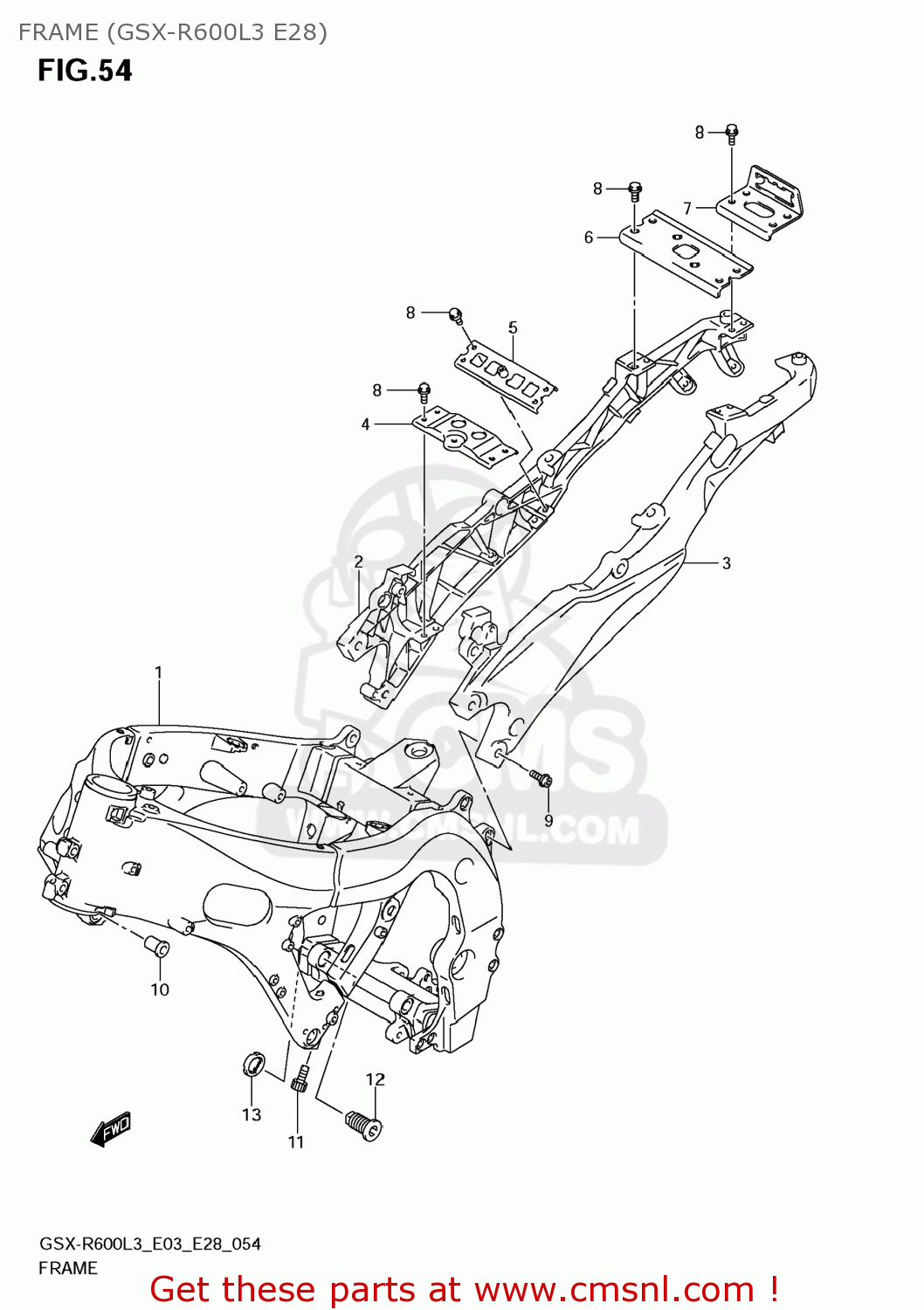

Frame (gsx-r600l3 e28) diagram GSXR600 2013 (L3) USA (E03)
FRAME (GSX-R600L3 E28) GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110014J00YAP
ref: 1
41100-15J00-YAP
FRAME(BLACK)
€ 3,520.00
2
4121114J00YUG
ref: 2
RAIL,SEAT,R(BLACK)
€ 160.50
3
4122114J00YUG
ref: 3
RAIL,SEAT,L(BLACK)
€ 160.50
4
4177001H00
ref: 4
BRIDGE,SEAT RAIL FR
€ 25.50
5
4274037H00
ref: 5
BRIDGE,SEAT RAIL LWR
€ 17.50
6
4273014J00
ref: 6
BRIDGE,SEAT RAIL UPR
€ 17.50
7
4275114J00
ref: 7
BRIDGE,SEAT RAIL RR
€ 8.50
8
0910306285
ref: 8
BOLT(6X12)
€ 2.50
9
4123318G20
ref: 9
BOLT,SEAT RAIL
€ 7.50
10
4191140F01
ref: 10
SPACER,ENGINE MOUNTING
€ 16.50
11
0910608185
ref: 11
BOLT(8X32)
€ 2.00
12
4192135F00
ref: 12
BOLT,CRANK CASE ADJUST
€ 35.00
13
4192218G00
ref: 13
NUT,ADJUST BOLT
€ 23.50
