STAND

GSXR600 2013 (L3) USA (E03)

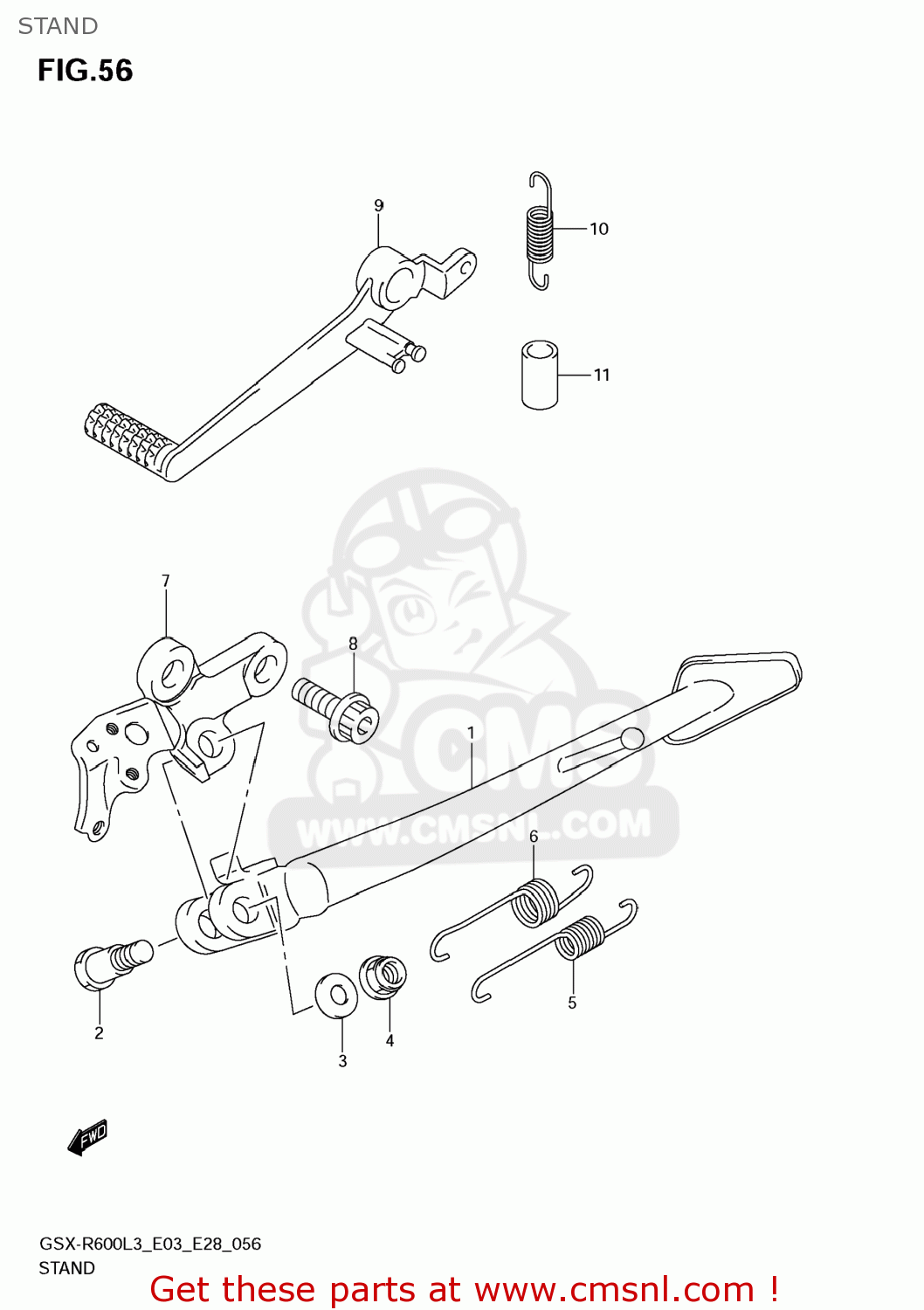

Stand diagram GSXR600 2013 (L3) USA (E03)

STAND GSXR600 2013 (L3) USA (E03)

STAND GSXR600 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231014J00
ref: 1

STAND,PROP

€ 116.50

2

4241147H00
ref: 2

BOLT,PROP STAND

€ 9.00

3

0918116214
ref: 3

SHIM(16X28X0.5)

€ 1.50

4

0915910103
ref: 4

NUT

€ 3.00

5

0944314070
ref: 5

SPRING

€ 5.00

6

0944319016
ref: 6

SPRING

€ 5.50

7

4233014J01
ref: 7

BRACKET,PROP STAND

€ 80.50

8

0910610064
ref: 8

BOLT(10X28)

€ 4.50

9

4311041G00
ref: 9

PEDAL,BRAKE

€ 100.50

10

0944311033
ref: 10

SPRING

€ 4.50

11

0935211153600
ref: 11

HOSE(11X15X600)

€ 13.50
