FUEL PUMP
GSXR600 2013 (L3) USA (E03)

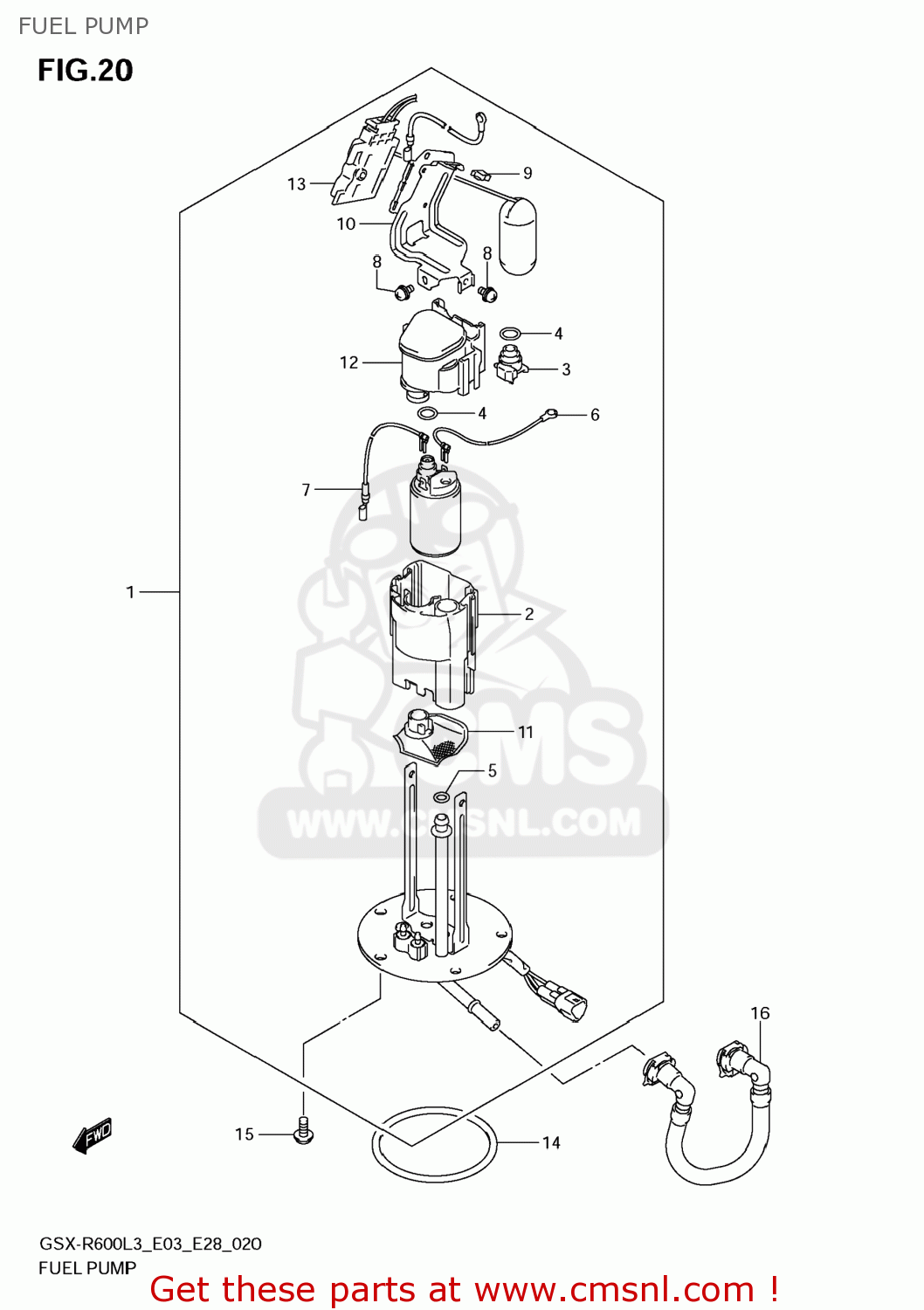

Fuel pump diagram GSXR600 2013 (L3) USA (E03)
FUEL PUMP GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510014J00
ref: 1
PUMP ASSY,FUEL
€ 590.00
2
1511127G00
ref: 2
CUP
€ 25.00
3
1511205H00
ref: 3
JOINT
€ 17.00
4
1511305H00
ref: 4
O RING
€ 17.00
5
1511335F00
ref: 5
O RING
€ 7.50
6
1511414J00
ref: 6
WIRE,EARTH
€ 16.00
7
1511514J00
ref: 7
WIRE,LEAD
€ 16.50
8
1511610F00
ref: 8
SCREW
€ 3.50
9
1511923H00
ref: 9
SADDLE,EDGE
€ 7.50
10
1518114J00
ref: 10
BRACKET,GAUGE
€ 18.00
11
1542005H00
ref: 11
STRAINER
€ 20.50
12
1561014J00
ref: 12
REGULATOR,FUEL
€ 123.00
13
3481014J00
ref: 13
GAUGE ASSY,FUEL LEVEL
€ 138.00
14
1520135F00
ref: 14
O RING,FUEL PUMP
€ 26.00
15
071200612A
ref: 15
BOLT
€ 3.50
16
1581014J00
ref: 16
HOSE,FUEL
€ 45.50
