AIR CLEANER
GSXR600 2013 (L3) USA (E03)

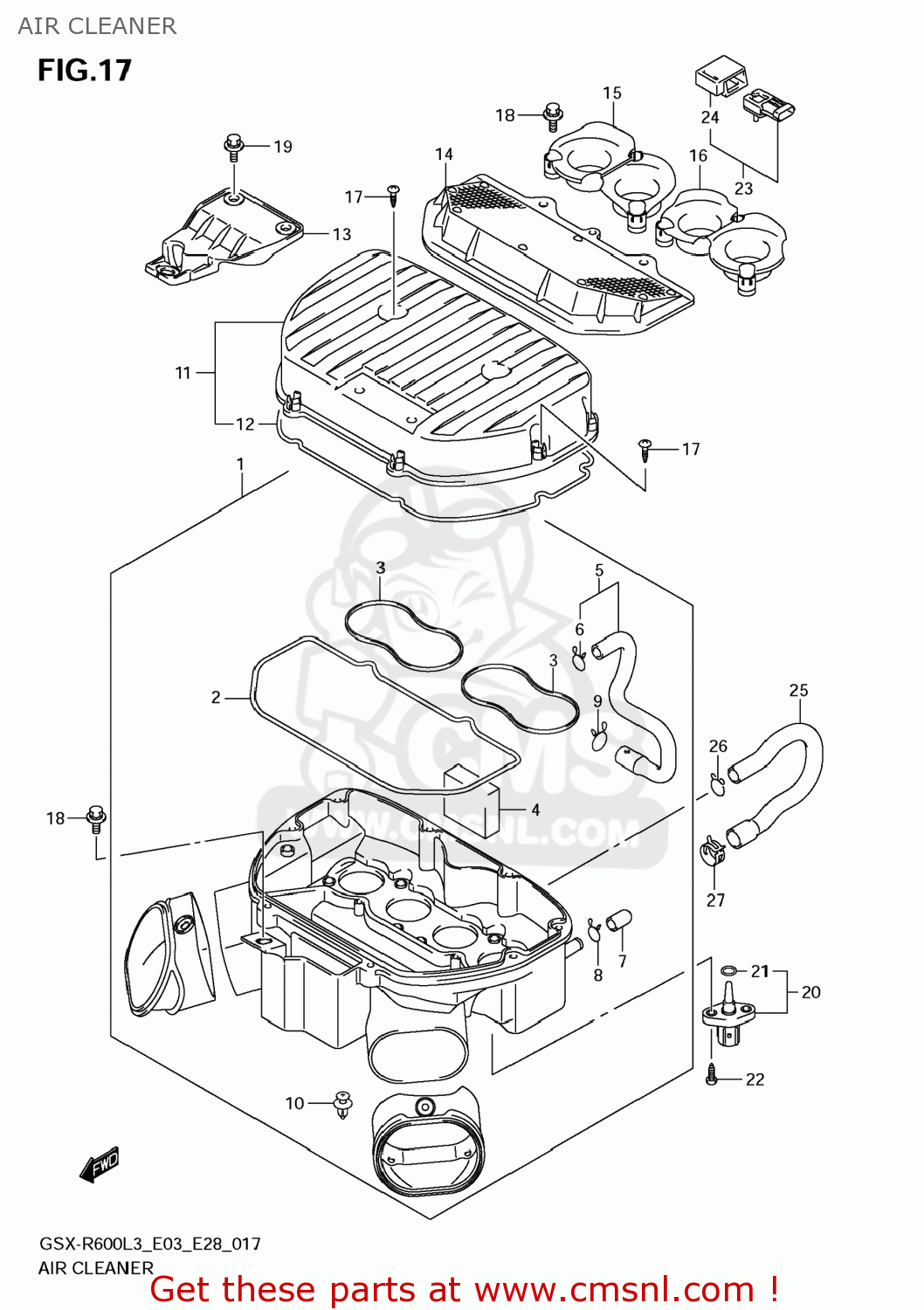

Air cleaner diagram GSXR600 2013 (L3) USA (E03)
AIR CLEANER GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1372014J00
ref: 1
CASE,AIR CLEANER
€ 127.50
2
1375614J00
ref: 2
GASKET,CASE (NAS)
€ 3.50
3
1375714J00
ref: 3
GASKET,CASE (NAS)
€ 4.50
4
1378814J00
ref: 4
FILTER,BREATHER
€ 4.00
5
1385014J00
ref: 5
TUBE,BREATHER
€ 14.00
6
0940115101
ref: 6
CLIP
€ 2.00
7
1387810G00
ref: 7
PLUG
€ 3.00
8
0940114301
ref: 8
CLIP
€ 2.00
9
0940117201
ref: 9
CLIP
€ 2.50
10
09409073055PK
ref: 10
CLIP(BLACK)
€ 1.50
11
1374014J00
ref: 11
CAP,AIR CLEANER
€ 41.50
12
1374614J00
ref: 12
GASKET,CAP (NAS)
€ 8.50
13
1376014J00
ref: 13
HOLDER,AIR CLEANER
€ 12.00
14
1378014J00
ref: 14
FILTER ASSY
€ 27.50
15
1388114J00
ref: 15
FUNNEL,OUTLET,R
€ 16.50
16
1388214J00
ref: 16
FUNNEL,OUTLET,L
€ 16.50
17
035410520A
ref: 17
SCREW
€ 2.50
18
1383147H00
ref: 18
BOLT,AIR CLEANER CASE
€ 6.50
19
0911106089
ref: 19
BOLT(6X16)
€ 2.50
20
1365014G11
ref: 20
SENSOR,AIR TEM
€ 34.50
21
1365514G10
ref: 21
O RING
€ 6.00
22
035110516A
ref: 22
SCREW
€ 2.50
23
1563029G10
ref: 23
SENSOR,AIR PRESSURE
€ 180.50
24
1562529G00
ref: 24
COVER
€ 7.50
25
1369714J00
ref: 25
HOSE
€ 13.00
26
0940115101
ref: 26
CLIP
€ 2.00
27
0940117401
ref: 27
CLIP
€ 2.00
