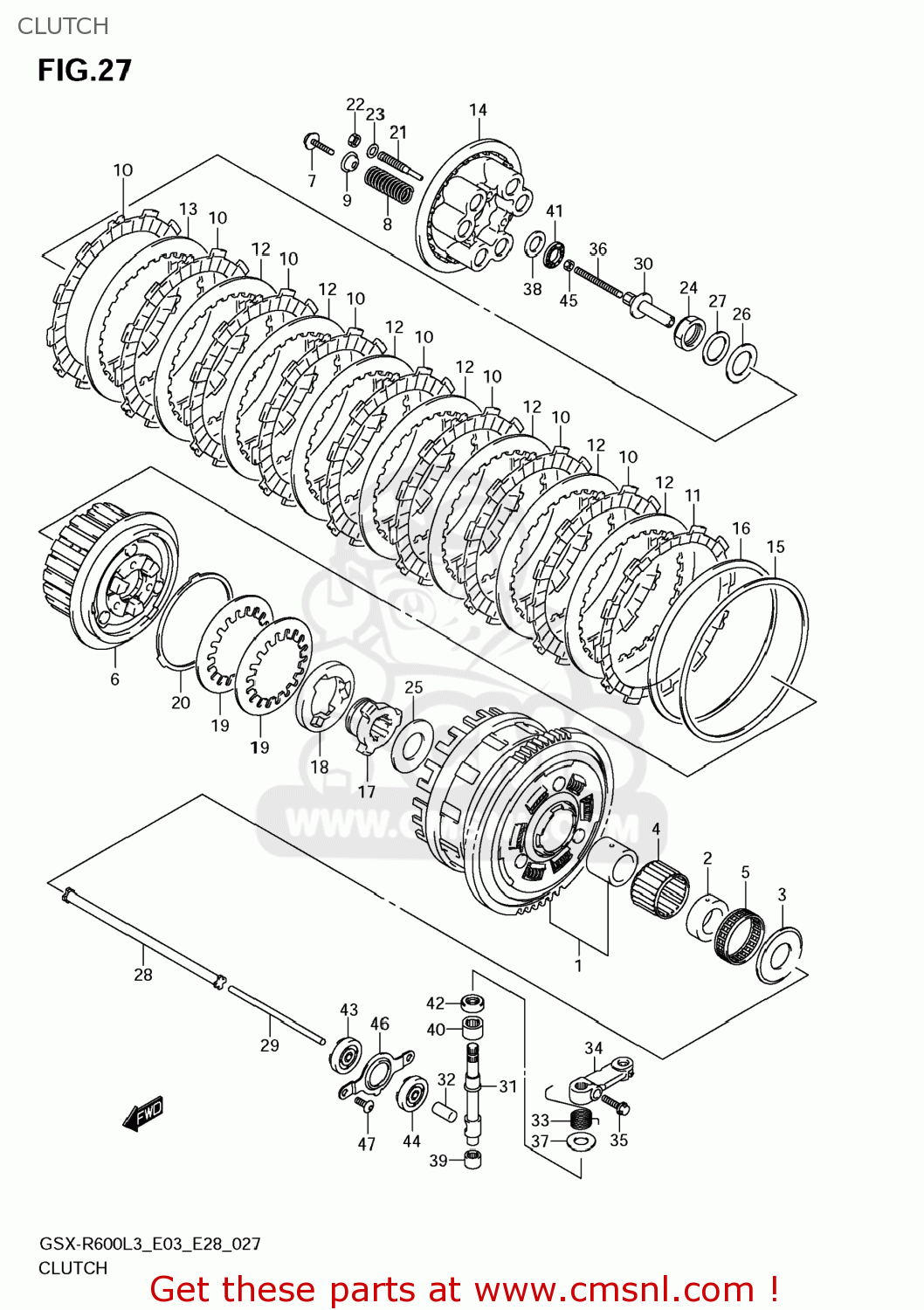

CLUTCH

ref

part #

description

quantity

1

2120001830
ref: 1

GEAR SET,PRI DRIVEN

€ 357.00

1

2120001830
ref: 1

GEAR SET,PRI DRIVEN

€ 357.00

2

2125301H10
ref: 2

SPACER,OIL PUMP DRIVE SPROCKET

€ 21.50

3

0916025073
ref: 3

WASHER(25X54X2.4)

€ 8.50

4

0926335015
ref: 4

BEARING(35X40X26.8)

€ 20.00

5

0926335045
ref: 5

BEARING(35X40X12)

€ 11.50

6

2141041G30
ref: 6

HUB,CLUTCH SLEEVE

€ 156.50

7

2141206G00
ref: 7

BOLT,CLUTCH SPRING

€ 3.00

8

2141301H10
ref: 8

SPRING,CLUTCH

€ 6.00

9

2141429F00
ref: 9

WASHER

€ 4.50

10

2144136F50
ref: 10

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 13.50

10

2144136F50
ref: 10

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 13.50

11

2144241G00
ref: 11

PLATE,CLUTCH DRIVE NO.3 (NAS)

€ 14.50

12

2145141G10
ref: 12

PLATE,CLUTCH DRIVEN (NAS)

€ 7.50

12

2145141G10
ref: 12

PLATE,CLUTCH DRIVEN (NAS)

€ 7.50

13

2145141G30
ref: 13

PLATE,CLUTCH DRIVEN (NAS)

€ 7.00

13

2145141G30
ref: 13

PLATE,CLUTCH DRIVEN (NAS)

€ 7.00

14

2146241G00
ref: 14

DISC,CLUTCH PRESSURE

€ 43.50

15

2147141G00
ref: 15

SEAT,WAVE WASHER

€ 12.00

16

2147241G20
ref: 16

WASHER,CLUTCH PLATE WAVE

€ 17.00

17

2161141G30
ref: 17

CAM,CLUTCH DRIVE

€ 91.50

18

2161241G10
ref: 18

CAM,CLUTCH DRIVEN

€ 77.00

19

2162141G00
ref: 19

WASHER,CAM REACTION WAVE

€ 12.00

20

2162441G00
ref: 20

WASHER,CAM REACTION SEAT

€ 10.50

21

2162241G00
ref: 21

LIFTER,CLUTCH PRESSURE DISC

€ 8.00

22

2162341G00
ref: 22

NUT,CL PRESS DISC LIFTER LOCK

€ 2.00

23

0918108139
ref: 23

SHIM(8.8X14X1)

€ 1.50

24

0915924010
ref: 24

NUT

€ 11.00

25

0916025056
ref: 25

WASHER(25X50X2.5)

€ 9.50

26

0916424008
ref: 26

WASHER

€ 3.00

27

0916025077
ref: 27

WASHER(25X41X2.5)

€ 6.50

28

2311038B00
ref: 28

ROD,CLUTCH PUSH,R

€ 19.00

29

2311135F00
ref: 29

ROD,CLUTCH PUSH,L

€ 11.50

30

2312141G00
ref: 30

PIECE,CLUTCH PUSH

€ 33.00

31

2312241G10
ref: 31

CAMSHAFT,CLUTCH RELEASE

€ 41.00

32

2312341G00
ref: 32

CAP,CLUTCH PUSH ROD

€ 9.00

33

2312541G00
ref: 33

SPRING,CLUTCH RELEASE RETURN

€ 3.00

34

2327141G20
ref: 34

ARM,CLUTCH REL

€ 51.00

35

0910306223
ref: 35

BOLT(6X20)

€ 2.50

36

0913406015
ref: 36

SCREW(6X73)

€ 5.50

37

0916010020
ref: 37

WASHER(10.5X24X1)

€ 2.00

38

0916015045
ref: 38

WASHER(15.5X28X1)

€ 4.00

39

0926310014
ref: 39

BEARING(10X14X10)

€ 12.00

40

0926312027
ref: 40

BEARING(12X18X12)

€ 6.00

41

0926315003
ref: 41

BEARING(15X28X2)

€ 7.00

42

0928210012
ref: 42

SEAL,OIL(10X20X6)

€ 7.50

43

0928306010
ref: 43

SEAL,OIL(6X34X10.5)

€ 14.00

44

0928510004
ref: 44

SEAL,OIL(10X17X5)

€ 3.50

45

083100006A
ref: 45

NUT

€ 2.00

46

2474101H00
ref: 46

RETAINER,CL PUSH ROD OIL SEAL

€ 5.00

47

0913906153
ref: 47

SCREW(6X13)

€ 2.00
