REAR COMBINATION LAMP (GSX-R600L3 E03)

GSXR600 2013 (L3) USA (E03)

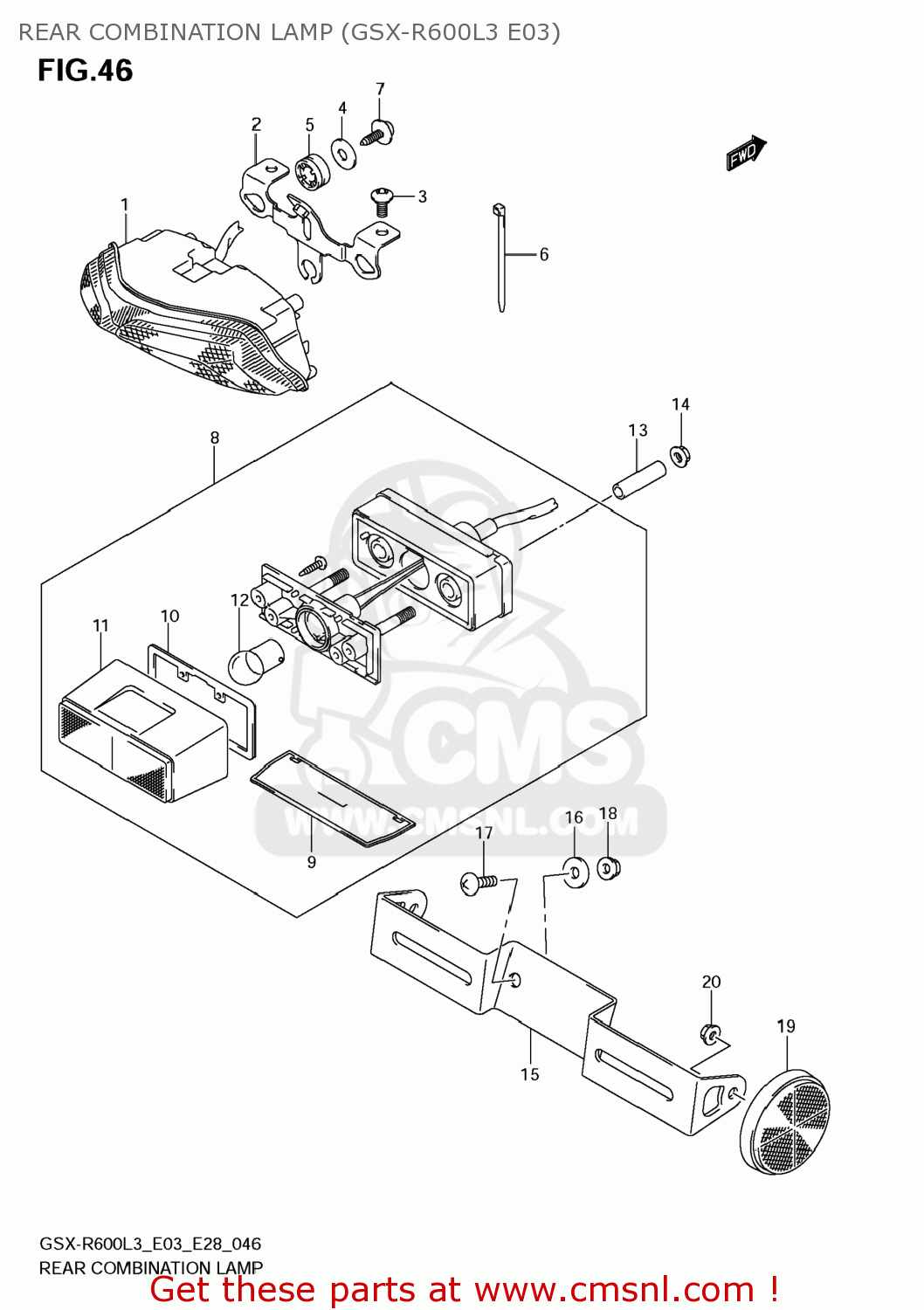

Rear combination lamp (gsx-r600l3 e03) diagram GSXR600 2013 (L3) USA (E03)

REAR COMBINATION LAMP (GSX-R600L3 E03) GSXR600 2013 (L3) USA (E03)
REAR COMBINATION LAMP (GSX-R600L3 E03) GSXR600 2013 (L3) USA (E03)
REAR COMBINATION LAMP (GSX-R600L3 E03) GSXR600 2013 (L3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3571014JA0
ref: 1
LAMP ASSY,RR COMBINATION
€ 145.50
2
3572614J00
ref: 2
BRACKET,RR COMBINATION LAMP
€ 7.50
3
0913905074
ref: 3
BOLT(5X13)
0913905074
€ 3.00
4
0916005501
ref: 4
WASHER(5.5X20X1.2)
0916005501
€ 2.00
5
0932010049
ref: 5
CUSHION
0932010049
€ 2.00
6
0940710404
ref: 6
CLAMP(L:100)
0940710404
€ 4.00
7
035410516A
ref: 7
SCREW
035410516A
€ 1.50
8
3591041G31
ref: 8
LAMP ASSY,LICENSE
€ 62.50
9
3591241G01
ref: 9
LENS,LICENSE LAMP
3591241G01
€ 19.50
10
3591341G00
ref: 10
GASKET (NAS)
€ 19.00
11
3591741G00
ref: 11
COVER,LICENSE LAMP
3591741G00
€ 27.00
12
0947112140
ref: 12
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
13
0918006356
ref: 13
SPACER(6.5X9X34)
€ 3.00
14
0915906096
ref: 14
NUT
€ 2.00
15
3592714J30
ref: 15
BRACKET,LICENSE PLATE
€ 9.00
16
0916006077
ref: 16
WASHER(6.5X20X1.2)
0916006077
€ 2.00
17
021420616A
ref: 17
SCREW
021420616A
€ 2.50
18
083161006A
ref: 18
NUT
083161006A
€ 2.50
19
3597014A20
ref: 19
REFLECTOR ASSY,RR SIDE
3597014A20
€ 11.00
20
083161005A
ref: 20
NUT
083161005A
€ 2.50
