SEAT
GSXR600 2013 (L3) USA (E03)

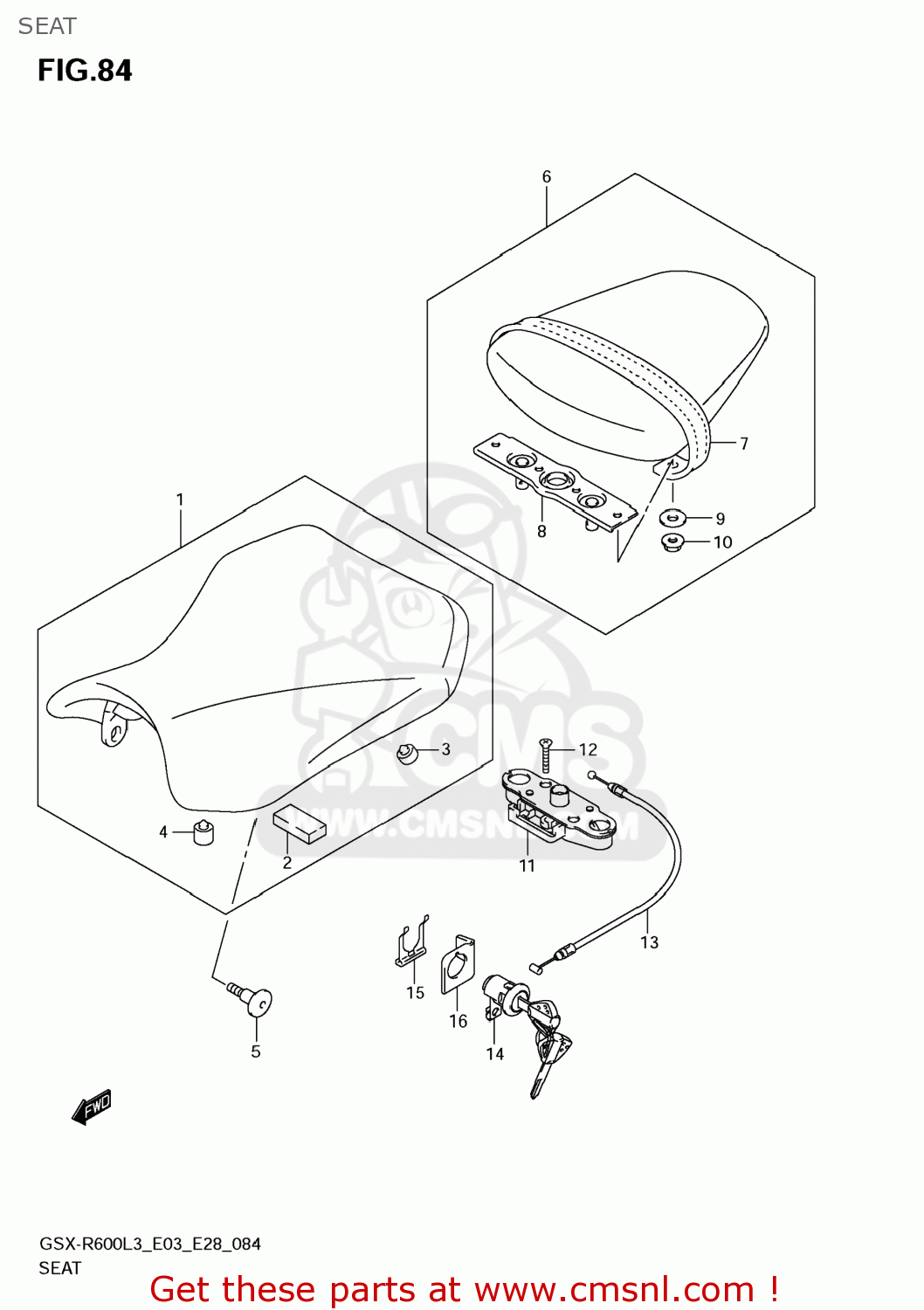

Seat diagram GSXR600 2013 (L3) USA (E03)
SEAT GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510014J10DW2
ref: 1
SEAT ASSY
€ 135.00
2
4514937H00
ref: 2
CUSHION
€ 3.00
3
0932110011
ref: 3
CUSHION
€ 3.00
4
0932110034
ref: 4
CUSHION
€ 6.50
5
0913906193
ref: 5
SCREW(6X20)
€ 3.00
6
4530014J10P3H
ref: 6
SEAT ASSY,PILLION
€ 115.00
7
4518014J10P3H
ref: 7
BAND ASSY,SEAT
€ 18.50
8
4529047H01
ref: 8
STRIKER
€ 16.00
9
0916006088
ref: 9
WASHER(6.5X20X1.6)
€ 2.00
10
083161006A
ref: 10
NUT
€ 2.50
11
4522047H00
ref: 11
BRACKET,SEAT SUPPORT
€ 79.50
12
021220630A
ref: 12
SCREW
€ 1.50
13
4528014J00
ref: 13
CABLE,SEAT LOCK
€ 10.50
14
9570014810
ref: 14
LOCK SET,SEAT
€ 75.50
15
4528911F00
ref: 15
PLATE,SEAT LOCK ASSY
€ 3.00
16
4528814F00
ref: 16
GUIDE,SEAT LOCK CABLE
€ 3.00
