CRANKSHAFT
GSXR600 2013 (L3) USA (E03)

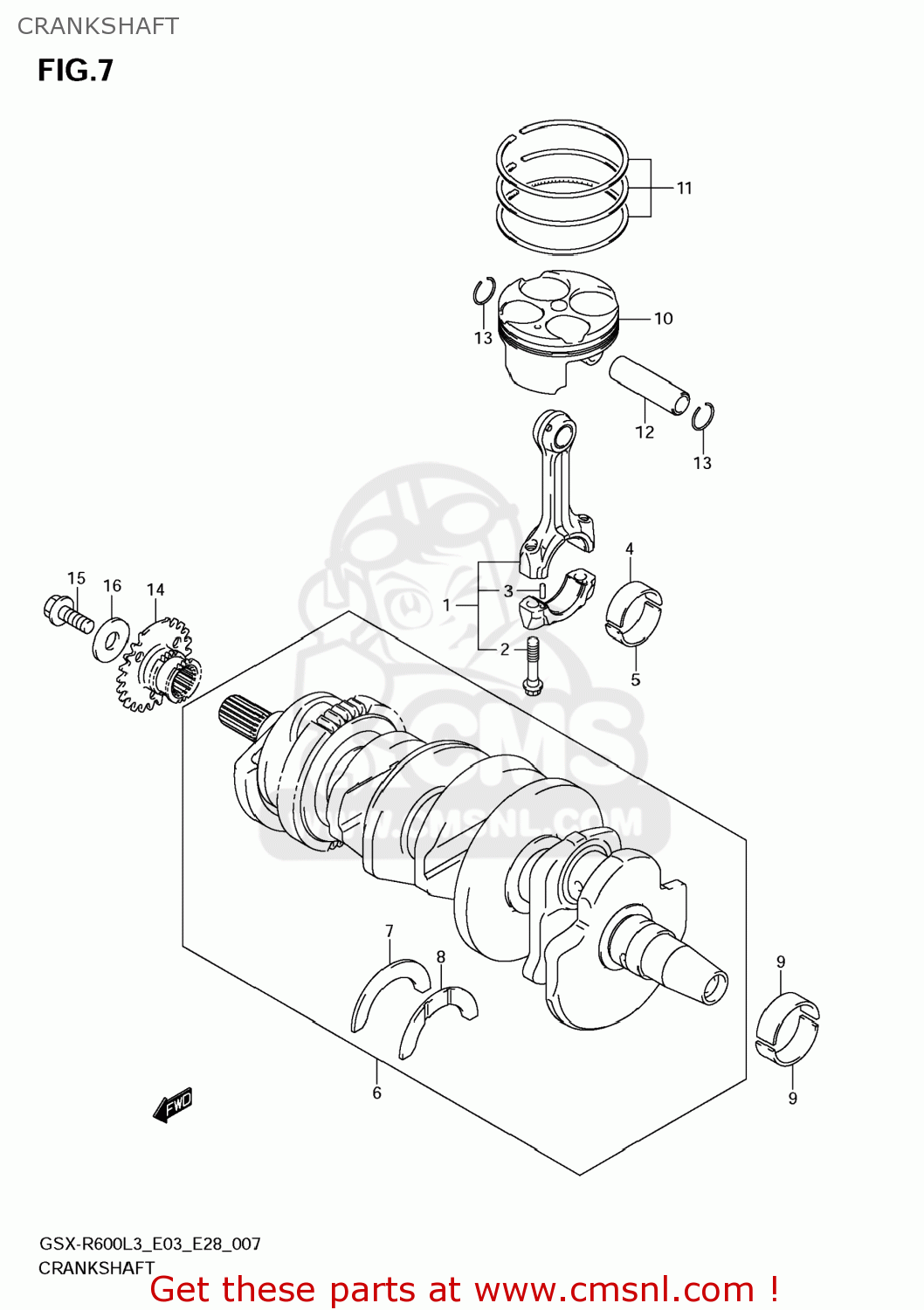

Crankshaft diagram GSXR600 2013 (L3) USA (E03)
CRANKSHAFT GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216014J10
ref: 1
CONNECTING ROD ASSY
€ 160.00
2
1216335F00
ref: 2
BOLT,CONNECTING ROD
€ 9.50
3
0422104089
ref: 3
PIN
€ 1.50
4-1
1216414J000A0
ref: 4-1
BEARING,CRANK PIN
€ 35.00
4-2
1216414J000B0
ref: 4-2
BEARING,CRANK PIN
€ 44.00
4-3
1216414J000C0
ref: 4-3
BEARING,CRANK PIN
€ 36.50
4-4
1216414J000D0
ref: 4-4
BEARING,CRANK PIN
€ 36.50
5-1
1216429G000A0
ref: 5-1
BEARING,CRANK PIN
€ 12.00
5-2
1216429G000B0
ref: 5-2
BEARING,CRANK PIN
€ 13.00
5-3
1216429G000C0
ref: 5-3
BEARING,CRANK PIN
€ 12.00
5-4
1216429G000D0
ref: 5-4
BEARING,CRANK PIN
€ 12.00
6
1200001820
ref: 6
CRANKSHAFT SET
€ 1,451.00
7
1222817E000D0
ref: 7
BEARING,CRANK THRUST(GREEN)
€ 9.00
8-1
1222817E000A0
ref: 8-1
BEARING,CRANK THRUST(RED)
€ 8.50
8-2
1222817E000B0
ref: 8-2
BEARING,CRANK THRUST(BLACK)
€ 8.50
8-3
1222817E000C0
ref: 8-3
BEARING,CRANK THRUST(BLUE)
€ 8.50
8-4
1222817E000D0
ref: 8-4
BEARING,CRANK THRUST(GREEN)
€ 9.00
8-5
1222817E000E0
ref: 8-5
BEARING,CRANK THRUST(YELLOW)
€ 8.50
8-6
1222817E000F0
ref: 8-6
BEARING,CRANK THRUST(WHITE)
€ 8.50
9-1
1222901H000A0
ref: 9-1
BEARING,CRANKSHAFT
€ 17.00
9-2
1222901H000B0
ref: 9-2
BEARING,CRANKSHAFT
€ 15.50
9-3
1222901H000C0
ref: 9-3
BEARING,CRANKSHAFT
€ 15.50
9-4
1222901H000D0
ref: 9-4
BEARING,CRANKSHAFT
€ 16.00
9-5
1222901H000E0
ref: 9-5
BEARING,CRANKSHAFT
€ 16.50
10
1211114J000F0
ref: 10
PISTON
€ 100.50
11
1214029G20
ref: 11
RING SET,PISTON
€ 64.00
12
1215114J00
ref: 12
PIN,PISTON
€ 12.50
13
0938114001
ref: 13
RING,SNAP 14MM
€ 2.00
14
1273101H00
ref: 14
SPROCKET,CAM CHAIN DRIVE
€ 86.00
15
0910310189
ref: 15
BOLT(10X23)
€ 4.50
16
0821110285
ref: 16
WASHER
€ 3.00
