FUEL TANK (GSX-R600L3 E28)
GSXR600 2013 (L3) USA (E03)

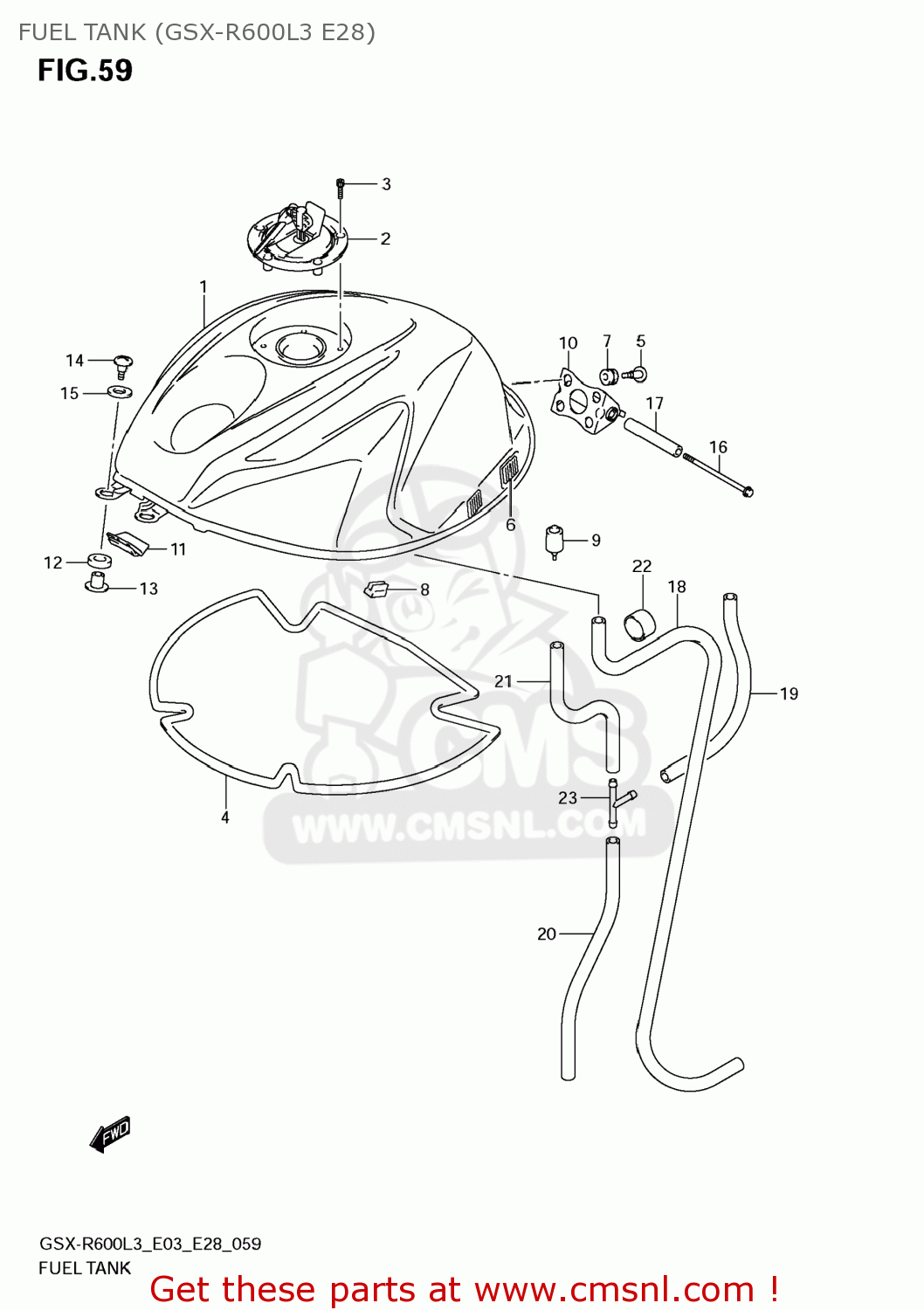

Fuel tank (gsx-r600l3 e28) diagram GSXR600 2013 (L3) USA (E03)
FUEL TANK (GSX-R600L3 E28) GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410014J32YSF
ref: 1-1
TANK ASSY,FUEL(BLUE)
€ 736.50
1-2
4410014J32YVZ
ref: 1-2
TANK ASSY,FUEL(RED)
€ 747.50
1-3
4410014J32YWW
ref: 1-3
TANK ASSY,FUEL(WHITE)
€ 468.00
2
4420016850
ref: 2
CAP SET,FUEL TANK
€ 155.50
3
0910605017
ref: 3
BOLT(5X20)
€ 3.00
4
4419114J00
ref: 4
SHIELD,FUEL TANK HEAT
€ 61.00
5
4454314J00
ref: 5
SCREW,FUEL TANK RR BRACKET
€ 4.50
6
4457213G00
ref: 6
FASTENER
€ 6.00
7
0932008071
ref: 7
CUSHION
€ 3.50
8
4427621H00
ref: 8
CUSHION,FUEL TANK COVER
€ 6.00
9
4454241G00
ref: 9
CUSHION,FUEL TANK RR
€ 7.00
10
4453041G00
ref: 10
BRACKET,FUEL TANK NO.1
€ 21.50
11
4454644H00
ref: 11
RUBBER,FUEL TANK FR
€ 8.50
12
4451116G00
ref: 12
CUSHION,FUEL TANK FR
€ 4.00
13
4451216G00
ref: 13
SPACER,FUEL TANK FR
€ 6.50
14
0913906192
ref: 14
SCREW(6X25)
€ 3.00
15
0916006012
ref: 15
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
16
0910606119
ref: 16
BOLT(6X110)
€ 5.50
17
4456118G00
ref: 17
SPACER,FUEL TANK RR
€ 14.00
18
4442314J00
ref: 18
HOSE,FUEL TANK WATER DRAIN
€ 14.50
19
4442414J00
ref: 19
HOSE,FUEL TANK BREATHER NO.1
€ 6.50
20
4442414J10
ref: 20
HOSE,FUEL TANK BREATHER NO.2
€ 6.50
21
4442509E00
ref: 21
HOSE,VACUUM
€ 10.00
22
0935212163600
ref: 22
HOSE(12X16X600)
€ 24.50
23
0936706007
ref: 23
3 WAY
€ 2.50
