MUFFLER
GSXR600 2013 (L3) USA (E03)

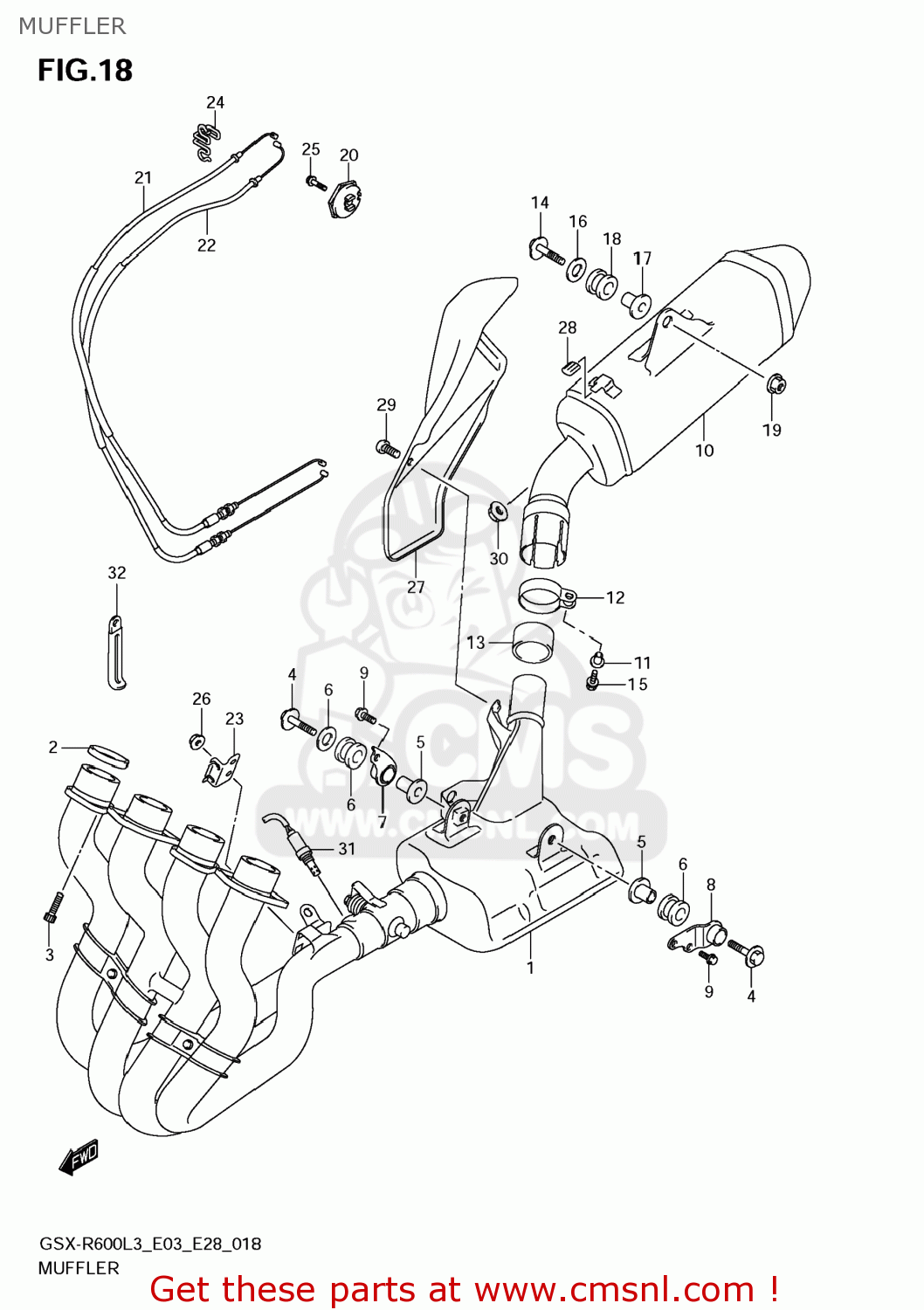

Muffler diagram GSXR600 2013 (L3) USA (E03)
MUFFLER GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410014J00
ref: 1
EXHAUST
€ 1,192.00
2
1418146E00
ref: 2
GASKET,EXHAUST PIPE
€ 6.50
3
0910608165
ref: 3
BOLT(8X25)
€ 5.00
4
0911808152A05
ref: 4
BOLT(8X45)
€ 5.00
5
0918008152
ref: 5
SPACER(8.6X12X24.2)
€ 6.00
6
0932012077
ref: 6
CUSHION
€ 6.50
7
1477014J00
ref: 7
BRACKET,CHAMBER SPRT,R
€ 8.00
8
1477314J00
ref: 8
BRACKET,CHAMBER SPRT,L
€ 15.00
9
015500816A
ref: 9
BOLT
€ 2.50
10
1431014J00H01
ref: 10
BODY,MUFFLER
€ 1,071.50
11
1445814J00
ref: 11
SPACER,MUF CLAMP
€ 3.00
12
1445921H40
ref: 12
CLAMP,MUFFLER CONNECTOR
€ 17.50
13
1477142F10
ref: 13
CONNECTOR,MUFFLER
€ 13.00
14
0910308358
ref: 14
BOLT(8X45)
€ 3.50
15
0910308392
ref: 15
BOLT(8X40)
€ 4.00
16
0916008142
ref: 16
WASHER(8.5X28X1.5)
€ 2.50
17
0918008152
ref: 17
SPACER(8.6X12X24.2)
€ 6.00
18
0932012048
ref: 18
CUSHION
€ 5.00
19
083612508A
ref: 19
NUT
€ 2.50
20
1126918G01
ref: 20
PULLEY,CONTROLLER
€ 17.00
21
1127614J00
ref: 21
CABLE,EXHAUST VALVE NO.1
€ 34.00
22
1127714J00
ref: 22
CABLE,EXHAUST VALVE NO.2
€ 34.00
23
1425021H00
ref: 23
BRACKET,EXHAUST VALVE CABLE
€ 4.50
24
1425214J00
ref: 24
GUIDE,EXHAUST VALVE CABLE
€ 4.50
25
015470516A
ref: 25
BOLT
€ 2.00
26
083161006A
ref: 26
NUT
€ 2.50
27
1478014J00
ref: 27
COVER,MUFFLER FR
€ 187.00
28
1479510FA0
ref: 28
GROMMET
€ 3.00
29
0913906172
ref: 29
SCREW(6X10)
€ 3.00
30
0932008066
ref: 30
CUSHION
€ 7.50
31
1821323H01
ref: 31
SENSOR,OXYGEN
€ 253.00
32
0940406429
ref: 32
CLAMP(L:45)
€ 2.50
