CRANKCASE COVER
GSXR600 2013 (L3) USA (E03)

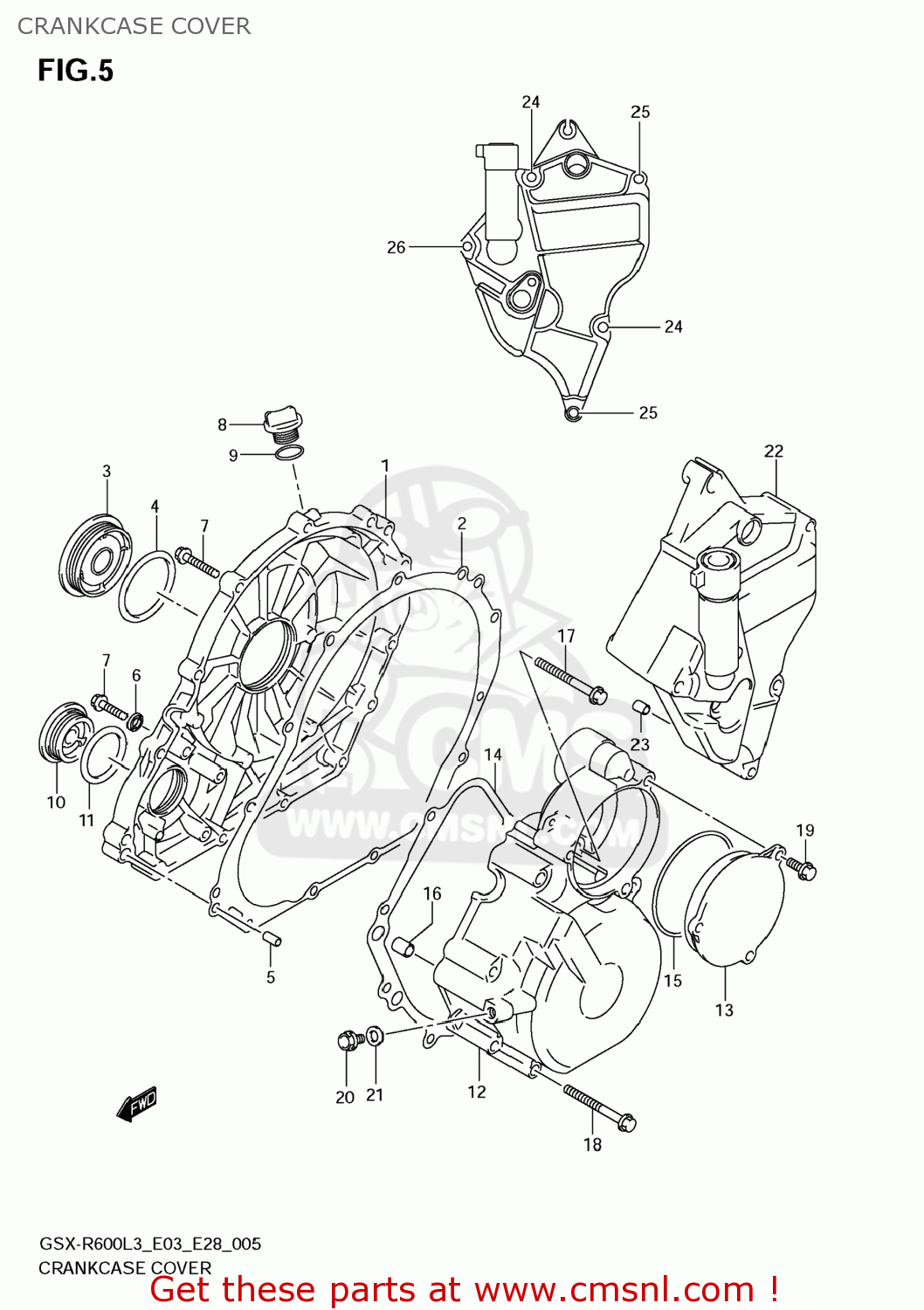

Crankcase cover diagram GSXR600 2013 (L3) USA (E03)
CRANKCASE COVER GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134137H00
ref: 1
COVER,CLUTCH
€ 242.50
2
1148201H00
ref: 2
GASKET,CLUTCH COVER (NAS)
€ 21.00
3
1134241G10
ref: 3
CAP,CLUTCH RELEASE ADJUST
€ 20.00
4
3115617E00
ref: 4
O RING
€ 4.00
5
0421109189
ref: 5
PIN
€ 2.00
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
€ 2.00
7
0910306213
ref: 7
BOLT(6X30)
€ 2.50
8
1197125D00
ref: 8
PLUG,ENGINE OIL FILLER
€ 5.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
€ 2.00
10
0925936021
ref: 10
PLUG
€ 11.00
11
0928033004
ref: 11
O RING(D:3.1,ID:32.7)
€ 2.50
12
1135101H02
ref: 12
COVER,GENERATOR
€ 173.50
13
1135201H00
ref: 13
CAP,STARTER IDLE GEAR
€ 35.50
14
1148301H00
ref: 14
GASKET,GENERATOR COVER (NAS)
€ 10.50
15
0928071008
ref: 15
O RING(D:2.6,ID:67.1)
€ 6.50
16
0421109149
ref: 16
PIN
€ 2.00
17
0910306212
ref: 17
BOLT(6X25)
€ 2.50
18
0910306238
ref: 18
BOLT(6X50)
€ 2.50
19
0910306274
ref: 19
BOLT(6X16)
€ 2.00
20
0910306222
ref: 20
BOLT(6X12)
€ 2.00
21
0916806018
ref: 21
GASKET(6.2X13X1.2) (NAS)
€ 2.00
22
1136101H00
ref: 22
COVER,ENGINE SPROCKET
€ 167.00
23
0421109129
ref: 23
PIN
€ 2.00
24
0910306224
ref: 24
BOLT(6X45)
€ 3.00
25
0910306239
ref: 25
BOLT(6X65)
€ 3.50
26
0910306257
ref: 26
BOLT(6X75)
€ 4.00
