RADIATOR (GSX-R600L3 E28)
GSXR600 2013 (L3) USA (E03)

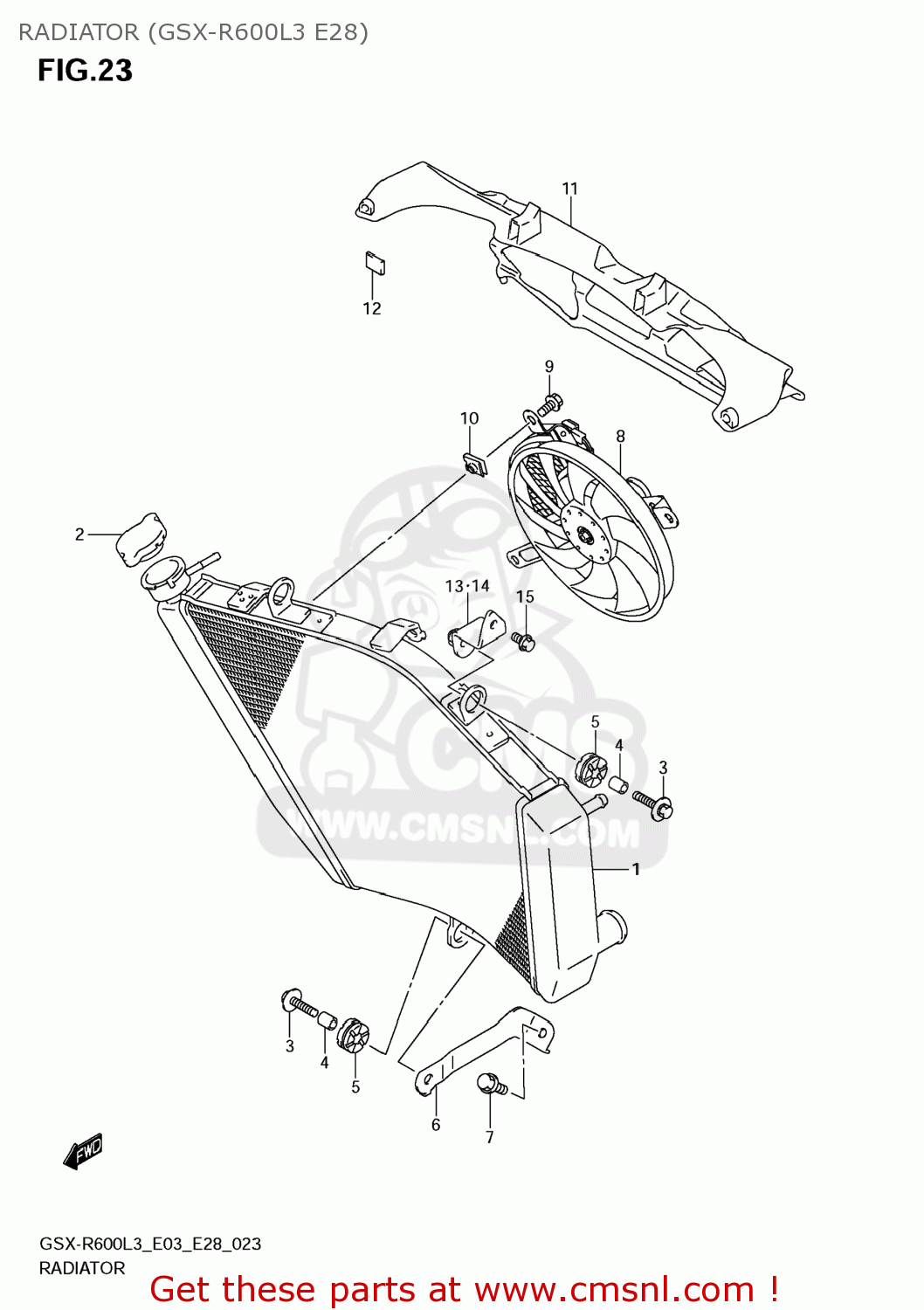

Radiator (gsx-r600l3 e28) diagram GSXR600 2013 (L3) USA (E03)
RADIATOR (GSX-R600L3 E28) GSXR600 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771014J00
ref: 1
RADIATOR ASSY,WATER
€ 691.50
2
1773014G00
ref: 2
CAP,RADIATOR(1.1)
€ 36.00
3
0911806097
ref: 3
BOLT(6X25)
€ 2.50
4
0918006290
ref: 4
SPACER(6.5X10X12)
€ 2.50
5
0932010051
ref: 5
CUSHION
€ 3.50
6
1775014J00
ref: 6
BRACKET,RADIATOR
€ 7.00
7
015500612A
ref: 7
BOLT
€ 2.50
8
1780014J00
ref: 8
FAN ASSY,RADIATOR
€ 427.50
9
1771114G00
ref: 9
BOLT,FAN ASSY
€ 2.50
10
1780214F00
ref: 10
NUT,RADIATOR FAN
€ 3.00
11
1777114J00
ref: 11
SHIELD,RADIATOR HEAT
€ 32.00
12
6154494500
ref: 12
PAD
€ 2.00
13
1774114J00
ref: 13
BRACKET,RADIATOR UPR,R
€ 6.50
14
1774214J00
ref: 14
BRACKET,RADIATOR UPR,L
€ 6.50
15
015500616A
ref: 15
BOLT
€ 2.50
