COWLING BODY (MODEL V)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

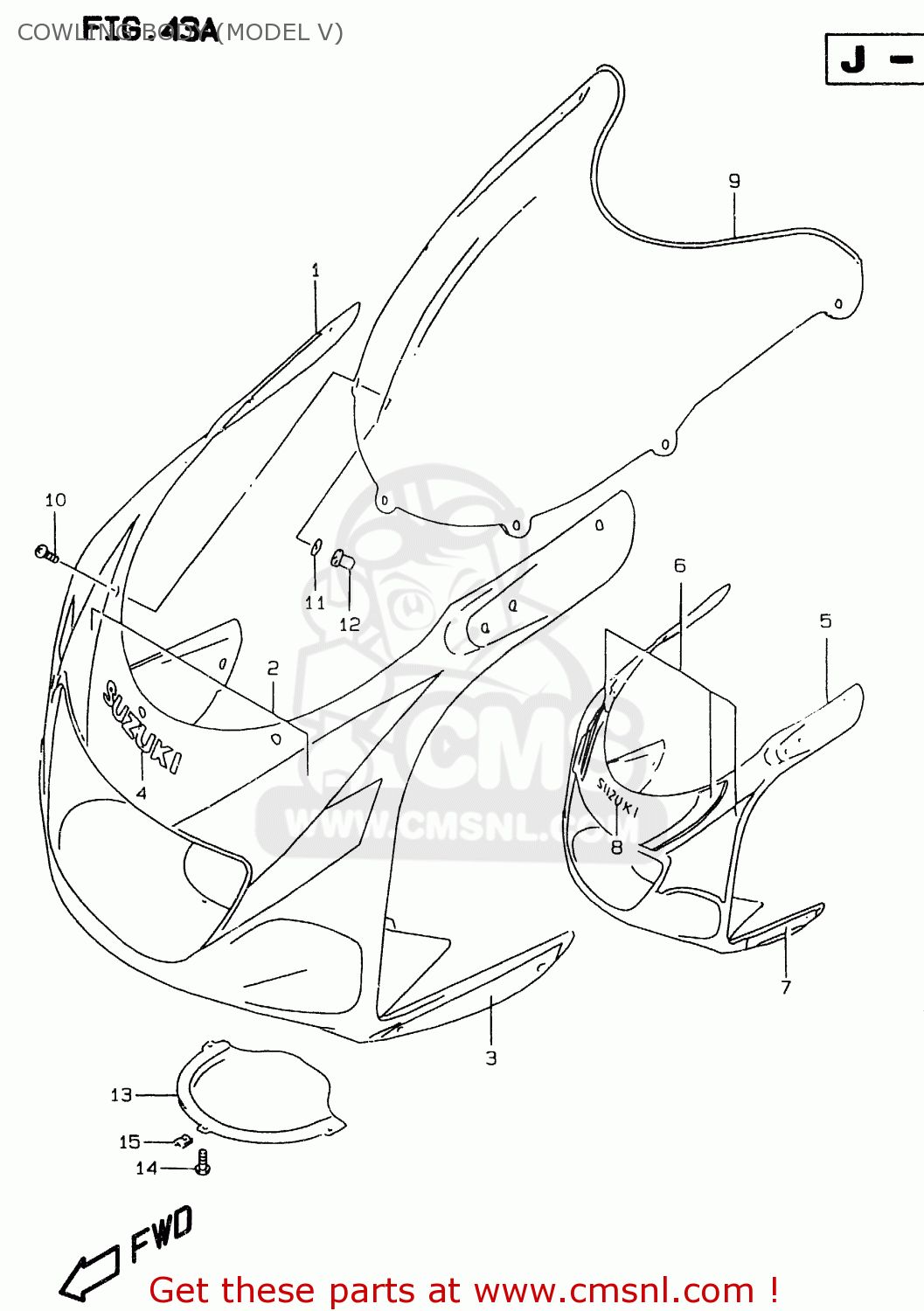

Cowling body (model v) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

COWLING BODY (MODEL V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

COWLING BODY (MODEL V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

9440033E40Y0W
ref: 1-1
FOR G7U

COWLING ASSY,BODY

€ 424.00

1-2

9440033E40Y2D
ref: 1-2
FOR G7V

COWLING ASSY,BODY(SILVER)

€ 424.00

2-1

6827033E30G8T
ref: 2-1
FOR Y0W

TAPE SET,COWL BODY FR

€ 75.50

2-2

6827033E30G8U
ref: 2-2
FOR Y2D

TAPE SET,COWL BODY FR

€ 75.50

3-1

6828033E3033J
ref: 3-1
FOR Y0W

TAPE SET,COWLING BODY SIDE

€ 22.00

3-2

6828033E3035W
ref: 3-2
FOR Y2D

TAPE SET,COWL BODY SIDE

€ 16.00

4

6827134A00Y2U
ref: 4

EMBLEM,SUZUKI

€ 7.00

5

9440033E300JW
ref: 5
FOR L99

COWLING ASSY,BODY

€ 424.00

6

6827033E40G9C
ref: 6

TAPE SET,COWL BODY FR

€ 67.00

7

6828033E201LF
ref: 7

TAPE SET,COWLING BODY SIDE

€ 22.00

8

6818505C101LF
ref: 8

EMBLEM,SUZUKI

€ 13.50

9

9461133E00
ref: 9

WINDSCREEN

€ 148.00

10

0913905025
ref: 10

SCREW(5X14)

€ 2.00

11

0832201053
ref: 11

WASHER

€ 2.50

12

0915905019
ref: 12

NUT

€ 5.50

13

9441933E00
ref: 13

LID,BODY COWLING,LOWER

€ 17.00

14

0324115123
ref: 14

SCREW

€ 2.50

15

0914805038
ref: 15

NUT

€ 2.50
