CRANKSHAFT

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

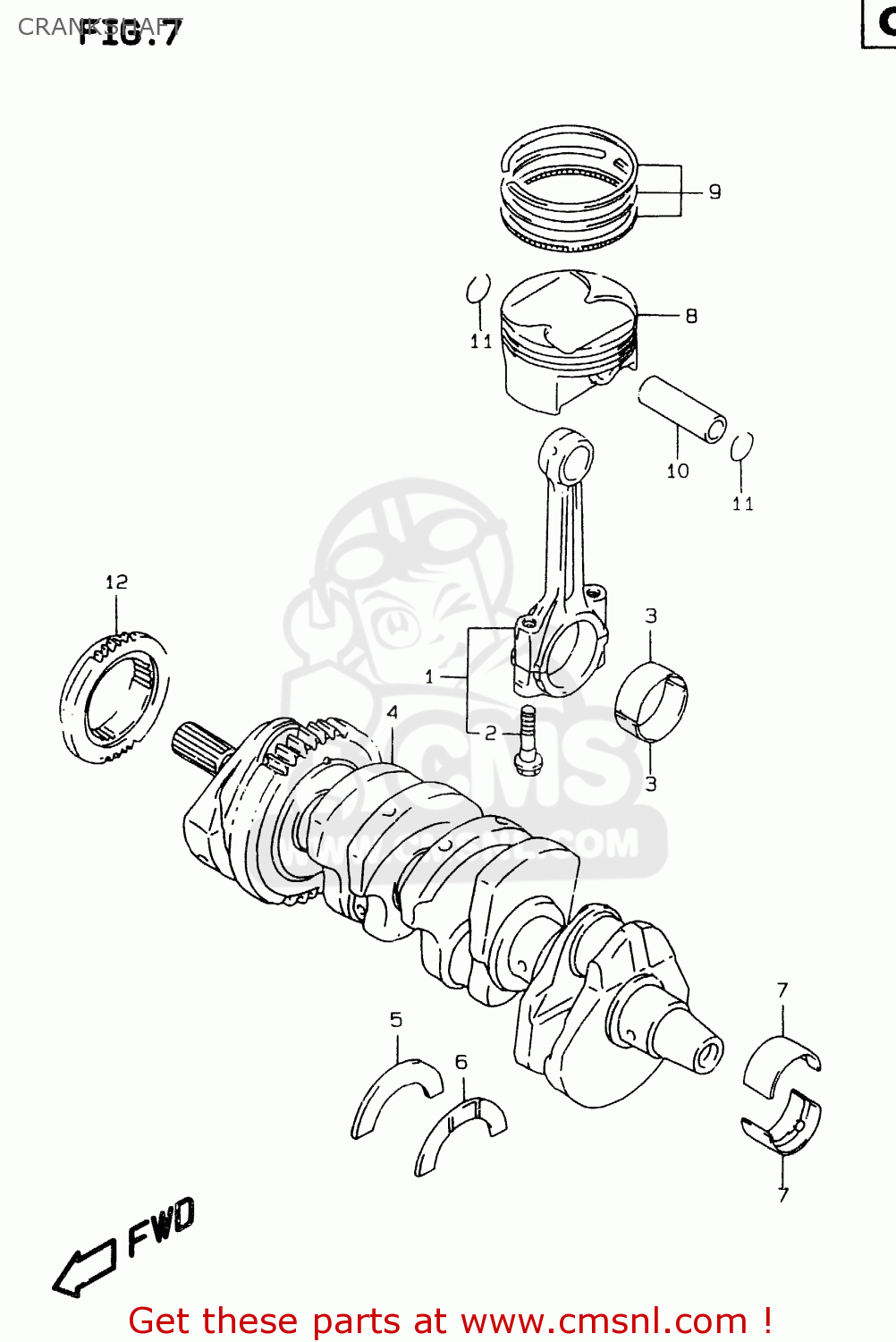

Crankshaft diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CRANKSHAFT GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKSHAFT GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKSHAFT GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
1216033E02
ref: 1-1
MODEL T/V
CONNECTING ROD ASSEMBLY
€ 144.50
1-2
1216033E10
ref: 1-2
MODEL W
CONNECTING ROD ASSEMBLY
€ 144.50
2
1216333E00
ref: 2
BOLT,CONNECTING ROD
1216333E00
€ 16.50
3-1
1216417E010A0
ref: 3-1
BEARING,CRANK PIN
1216417E010A0
€ 14.50
3-2
1216417E010B0
ref: 3-2
BEARING,CRANK PIN
1216417E010B0
€ 14.50
3-3
1216417E010C0
ref: 3-3
BEARING,CRANK PIN
1216417E010C0
€ 15.00
3-4
1216417E010D0
ref: 3-4
BEARING,CRANK PIN
1216417E010D0
€ 15.50
4-1
1200033830
ref: 4-1
MODEL T/V
CRANKSHAFT SET
€ 1,297.00
4-2
1200033840
ref: 4-2
MODEL W
CRANKSHAFT SET
€ 1,437.00
5
1222817E000D0
ref: 5
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
6-1
1222817E000A0
ref: 6-1
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
6-2
1222817E000B0
ref: 6-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
6-3
1222817E000C0
ref: 6-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
6-4
1222817E000D0
ref: 6-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
6-5
1222817E000E0
ref: 6-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
6-6
1222817E000F0
ref: 6-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
7-1
1222931E500A0
ref: 7-1
MODEL T/W
BEARING,CRANKSHAFT LWR(GREEN)
1222931E500A0
€ 15.50
7-2
1222931E500B0
ref: 7-2
MODEL T/W
BEARING,CRANKSHAFT LWR(BLACK)
1222931E500B0
€ 20.50
7-3
1222931E500C0
ref: 7-3
MODEL T/W
BEARING,CRANKSHAFT LWR(BROWN)
1222931E500C0
€ 17.00
7-4
1222931E500D0
ref: 7-4
MODEL T/W
BEARING,CRANKSHAFT LWR(YELLOW)
1222931E500D0
€ 14.50
7-5
1222933E000A0
ref: 7-5
MODEL W
BEARING,CRANKSHAFT(GREEN)
1222933E000A0
€ 12.50
7-6
1222933E000B0
ref: 7-6
MODEL W
BEARING,CRANKSHAFT(BLACK)
1222933E000B0
€ 17.00
7-7
1222933E000C0
ref: 7-7
MODEL W
BEARING,CRANKSHAFT(BROWN)
1222933E000C0
€ 14.50
7-8
1222933E000D0
ref: 7-8
MODEL W
BEARING,CRANKSHAFT(YELLOW)
1222933E000D0
€ 17.00
8-1
1211133E020F0
ref: 8-1
MODEL T/V
PISTON
1211133E020F0
€ 86.00
8-2
1211133E100F0
ref: 8-2
MODEL W
PISTON
€ 86.50
9-1
1214033E00
ref: 9-1
MODEL T/V
RING SET,PISTON
1214033E00
€ 72.50
9-2
1214033E20
ref: 9-2
MODEL W
RING SET,PISTON
1214033E20
€ 77.00
10-1
1215133E01
ref: 10-1
MODEL T/V
PIN,PISTON
€ 13.50
10-2
1215133E02
ref: 10-2
MODEL W
PIN,PISTON
1215133E02
€ 13.50
11-1
0938116004
ref: 11-1
MODEL T/V
CIRCLIP
0938116004
€ 2.00
11-2
0938116001
ref: 11-2
MODEL W
RING,SNAP 16MM
0938116001
€ 1.50
12-1
1273133E00
ref: 12-1
MODEL T/V
SPROCKET,CAM CHAIN DRIVE
1273133E00
€ 34.00
12-2
1273133E10
ref: 12-2
MODEL W
SPROCKET,CAM CHAIN DRIVE
1273133E10
€ 125.50
