REAR CUSHION LEVER (MODEL V)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

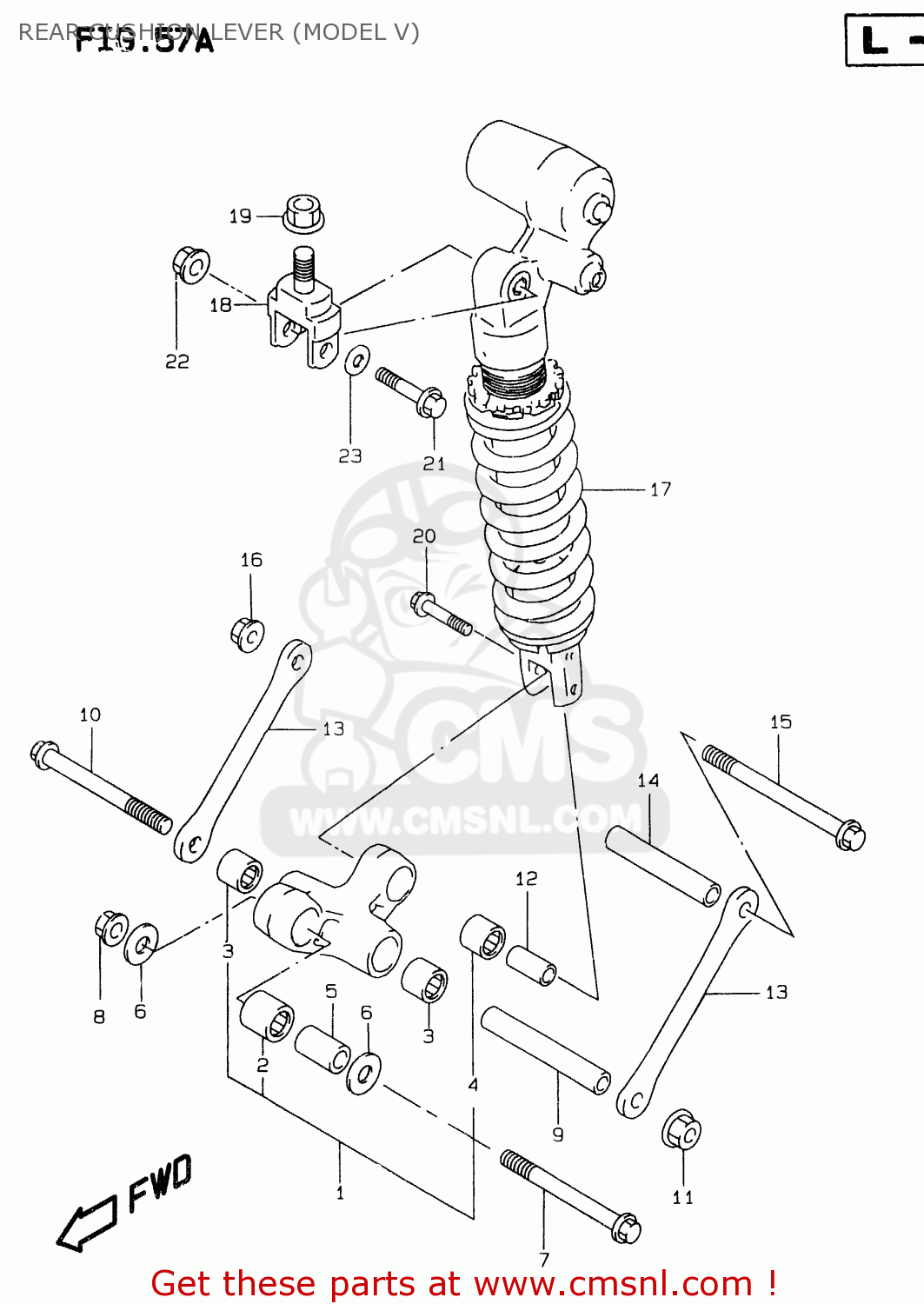

Rear cushion lever (model v) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

REAR CUSHION LEVER (MODEL V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

REAR CUSHION LEVER (MODEL V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

6260033880
ref: 1

LEVER SET,RR CUSHION

€ 264.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268412C00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 12.50

6

0821112301
ref: 6

WASHER

€ 2.00

7

6265833F00
ref: 7

BOLT, FRONT

€ 0.00

8

0831931128
ref: 8

NUT 12MM

€ 4.00

9

6262633D00
ref: 9

SPACER,RR CUSHION LEVER CTR

€ 17.50

10

6262133D00
ref: 10

BOLT,RR CUSHION LEVER CTR

€ 10.00

11

0831931128
ref: 11

NUT 12MM

€ 4.00

12

6268440A10
ref: 12

SPACER,RR CUSHION LEVER

€ 11.50

13

6264133E00
ref: 13

ROD,RR CUSHION LEVER

€ 41.50

14

6262633D00
ref: 14

SPACER,RR CUSHION LEVER CTR

€ 17.50

15

6262133D00
ref: 15

BOLT,RR CUSHION LEVER CTR

€ 10.00

16

0831931128
ref: 16

NUT 12MM

€ 4.00

17

6210033E00
ref: 17

ABSORBER ASSY,RR SHOCK

€ 1,181.00

18-1

6299333E10
ref: 18-1
->62993-33E11

BRACKET,REAR SHOCK ABSORBER,UPPER

€ 86.50

18-2

6299333E11
ref: 18-2
F. NO. JS1GR7DA00050

BRACKET,RR SHOCK ABSORBER UP

€ 86.50

19

0915920006
ref: 19

NUT

€ 19.00

20

0910310049
ref: 20

BOLT(10X44)

€ 5.50

21-1

0910310249
ref: 21-1
FOR 62993-33E10

BOLT

€ 8.00

21-2

0910310101
ref: 21-2
FOR 62993-33E11

BOLT(10X54)

€ 3.00

22

0831931107
ref: 22
FOR 62993-33E11

NUT

€ 3.00

23

0916010085
ref: 23
FOR 62993-33E10

WASHER (10X20X2.3)

€ 2.00
