WIRING HARNESS (MODEL W)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

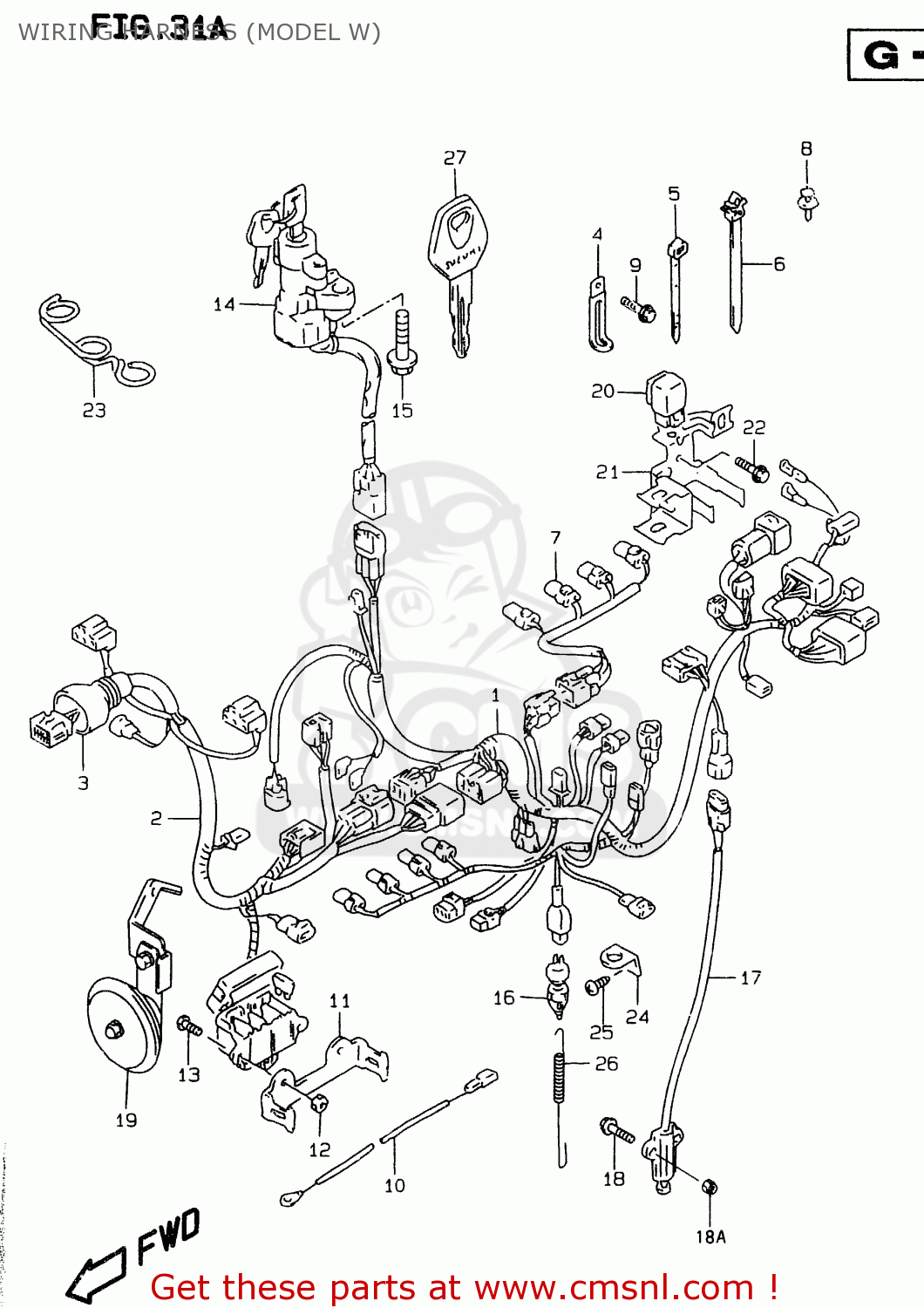

Wiring harness (model w) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WIRING HARNESS (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WIRING HARNESS (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

3661033EA0
ref: 1

HARNESS,WIRING NO.1

€ 698.50

2-1

3662033EA0
ref: 2-1

HARNESS,WIRING NO.2

€ 254.00

2-2

3662033EB0
ref: 2-2
E4, E18, E22, E25, E

HARNESS,WIRING NO.2

€ 257.00

3

3661833E00
ref: 3

COVER,SPEEDOMETER COUPLER

€ 5.50

4-1

0940406429
ref: 4-1

CLAMP(L:45)

€ 2.50

4-2

0940406432
ref: 4-2

CLAMP(L:65)

€ 2.50

5-1

0940714403
ref: 5-1

CLAMP(L:125)

€ 2.50

5-2

0940725401
ref: 5-2

CLAMP(L:235)

€ 4.00

6

0940717401
ref: 6

CLAMP

€ 5.00

6A

0214206123
ref: 6A

SCREW 6X12

€ 2.00

7

3685633EA0
ref: 7

WIRE,INJECTOR LEAD

€ 45.00

8

09409073055PK
ref: 8

CLIP(BLACK)

€ 1.50

9

0155006103
ref: 9

BOLT

€ 2.50

10

3685117E10
ref: 10

WIRE,OIL PRESSURE SWITCH LEAD

€ 13.50

11

3674433E00
ref: 11

BRACKET,FUSE BOX

€ 9.50

12

9461927A00
ref: 12

NUT,COWLING SCREEN

€ 6.50

13

0214205123
ref: 13

SCREW 5X12

€ 1.50

14-1

3710033E20
ref: 14-1

LOCK ASSY,STEERING

€ 223.50

14-2

3710033E30
ref: 14-2
E24

LOCK ASSY, STEERING

€ 142.50

15

0913908016
ref: 15

BOLT(8X20)

€ 3.50

16

3774024A00
ref: 16

SWITCH ASSY,STOP LAMP

€ 20.50

17

3784026X50
ref: 17

SWITCH ASSY,SIDE STAND WARNING

€ 100.50

18

0155006203
ref: 18

BOLT

€ 2.50

18A

0831921063
ref: 18A

NUT

€ 2.50

19

3850033EA0
ref: 19

HORN ASSY

€ 57.00

20

3874024X50
ref: 20

RELAY ASSY

€ 37.50

21

3893033E10
ref: 21

BRACKET COMP,FUEL PUMP RLY

€ 6.50

22

0155006123
ref: 22

BOLT

€ 2.50

23

3661933E00
ref: 23

GUIDE,WIRING HARNESS

€ 10.50

24

4325121E00
ref: 24

BRACKET,STOP LAMP SWITCH

€ 3.50

25

0214206083
ref: 25

SCREW

€ 1.50

26

0944306005
ref: 26

SPRING

€ 6.00

27

3714633E00
ref: 27
OPT

KEY,BLANK

€ 13.00
