REAR CALIPER

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

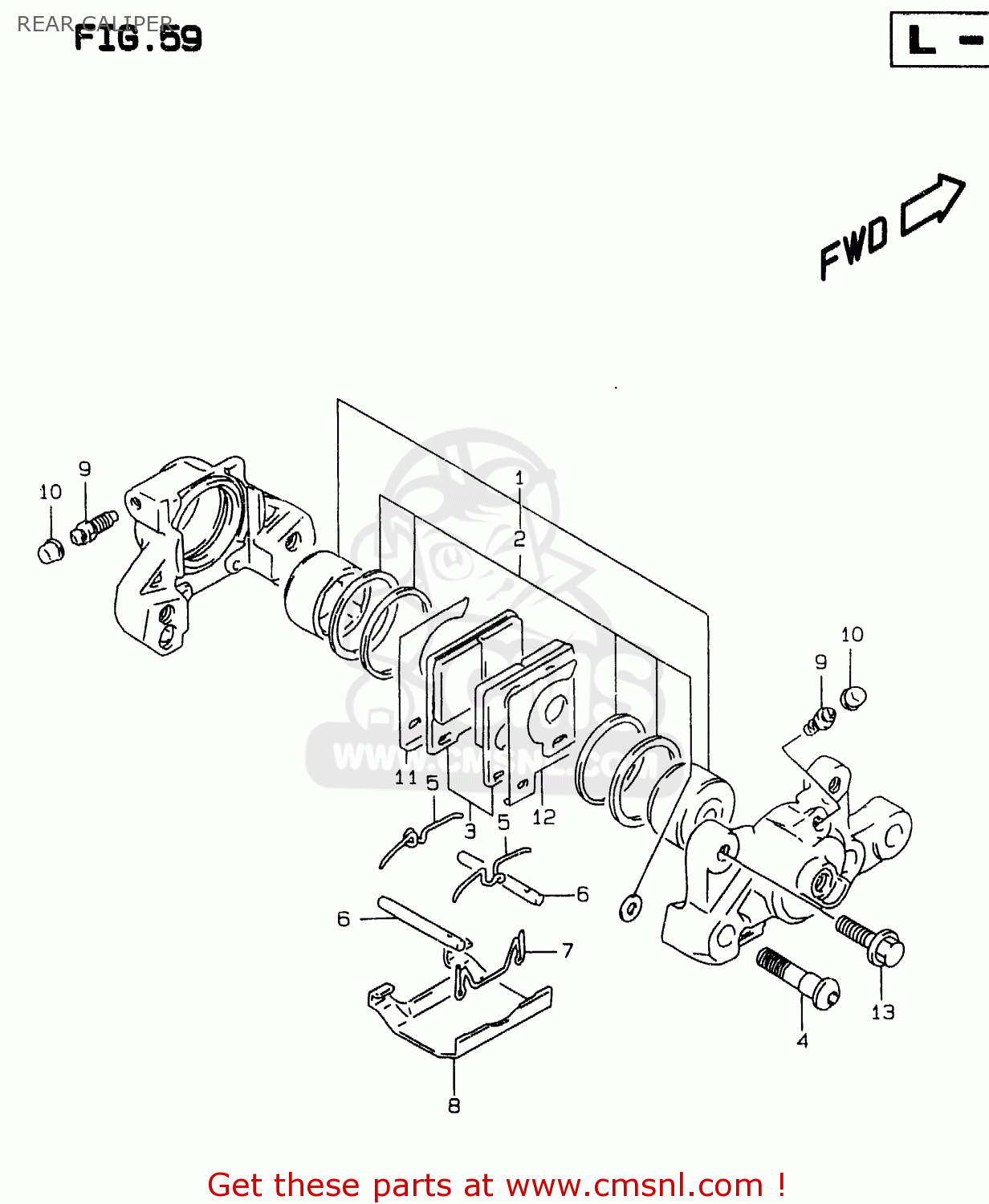

Rear caliper diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

6910005C51
ref: 0
MODEL T/V

CALIPER ASSEMBLY,REAR

€ 818.00

6910005C62
ref: 0
MODEL W

CALIPER ASSEMBLY,REAR

€ 818.00

6910005850
ref: 1

PISTON SET

€ 133.50

6910032820
ref: 2

SEAL SET,PISTON

€ 26.00

3-1

6910021820
ref: 3-1
MODEL T/V

PAD SET (NAS)

€ 43.00

3-2

6910005860
ref: 3-2
MODEL W

PAD SET (NAS)

€ 56.00

5914505C50
ref: 4

BOLT,HOUSING

€ 10.50

5914316700
ref: 5

SPRING

€ 8.50

6914146E01
ref: 6

PIN,PAD

€ 10.50

6914246E01
ref: 7

CLIP,PAD PIN

€ 15.50

5915116701
ref: 8

COVER

€ 14.50

5912118410
ref: 9

BLEEDER

€ 8.50

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.50

5937120C00
ref: 11

SHIM,INNER

€ 8.50

5938120C00
ref: 12

SHIM,OUTER

€ 8.50

0155008303
ref: 13

BOLT

€ 3.50
