STARTER CLUTCH

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

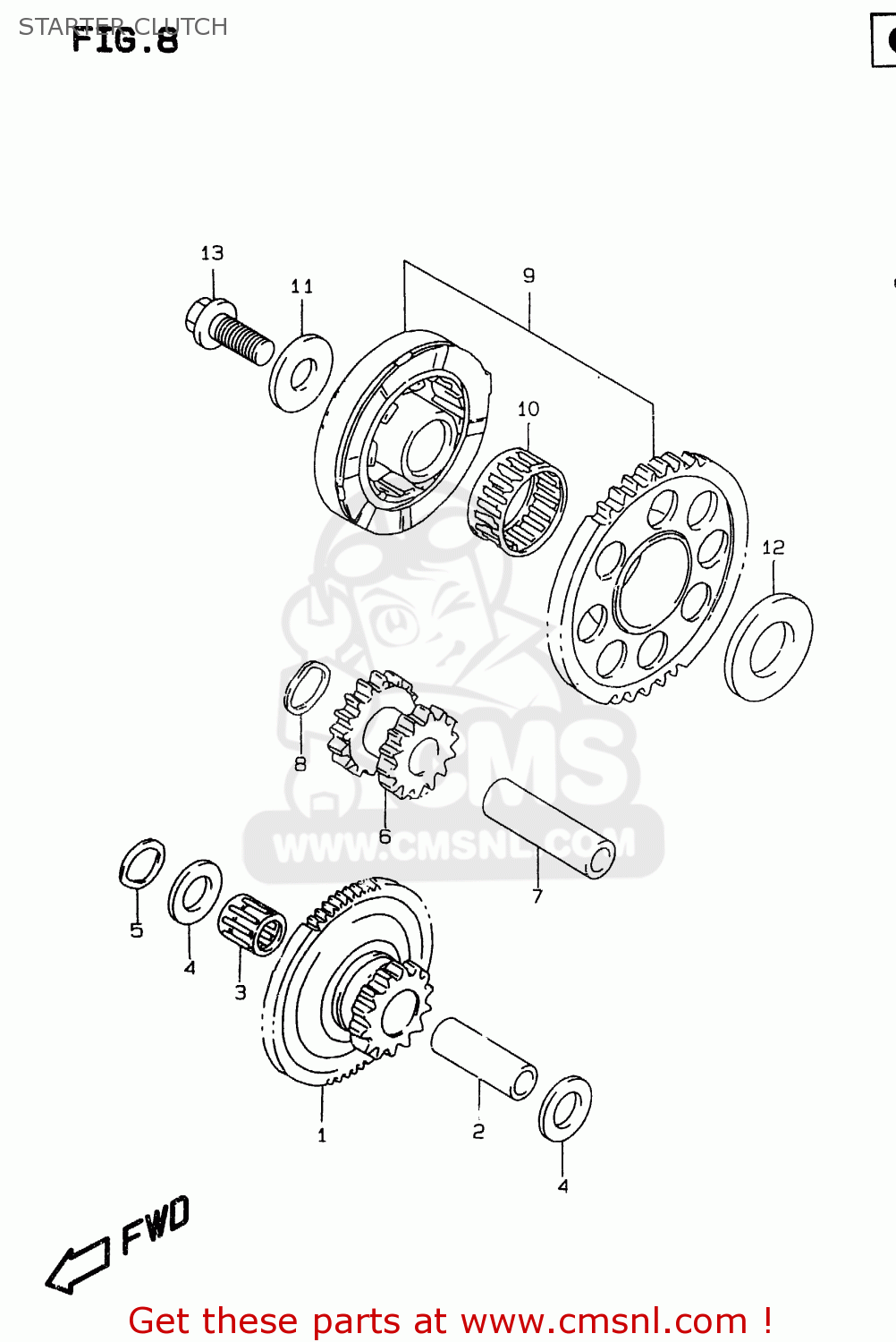

Starter clutch diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STARTER CLUTCH GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STARTER CLUTCH GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

1261133E01
ref: 1-1
MODEL T/V

GEAR,STARTER IDLE NO.1 (N

€ 66.00

1-2

1261133E02
ref: 1-2
MODEL W

GEAR,STARTER IDLE NO.1

€ 66.00

2

1215109204
ref: 2

PIN,PISTON

€ 8.50

3

0926312023
ref: 3

BEARING(12X16X16)

€ 9.00

4

0821112241
ref: 4

WASHER

€ 2.00

5

0916412021
ref: 5

WASHER

€ 2.00

6-1

1261233E01
ref: 6-1
MODEL T/V

GEAR,STARTER I

€ 51.00

6-2

1261233E02
ref: 6-2
MODEL W

GEAR,STARTER IDLE NO.2 (N

€ 51.00

7

1215105200
ref: 7

PIN ,PISTON

€ 6.50

8

0916414008
ref: 8

WASHER

€ 2.50

9-1

1260033860
ref: 9-1
MODEL T/V

CLUTCH SET,STARTER

€ 400.50

9-2

1260033871
ref: 9-2
MODEL W

CLUTCH SET,STARTER

€ 400.50

10-1

09263280290C0
ref: 10-1
MODEL T/V

BEARING,STARTER CLUTCH

€ 42.00

10-2

0926328031
ref: 10-2
MODEL W

BEARING(28X34X16.8)

€ 27.00

11

0821110305
ref: 11

WASHER

€ 3.00

12

0821120403
ref: 12

WASHER

€ 3.50

13

0910310189
ref: 13

BOLT(10X23)

€ 4.50
