THROTTLE BODY FITTING (MODEL W)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

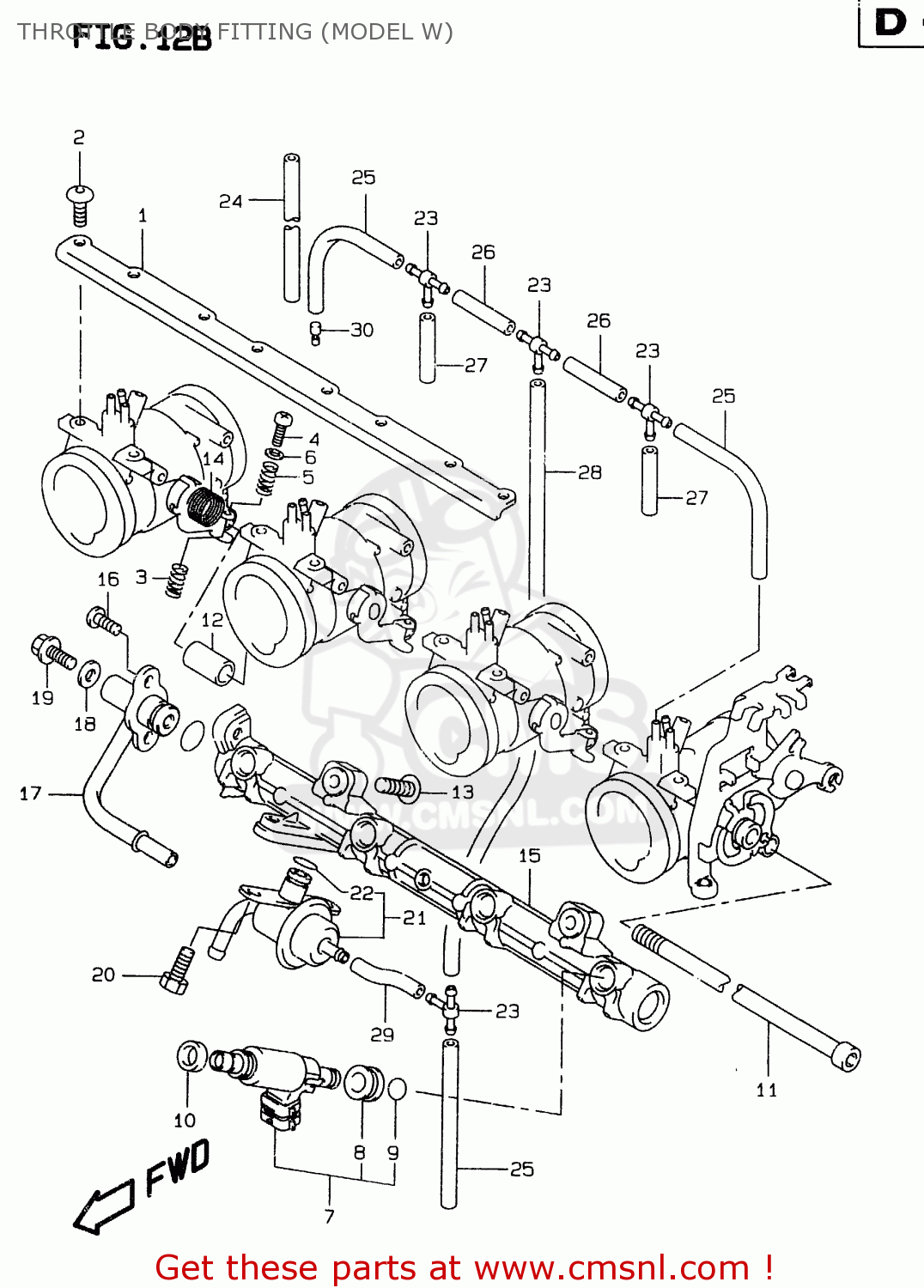

Throttle body fitting (model w) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

THROTTLE BODY FITTING (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

THROTTLE BODY FITTING (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

1362533E00
ref: 1

PLATE

€ 31.50

2

1360233E00
ref: 2

BOLT

€ 1.50

3

1326896110
ref: 3

SPRING,THROTTLE SCREW

€ 4.50

4

1337284301
ref: 4

SCREW

€ 5.00

5

1327193311
ref: 5

SPRING

€ 4.50

6

1342738300
ref: 6

WASHER

€ 1.50

7

1571033E00
ref: 7

INJECTOR ASSEMBLY,FUEL

€ 215.00

8

1572009300
ref: 8

GROMMET

€ 4.50

9

1571702F00
ref: 9

O RING

€ 4.00

10

1367233E00
ref: 10

CUSHION,FUEL INJECTOR

€ 12.50

11

1361333E00
ref: 11

BOLT

€ 12.00

12

1361533E00
ref: 12

RING

€ 14.00

13

1360233E10
ref: 13

BOLT

€ 5.00

14

1357306C10
ref: 14

SPRING

€ 7.00

15

1573133E00
ref: 15

DELIVERY PIPE

€ 140.50

16

0211205127
ref: 16

SCREW

€ 2.50

17

1573233E00
ref: 17

NIPPLE

€ 96.00

18

0916806023
ref: 18

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19

1756850F00
ref: 19

UNION BOLT,AIR VENT

€ 3.50

20

1361202F00
ref: 20

BOLT

€ 3.50

21

1561033E00
ref: 21

REGULATOR COMP,FUEL

€ 185.50

22

1571009300
ref: 22

O RING

€ 4.00

23

0936704007
ref: 23

3 WAY

€ 3.50

24

0935535755600
ref: 24
L:600->165

HOSE(3.5X7.5X600)

€ 10.00

25

0935535755600
ref: 25
L:600->100

HOSE(3.5X7.5X600)

€ 10.00

26

0935535755600
ref: 26
L:600->40

HOSE(3.5X7.5X600)

€ 10.00

27

0935535755600
ref: 27
L:600->35

HOSE(3.5X7.5X600)

€ 10.00

28

0935535755600
ref: 28
L:600->150

HOSE(3.5X7.5X600)

€ 10.00

29

0935535755600
ref: 29
L:600->50

HOSE(3.5X7.5X600)

€ 10.00

30

0949320015
ref: 30

JET

€ 12.00
