FRONT BRAKE HOSE

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

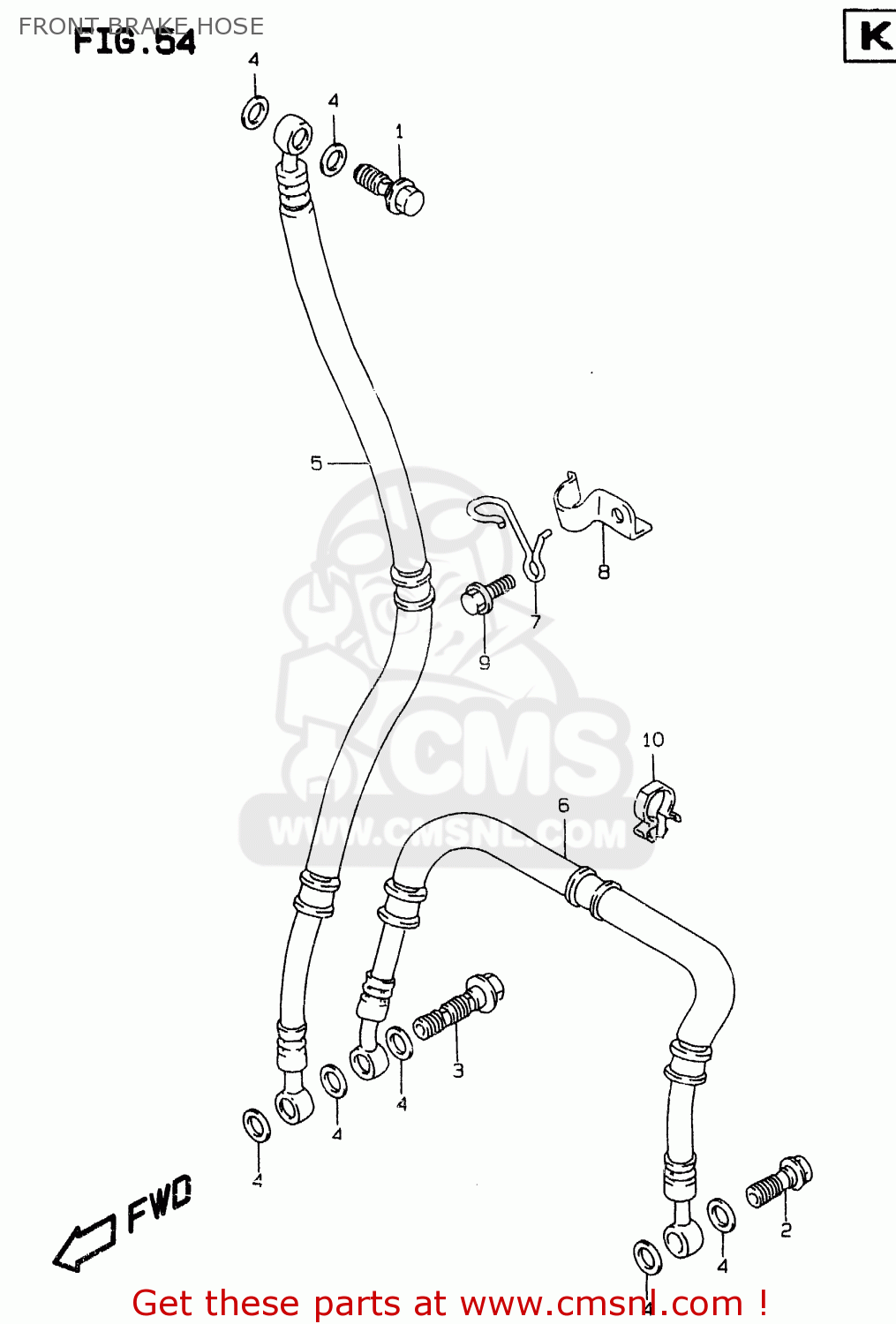

Front brake hose diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

0936010041
ref: 1

BOLT UNION

€ 6.50

0936010042
ref: 2

BOLT UNION

€ 5.00

0936010044
ref: 3

BOLT UNION

€ 5.00

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5948033E00
ref: 5

HOSE,FR BRAKE NO.1

€ 70.50

5924033E00
ref: 6

HOSE,FR BRAKE NO.2

€ 82.50

5926833E00
ref: 7

GUIDE,FRONT BRAKE HOSE

€ 12.00

5926638D00
ref: 8

CLAMP,FR BRAKE HOSE UPR

€ 13.00

9-1

0158006163
ref: 9-1
MODEL T/V

BOLT

€ 2.50

9-2

0155006163
ref: 9-2
MODEL W

BOLT

€ 2.50

0940314304
ref: 10

CLAMP

€ 3.00
