FRONT WHEEL (MODEL W)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

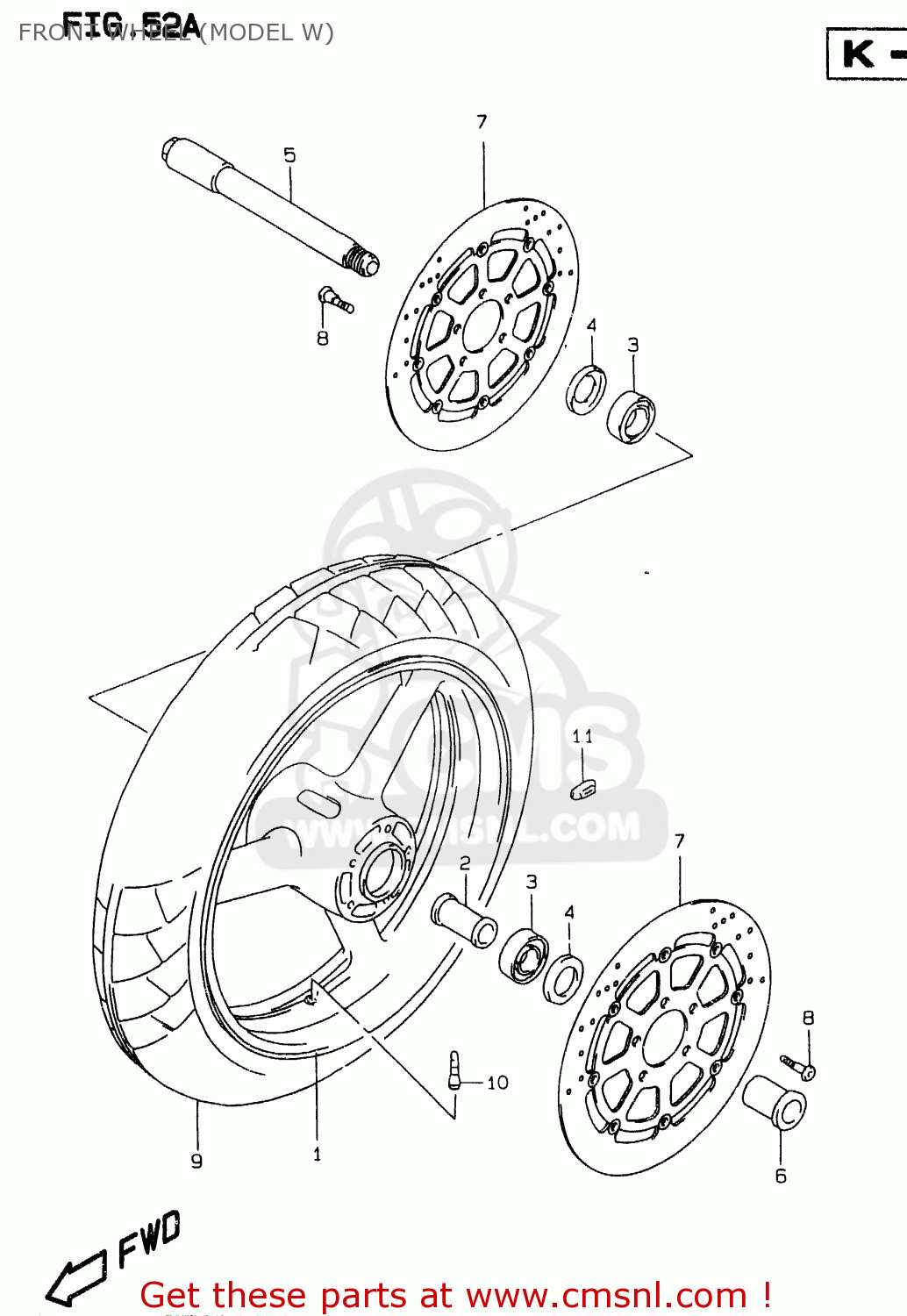

Front wheel (model w) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT WHEEL (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT WHEEL (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

5411133E0012R
ref: 1-1
FOR 3CG, G7U

WHEEL,FRONT (17XMT3.50)(

€ 497.00

1-2

5411133E0028W
ref: 1-2
FOR L99

WHEEL,FRONT (17XMT3.50)(

€ 418.00

2

5473033E00
ref: 2

SPACER,FRONT HUB BEARING

€ 30.00

3

0926225061
ref: 3

BEARING(25X52X15)

€ 27.50

4

0928532004
ref: 4

SEAL,OIL(32X52X7)

€ 8.00

5

5471133E00
ref: 5

AXLE,FR

€ 151.00

6

5471233E00
ref: 6

NUT,FR AXLE

€ 66.50

7

5921033E30
ref: 7

DISC,FR BRAKE

€ 363.00

8

0910608125
ref: 8

BOLT 8X33

€ 6.00

9-1

5511033E30
ref: 9-1
PURCHASE LOCALLY

TIRE, FRONT 120/70 ZR17 (58W) (METZELER)

€ 211.00

9-2

5511033E50
ref: 9-2
E24

TIRE,FRONT 120/70 ZR17

€ 0.00

10

4313024A11
ref: 10

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

11-1

5541100A00
ref: 11-1

BALANCER,WHEEL (10G)

€ 6.50

11-2

5541200A01
ref: 11-2

BALANCER,WHEEL (20G)

€ 7.00
