FRONT DAMPER (MODEL T/V)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

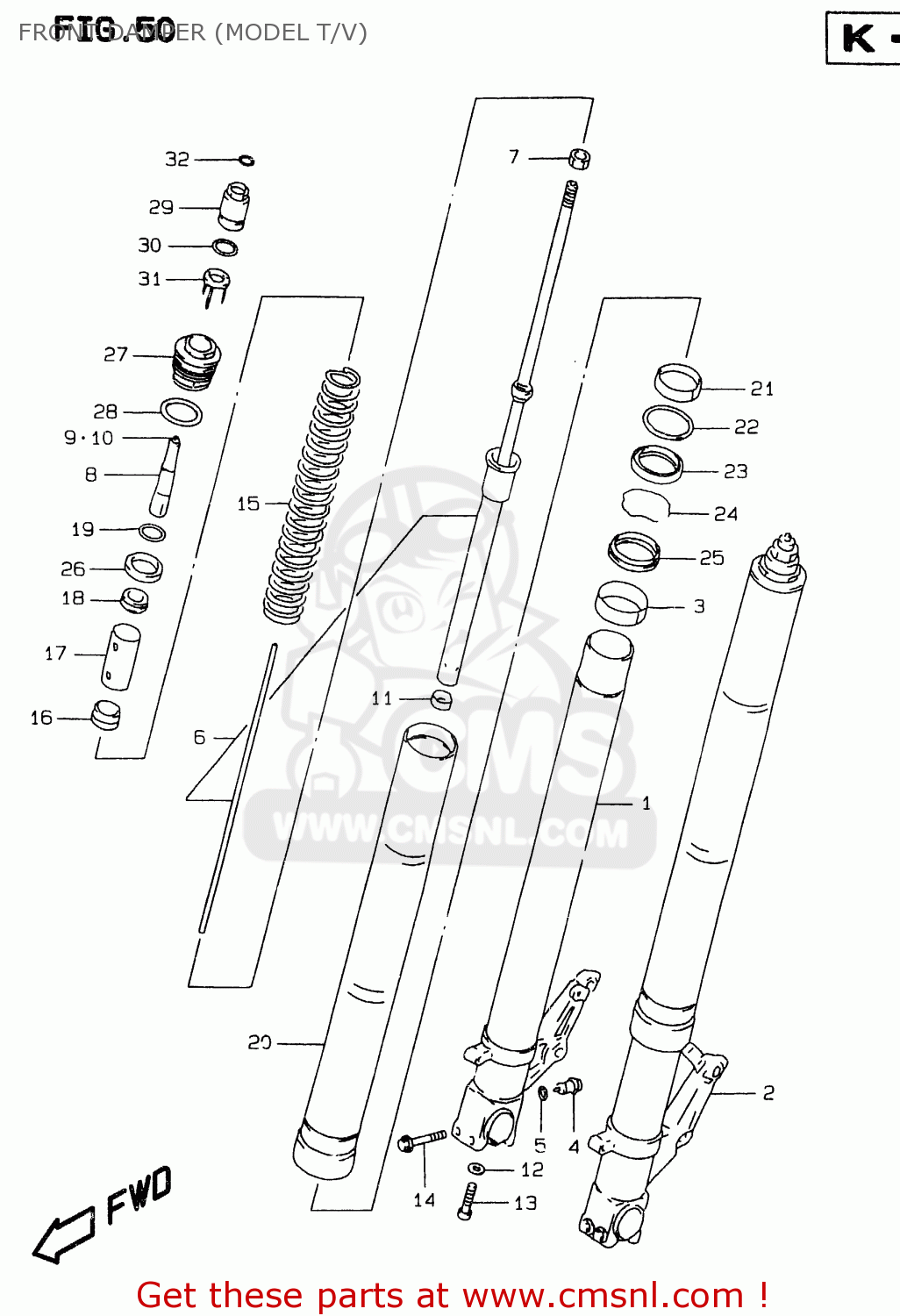

Front damper (model t/v) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT DAMPER (MODEL T/V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT DAMPER (MODEL T/V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

0

5110333E00
ref: 0

DAMPER ASSY, FRONT FORK RH

€ 979.00

0

5110433E00
ref: 0

DAMPER ASSY, FRONT FORK LH

€ 979.00

1

5111033E00
ref: 1

TUBE,INNER,R

€ 487.50

2

5112033E00
ref: 2

TUBE,INNER,L

€ 487.50

3

5112113E00
ref: 3

BUSH,SLIDE

€ 18.00

4

5183033E00
ref: 4

PIECE,ADJUST

€ 73.50

5

0928014003
ref: 5

O-RING (D:2.4 ID:13.8)

€ 3.50

6

5211033E00
ref: 6

ROD,FRONT DAMPER

€ 363.00

7

5182733E00
ref: 7

NUT

€ 11.00

8

5182933E00
ref: 8

CASE,ADJUSTER

€ 87.50

9

5182133E00
ref: 9

PIECE,ADJUST

€ 36.00

10

0928003002
ref: 10

O RING(D:1.9,ID:3.8)

€ 2.00

11

5181533E00
ref: 11

PLATE,CENTERING

€ 15.50

12

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

13

5114717C00
ref: 13

BOLT

€ 21.00

14

0155008457
ref: 14

BOLT

€ 4.00

15

5117117E20
ref: 15

SPRING,MAIN

€ 92.00

16

5117217E00
ref: 16

JOINT,SPRING

€ 25.00

17

5117633E00
ref: 17

COLLAR,SPRING

€ 19.50

18

5117522D00
ref: 18

GUIDE,SPRING UPR

€ 15.00

19

5117234370
ref: 19

GUIDE,SPRING

€ 3.50

20

5113117E40
ref: 20

TUBE,OUTER

€ 500.50

21

5115213E00
ref: 21

BUSH,GUIDE

€ 23.50

22

5116817C00
ref: 22

SPACER,SEAL

€ 5.00

23

5115314D00
ref: 23

SEAL,OIL

€ 20.50

24

5155638B00
ref: 24

CIRCLIP,FORK OIL SEAL

€ 4.50

25

5117329E00
ref: 25

SEAL,DUST

€ 23.00

26

5119317D00
ref: 26

RUBBER,SEAT

€ 13.00

27

5118918D00
ref: 27

BOLT,FORK

€ 79.00

28

5118708D00
ref: 28

O RING,FORK BOLT

€ 6.00

29

5182817D00
ref: 29

ADJUSTER,SPRING

€ 42.50

30

5119917D00
ref: 30

O RING

€ 6.00

31

5182322D30
ref: 31

PLATE,SPRING ADJUSTER

€ 33.50

32

5183717D00
ref: 32

RING,STOPPER

€ 6.00
