STAND

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

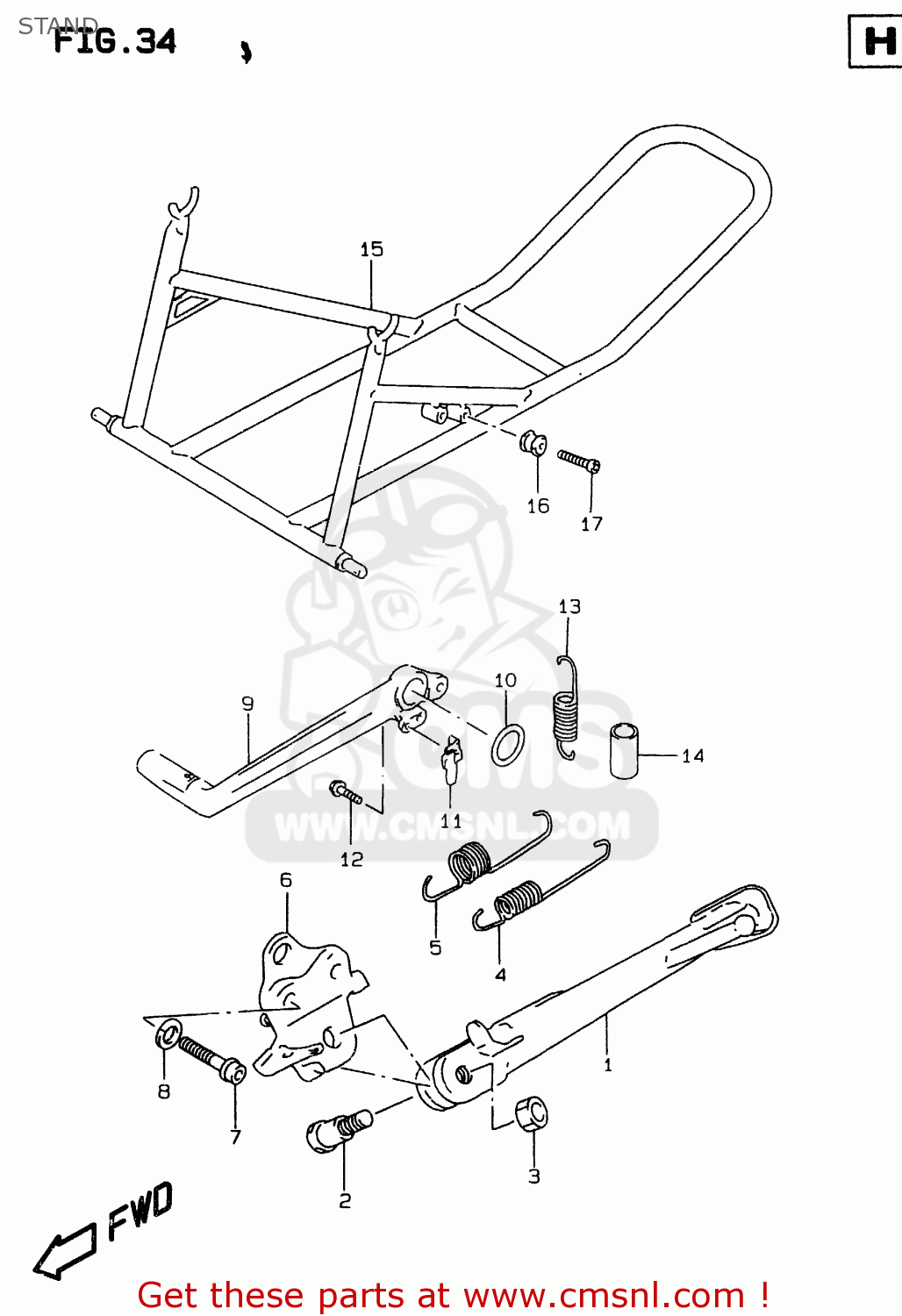

Stand diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STAND GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STAND GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

4231033E00
ref: 1-1
MODEL T/V

STAND COMP,PROP

€ 85.50

1-2

4231033E20
ref: 1-2
MODEL W

STAND,PROP

€ 142.00

2

0911110027
ref: 2

BOLT(10X34)

€ 3.50

3-1

0831921103
ref: 3-1
MODEL T/V

NUT

€ 2.00

3-2

0915910097
ref: 3-2
MODEL W

NUT

€ 5.00

4-1

0944314058
ref: 4-1
MODEL T/V

SPRING

€ 5.50

4-2

0944314066
ref: 4-2
MODEL W

SPRING

€ 5.00

5-1

0944319011
ref: 5-1
MODEL T/V

SPRING

€ 5.50

5-2

0944319012
ref: 5-2
MODEL W

SPRING

€ 5.50

6-1

4233033E00
ref: 6-1
MODEL T/V

BRACKET COMP,PROP STAND

€ 93.00

6-2

4233033E20
ref: 6-2
MODEL W

BRACKET,PROP STAND

€ 93.00

7

0712008303
ref: 7

BOLT

€ 3.50

8

0832101083
ref: 8

LOCK WASHER

€ 2.50

9

4311133E00
ref: 9

PEDAL,BRAKE

€ 100.50

10

0916018022
ref: 10

WASHER(18X24X1)

€ 3.00

11

4356133E00
ref: 11

HOOK,RETURN SPRING

€ 6.50

12

0211205123
ref: 12

SCREW

€ 1.50

13

0944313029
ref: 13

SPRING

€ 5.00

14

4326117C00
ref: 14

TUBE,BRAKE SPRING GUIDE

€ 5.50

15

4210017C00
ref: 15
OPT

STAND ASSEMBLY,REAR

€ 471.00

16

6116527A30
ref: 16
OPT

HOLDER,STAND

€ 26.50

17

0713008303
ref: 17
OPT

BOLT

€ 3.00
