INSTALLATION PARTS

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

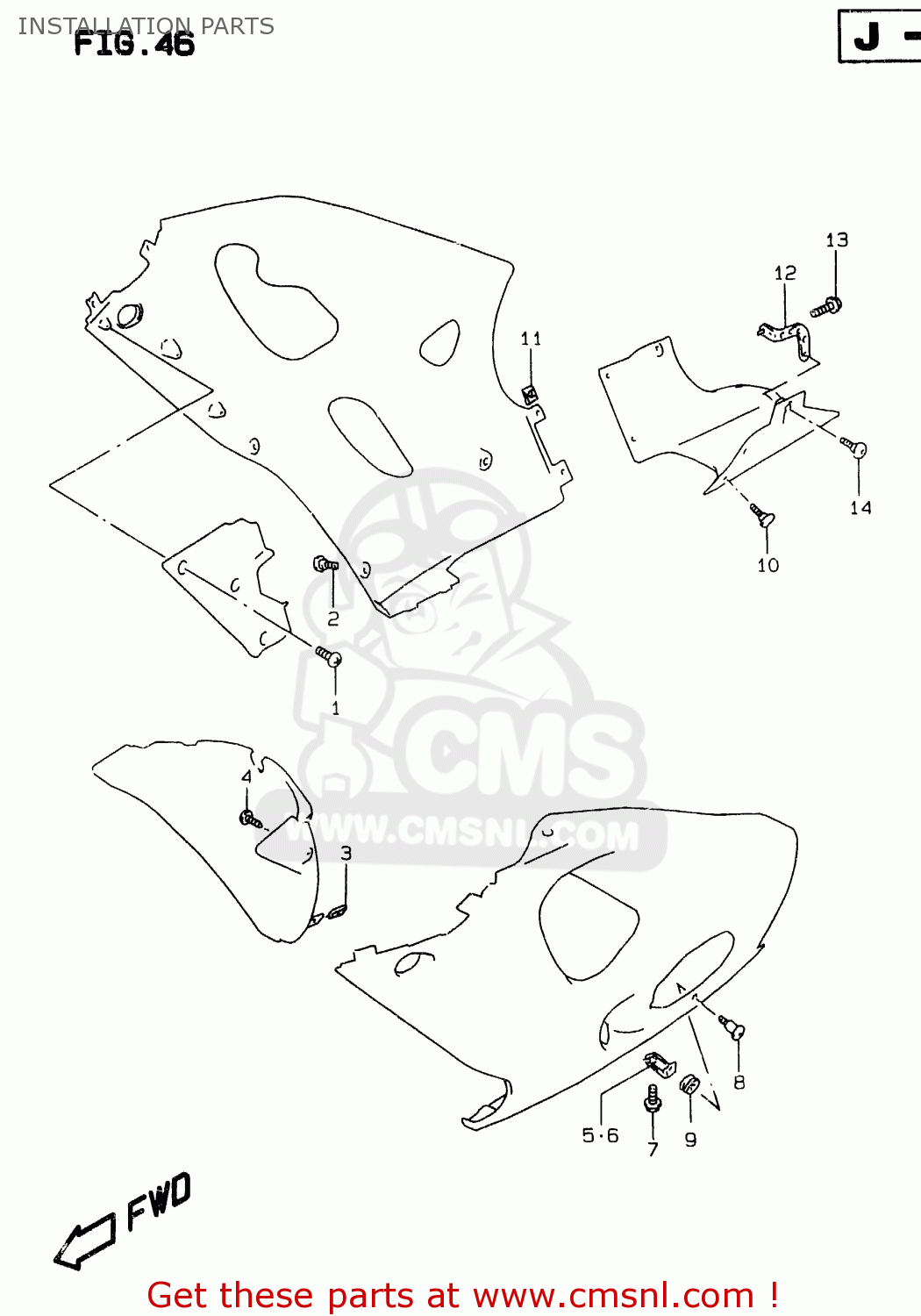

Installation parts diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

0354105123
ref: 1

SCREW

€ 2.00

0913905054
ref: 2

SCREW(5X16)

€ 6.00

9448432B00
ref: 3

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

0354105123
ref: 4

SCREW

€ 2.00

9453333E00
ref: 5

BRACKET,UNDER COWLING,LOWER

€ 6.50

9453433E00
ref: 6

BRACKET,UNDER COWLING,LOWER

€ 7.50

0155006123
ref: 7

BOLT

€ 2.50

0913906087
ref: 8

SCREW(6X20)

€ 4.00

0932009016
ref: 9

CUSHION

€ 2.50

0913905054
ref: 10

SCREW(5X16)

€ 6.00

9448432B00
ref: 11

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

9454033E00
ref: 12

BRACKET,RR UNDER COWLING

€ 10.50

0155006123
ref: 13

BOLT

€ 2.50

0913905054
ref: 14

SCREW(5X16)

€ 6.00
