FUEL TANK (MODEL W)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

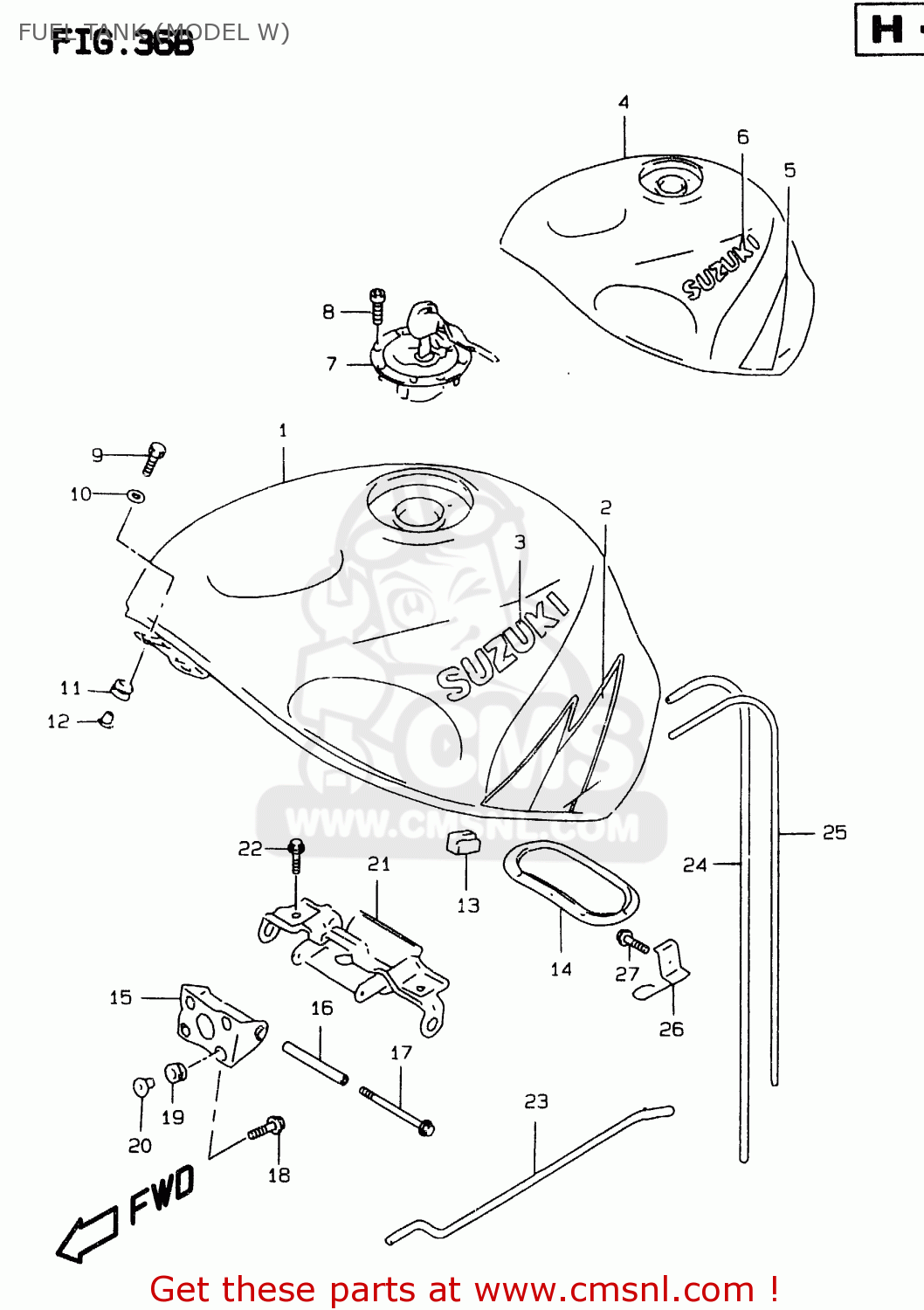

Fuel tank (model w) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FUEL TANK (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FUEL TANK (MODEL W) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

4410033EF0G7U
ref: 1-1

TANK ASSEMBLY,FUEL

€ 779.50

1-2

4410033EF03CG
ref: 1-2

TANK ASSY,FUEL

€ 790.00

2-1

6811033E60J8R
ref: 2-1
FOR G7U

TAPE SET,FUEL TANK

€ 44.00

2-2

6811033E60K3A
ref: 2-2
FOR 3CG

TAPE SET, TANK

€ 59.50

3

6811112C0013L
ref: 3

EMBLEM,FUEL TANK

€ 18.00

4

4410033ED0L99
ref: 4

TANK ASSY,FUEL

€ 528.50

5

6811033E501LE
ref: 5

TAPE SET,FUEL TANK

€ 48.00

6

6811112C000JW
ref: 6

EMBLEM,FUEL TANK

€ 21.00

7

4420033820
ref: 7

CAP SET,FUEL TANK

€ 217.50

8

0910605017
ref: 8

BOLT(5X20)

€ 3.00

9

0913906029
ref: 9

SCREW(6X25)

€ 5.00

10

0916006132
ref: 10

WASHER(6.5X18X1.6)

€ 2.00

11

0932009009
ref: 11

CUSHION

€ 5.00

12

0916906062
ref: 12

WASHER

€ 3.00

13

4454133E00
ref: 13

CUSHION,FUEL TANK SIDE

€ 20.50

14

4459602F00
ref: 14

PACKING,FUEL PUMP (NAS)

€ 38.00

15

4453033E00
ref: 15

BRACKET COMP,FUEL TANK

€ 23.00

16

4456133E10
ref: 16

SPACER,FUEL TANK RR

€ 19.00

17

0155008953
ref: 17

BOLT

€ 3.50

18

0911606111
ref: 18

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

19

0932008001
ref: 19

CUSHION

€ 3.50

20

0916906062
ref: 20

WASHER

€ 3.00

21

4455033E00
ref: 21

BRACKET,FUEL TANK NO.2

€ 36.50

22

0155008163
ref: 22

BOLT

€ 3.00

23

4457433E01
ref: 23

STAY,FUEL TANK

€ 13.50

24

0935250823600
ref: 24

HOSE(5X8.2X600)

€ 13.00

25

0935270103600
ref: 25

HOSE(7X10.2X600)

€ 8.00

26

4448033E00
ref: 26

GUIDE COMP,DRAIN HOSE

€ 6.00

27

0155006123
ref: 27

BOLT

€ 2.50
