RADIATOR HOSE (MODEL T/V)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

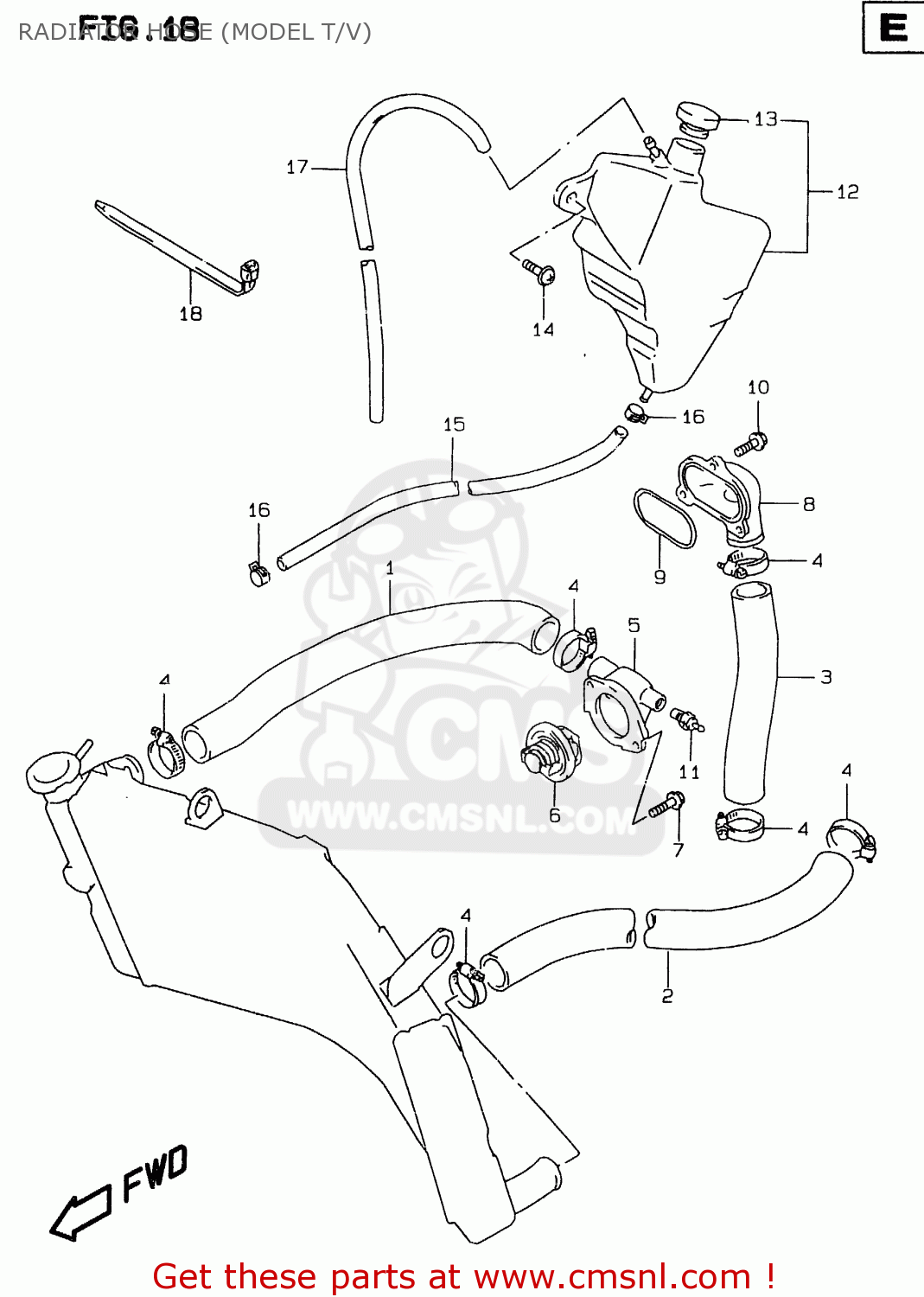

Radiator hose (model t/v) diagram GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

RADIATOR HOSE (MODEL T/V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

RADIATOR HOSE (MODEL T/V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

1785133E00
ref: 1

HOSE,RADIATOR INLET

€ 30.00

2

1785233E00
ref: 2

HOSE,RADIATOR OUTLET

€ 32.50

3

1785333E00
ref: 3

HOSE,CYLINDER INLET

€ 18.00

4

0940238511
ref: 4

CLAMP

€ 10.50

5

1766233E00
ref: 5

CONNECTOR,THERMOSTAT INLET

€ 30.50

6

1767032C01
ref: 6

THERMOSTAT,WATER

€ 41.00

7

0712006203
ref: 7

BOLT

€ 3.50

8

1786133E00
ref: 8

CONNECTOR,CYLINDER WATER,INTAKE

€ 19.00

9

1786333E00
ref: 9

O RING,CYL WATER CONNECTOR

€ 4.50

10

0155006203
ref: 10

BOLT

€ 2.50

11

3485033E00
ref: 11

GAUGE ASSY,WATER TEMP

€ 56.50

12

1791033E00
ref: 12

TANK ASSY,RESERVOIR

€ 112.50

13

1793212C00
ref: 13

CAP,RESERVOIR TANK

€ 3.50

14

0913606022
ref: 14

SCREW(6X20)

€ 2.50

15

1798112C00
ref: 15

HOSE,RESERVOIR TANK INLET

€ 27.00

16

0940108411
ref: 16

CLIP

€ 3.00

17

1798238810
ref: 17

HOSE,RESERVOIR TANK OUTLET

€ 16.00

18

0940718403
ref: 18

CLAMP L:165

€ 2.50
