BATTERY

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

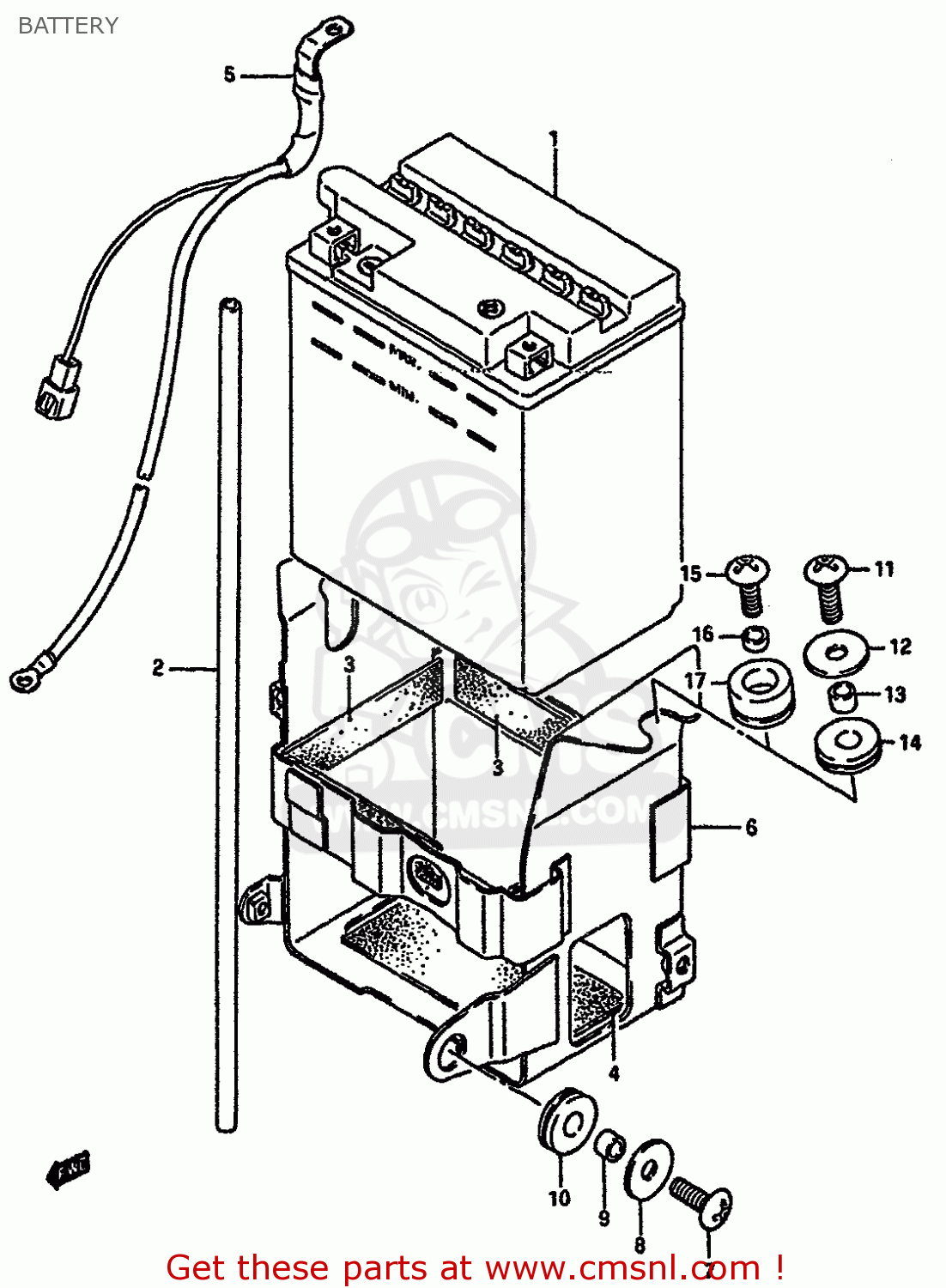

Battery diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

BATTERY GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
BATTERY GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
BATTERY GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3368031003
ref: 2
HOSE,BATTERY EXHAUST
€ 4.50
3
3365229100
ref: 3
PROTECTOR,20X9
€ 5.00
4
3365137D00
ref: 4
CUT AS REQUIRED PROF
CUSHION
€ 0.00
5-1
3386027A00
ref: 5-1
MODEL F
WIRE,BATTERY MINUS LEAD
€ 17.00
5-2
3386006B00
ref: 5-2
MODEL G/H
WIRE,BATTERY MINUS LEAD
€ 17.00
6
4154027A00
ref: 6
HOLDER,BATTERY
€ 44.00
7
0214206167
ref: 7
SCREW
0214206167
€ 2.00
8-1
0916006004
ref: 8-1
WASHER (6.5X24X1.6)
0916006004
€ 1.50
8-2
0916006006
ref: 8-2
WASHER
0916006006
€ 2.00
9
0918006152
ref: 9
SPACER
0918006152
€ 3.00
10
0932009021
ref: 10
CUSHION
0932009021
€ 4.00
11
0214206257
ref: 11
MODEL F
SCREW
€ 3.00
12
0916006004
ref: 12
MODEL F
WASHER (6.5X24X1.6)
0916006004
€ 1.50
13
0918006152
ref: 13
MODEL F
SPACER
0918006152
€ 3.00
14
0932009021
ref: 14
MODEL F
CUSHION
0932009021
€ 4.00
15
0214206207
ref: 15
MODEL G/H
SCREW
0214206207
€ 2.00
16
0918006073
ref: 16
MODEL G/H
SPACER
0918006073
€ 2.00
17
4154934A00
ref: 17
MODEL G/H
CUSHION,HOLDER BATTERY UPR
4154934A00
€ 4.00
