CARBURETOR (MODEL H E18)

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

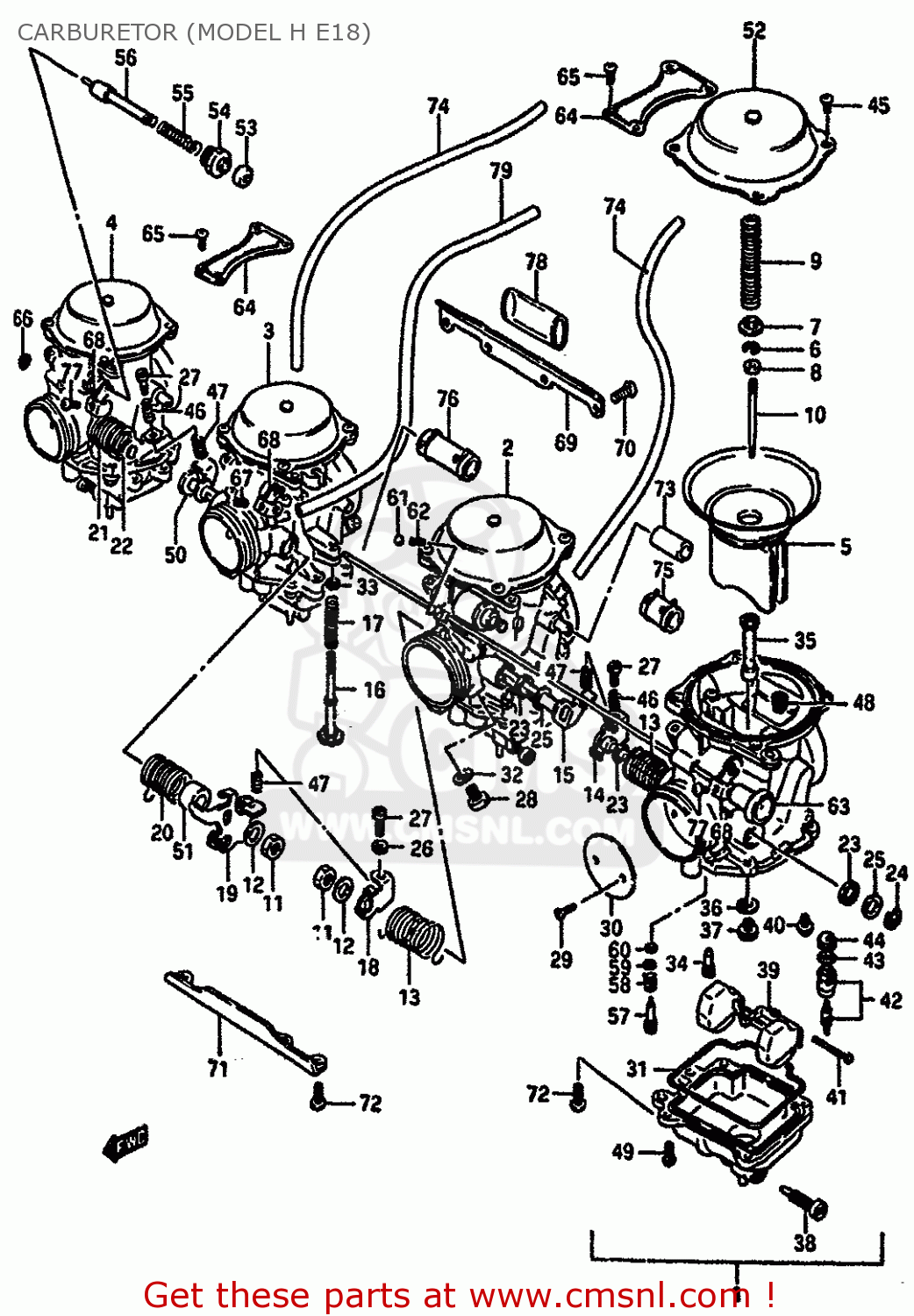

Carburetor (model h e18) diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CARBURETOR (MODEL H E18) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR (MODEL H E18) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR (MODEL H E18) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1320127B00
ref: 1
CARBURETOR ASSY,LH
€ 0.00
2
1320227B00
ref: 2
CARBURETOR ASSY,ML
€ 0.00
3
1320327B00
ref: 3
CARBURETOR ASSY,MR
€ 0.00
4
1320427B00
ref: 4
CARBURETOR ASSY,RH
€ 0.00
5
1350027B00
ref: 5
DIAPHRAGM
€ 183.00
6
1339410010
ref: 6
FROM 13415-47070
CLIP
1339410010
€ 4.50
7
1338242A00
ref: 7
RING
1338242A00
€ 3.50
8
1338747010
ref: 8
RING
1338747010
€ 7.50
9
1341742A00
ref: 9
SPRING
1341742A00
€ 6.00
10
1338327B00
ref: 10
NEEDLE,JET (AC8-3)
€ 17.00
11
0831021086
ref: 11
ML,MR
NUT
€ 1.50
12
1360647070
ref: 12
ML,MR
WASHER
1360647070
€ 3.00
13
1357328A10
ref: 13
LH,ML
SPRING
€ 0.00
14
1353028A30
ref: 14
LH
SHAFT ASSY
€ 0.00
15
1355028A00
ref: 15
ML
SHAFT ASSEMBLY
€ 0.00
16
1326728A00
ref: 16
MR
SCREW
€ 22.50
17
1327128A10
ref: 17
MR
SPRING
€ 6.00
18
1355328A00
ref: 18
ML
LEVER
€ 0.00
19
1355528A00
ref: 19
MR
LEVER ASSEMBLY
€ 0.00
20
1357328A00
ref: 20
MR
SPRING
€ 0.00
21
1357328A20
ref: 21
RH
SPRING
€ 0.00
22
1355028A20
ref: 22
RH
SHAFT ASSEMBLY
€ 0.00
23
1365151010
ref: 23
SEAL
1365151010
€ 4.00
24
1361744080
ref: 24
LH,RH
E RING
1361744080
€ 3.50
25
1355747070
ref: 25
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
26
1358295216
ref: 26
ML
NUT,THROTTLE ROD
1358295216
€ 6.50
27
1326752012
ref: 27
LH,ML,RH
SCREW
1326752012
€ 3.00
28
1360573000
ref: 28
SCREW
1360573000
€ 10.50
29
1360442A00
ref: 29
SCREW
€ 3.50
30
1355127B00
ref: 30
VALVE,THROTTLE (130)
€ 0.00
31
1325142A00
ref: 31
O RING,FLOAT CHAMBER
1325142A00
€ 7.50
32
1324978100
ref: 32
WASHER
1324978100
€ 4.00
33
1343247090
ref: 33
MR
WASHER
1343247090
€ 2.50
34
0949235009
ref: 34
JET ,PILOT (35)
€ 7.50
35
0949400565
ref: 35
JET NEEDLE (Q-0)
€ 0.00
36
1333244080
ref: 36
WASHER,NEEDLE NOZZLE
€ 2.50
37
0949123017
ref: 37
JET,MAIN(117.5)
0949123017
€ 11.00
38
1324713A00
ref: 38
SCREW,DRAIN
1324713A00
€ 5.50
39
1325028A00
ref: 39
FLOAT
1325028A00
€ 33.00
40
1360243410
ref: 40
SCREW
1360243410
€ 2.50
41
1325492311
ref: 41
PIN,FLOAT
1325492311
€ 2.00
42
1337044500
ref: 42
VALVE ASSY,NEEDLE
1337044500
€ 40.50
43
1337444080
ref: 43
O-RING,NEEDLE VALVE
1337444080
€ 6.00
44
1337665010
ref: 44
FILTER
€ 6.50
45
0211204085
ref: 45
LH/MR:2,ML/RH:3
SCREW
0211204085
€ 2.00
46
1327128A00
ref: 46
LH,RH
SPRING
1327128A00
€ 4.00
47
1326896110
ref: 47
LH,ML,RH
SPRING,THROTTLE SCREW
€ 4.50
48
0949332002
ref: 48
JET
0949332002
€ 11.50
49
1360227A10
ref: 49
SCREW
€ 1.50
50
1355028A10
ref: 50
MR
SHAFT ASSEMBLY
€ 0.00
51
1357428A00
ref: 51
MR
RING
1357428A00
€ 4.50
52
1350228A00
ref: 52
COVER,DIAPHRAGM
€ 35.00
53
1368231210
ref: 53
CAP,STARTER VALVE
1368231210
€ 5.00
54
1341844080
ref: 54
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
55
1341743010
ref: 55
SPRING
1341743010
€ 3.50
56
1341105320
ref: 56
PLUNGER ASSY
1341105320
€ 18.00
57
1327947070
ref: 57
SCREW,PILOT
1327947070
€ 11.50
58
1326847070
ref: 58
SPRING
1326847070
€ 5.00
59
1327744080
ref: 59
GASKET
€ 2.00
60
1329529900
ref: 60
FROM 13278-44080
O RING,PILOT AIR SCREW
1329529900
€ 4.00
61
1359693010
ref: 61
BALL,CARBURETOR
1359693010
€ 3.50
62
1343406B00
ref: 62
SPRING
€ 6.50
63
1341028A00
ref: 63
SHAFT ASSEMBLY
€ 28.00
64
1362828A00
ref: 64
PLATE
€ 0.00
65
0211204085
ref: 65
SCREW
0211204085
€ 2.00
66
1329849000
ref: 66
E-RING
€ 2.00
67
1360549330
ref: 67
SCREW
1360549330
€ 5.50
68
1342228A00
ref: 68
LEVER
€ 7.50
69
1362828A10
ref: 69
PLATE
€ 0.00
70
0211205128
ref: 70
SCREW
€ 2.50
71
1362828A20
ref: 71
PLATE
€ 0.00
72
0211205168
ref: 72
SCREW
0211205168
€ 2.50
73
1368349160
ref: 73
L:400-18
HOSE,CARBURETOR
€ 26.00
74
1368428A00
ref: 74
HOSE
€ 13.00
75
1368027A00
ref: 75
HOSE SET (3X5X18)
€ 6.00
76
1368028A00
ref: 76
HOSE ASSY
1368028A00
€ 6.00
77
1360534390
ref: 77
SCREW
€ 3.50
78
1368428A10
ref: 78
HOSE
€ 6.50
79
1368306A20
ref: 79
HOSE
€ 6.50
