FUEL COCK

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

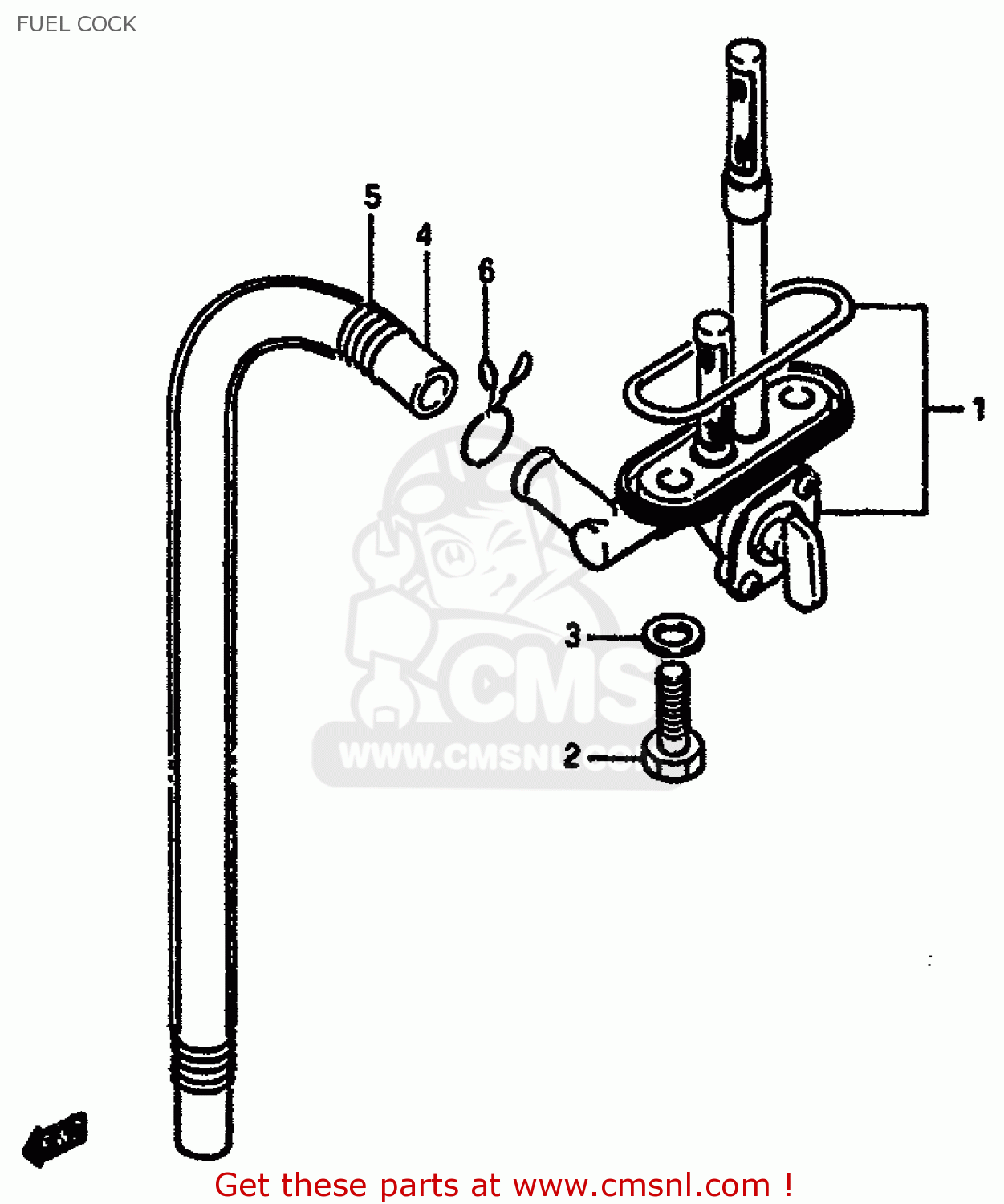

Fuel cock diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FUEL COCK GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FUEL COCK GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

4430027A00
ref: 1-1
MODEL F/G

COCK ASSY,FUEL

€ 94.50

1-2

4430028A02
ref: 1-2
MODEL H

COCK ASSY,FUEL

€ 131.50

2

0912806006
ref: 2

BOLT(6X20)

€ 2.00

3

0916806010
ref: 3

GASKET

€ 2.00

4

0934307152
ref: 4

HOSE

€ 17.50

5

0944013020
ref: 5

SPRING

€ 14.50

6

0940110402
ref: 6

CLIP

€ 7.00
