TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55)

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

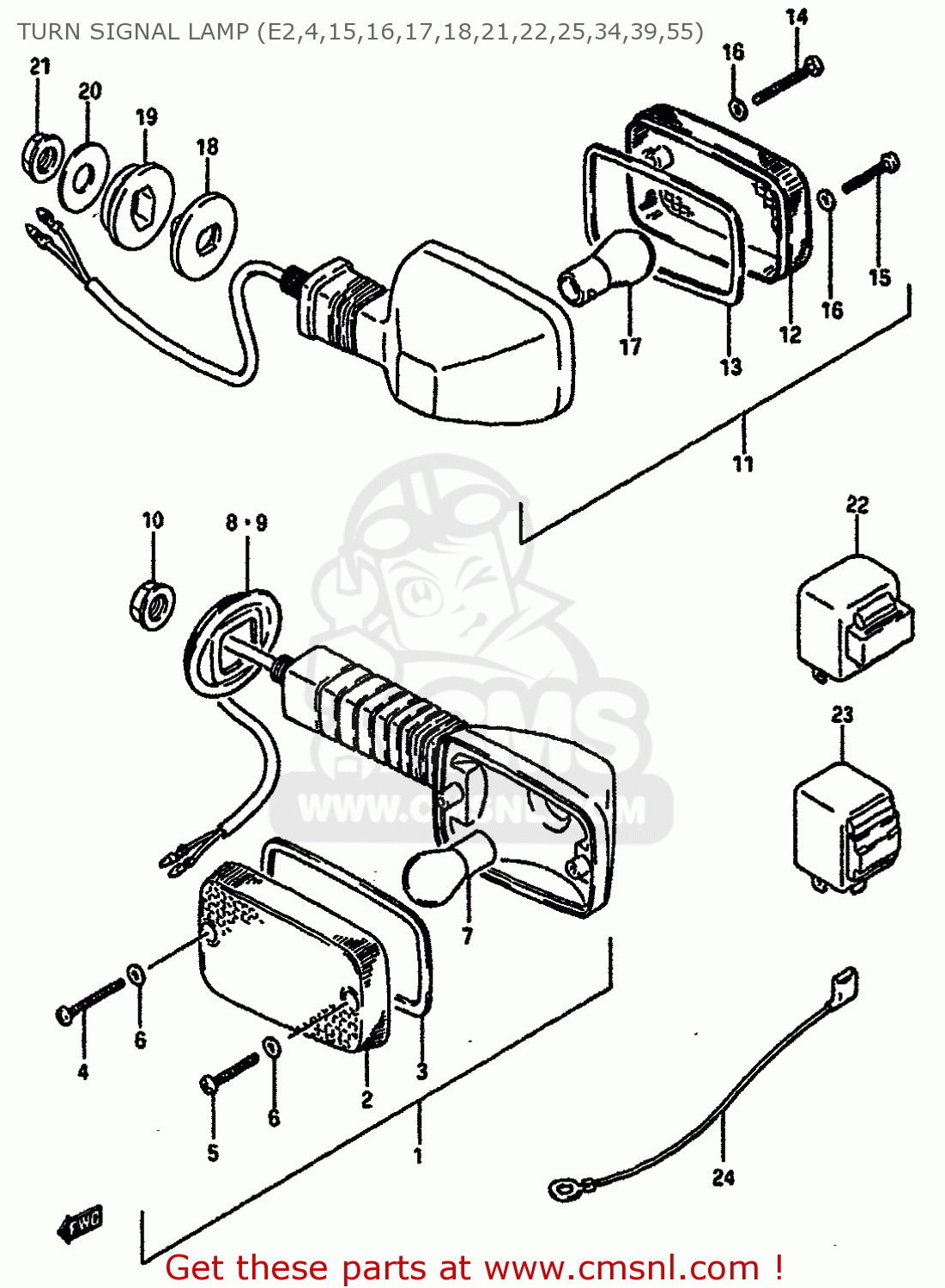

Turn signal lamp (e2,4,15,16,17,18,21,22,25,34,39,55) diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3560114A42
ref: 1-1
MODEL F E2,E16,E17,E
LAMP ASSY,FRONT TURN SIGNAL
€ 108.00
1-2
3560106B40
ref: 1-2
MODEL G/H E2,E15,E16
LAMP ASSY, FRONT TURN SIGNAL
3560106B40
€ 108.00
1-3
3560114A23
ref: 1-3
MODEL F E4,E18,E21,E
LAMP ASSY,FRONT TURN SIGNAL
€ 120.50
1-4
3560106B20
ref: 1-4
MODEL G/H E4,E18,E21
LAMP ASSY,FR
3560106B20
€ 120.50
1-5
3560114A53
ref: 1-5
MODEL F E22 TO 35601
LAMP ASSY,FRONT TURN SIGNAL
€ 127.50
1-6
3560106B50
ref: 1-6
MODEL G/H E22
LAMP ASSY, FRONT TURN SIGNAL
€ 127.50
2
3561202181
ref: 2
LENS,FR
3561202181
€ 9.00
3
3561348700
ref: 3
GASKET (NAS)
3561348700
€ 7.50
4
3562302180
ref: 4
SCREW,TURN SIG LENS FITTING
3562302180
€ 2.00
5
0321104308
ref: 5
SCREW
0321104308
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8-1
3567427A30
ref: 8-1
E2,E15,E16,E17,E22
GROMMET,TURNSIGNAL LAMP,R
3567427A30
€ 8.50
8-2
3567427A20
ref: 8-2
E4,E18,E21,E25,E34,E
GROMMET, FRONT RH
3567427A20
€ 7.00
9-1
3568427A30
ref: 9-1
E2,E15,E16,E17,E22
GROMMET,TURNSIGNAL LAMP,L
3568427A30
€ 8.50
9-2
3568427A20
ref: 9-2
E4,E18,E21,E25,E34,E
GROMMET, FRONT LH
3568427A20
€ 7.00
10
0831626105
ref: 10
NUT
0831626105
€ 3.50
11-1
3560314A22
ref: 11-1
MODEL F E2,E4,E15,E1
LAMP ASSY,REAR TURN SIGNAL
€ 93.50
11-2
3560306B20
ref: 11-2
MODEL G/H E2,E4,E15,
LAMP ASSY,REAR TURN SIGNAL
3560306B20
€ 36.00
11-3
3560314A52
ref: 11-3
MODEL F E16,E18,E39
LAMP ASSY,RR
3560314A52
€ 71.50
11-4
3560306B40
ref: 11-4
MODEL G/H E16,E18,E1
LAMP ASSY,REAR TURN SIGNAL
3560306B40
€ 71.50
11-5
3560314A72
ref: 11-5
MODEL F E22
LAMP ASSY,REAR TURN SIGNAL
€ 41.00
11-6
3560306B50
ref: 11-6
MODEL G/H E22
LAMP ASSY,REAR TURN SIGNAL
3560306B50
€ 64.00
12
3565202181
ref: 12
LENS,RR
3565202181
€ 8.50
13
3561348700
ref: 13
GASKET (NAS)
3561348700
€ 7.50
14
3562302180
ref: 14
SCREW,TURN SIG LENS FITTING
3562302180
€ 2.00
15
0321104308
ref: 15
SCREW
0321104308
€ 1.50
16
3562743010
ref: 16
GASKET (NAS)
3562743010
€ 2.00
17
0947112045
ref: 17
BULB(12V21W)
0947112045
€ 5.00
18
3569506B00
ref: 18
MODEL G/H
SPACER
3569506B00
€ 4.50
19
3569206B00
ref: 19
MODEL G/H
CUSHION
3569206B00
€ 4.50
20
0916010078
ref: 20
MODEL G/H
WASHER (10.2X27X1.6)
0916010078
€ 2.00
21
0831626105
ref: 21
NUT
0831626105
€ 3.50
22
3861031310
ref: 22
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
23
3861045091
ref: 23
E22,MODEL G/H E2
RELAY ASSY,TUR
€ 67.50
24
3685135010
ref: 24
E22,MODEL G/H E2
LEAD WIRE
3685135010
€ 6.00
