FUEL TANK (MODEL F/G)

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

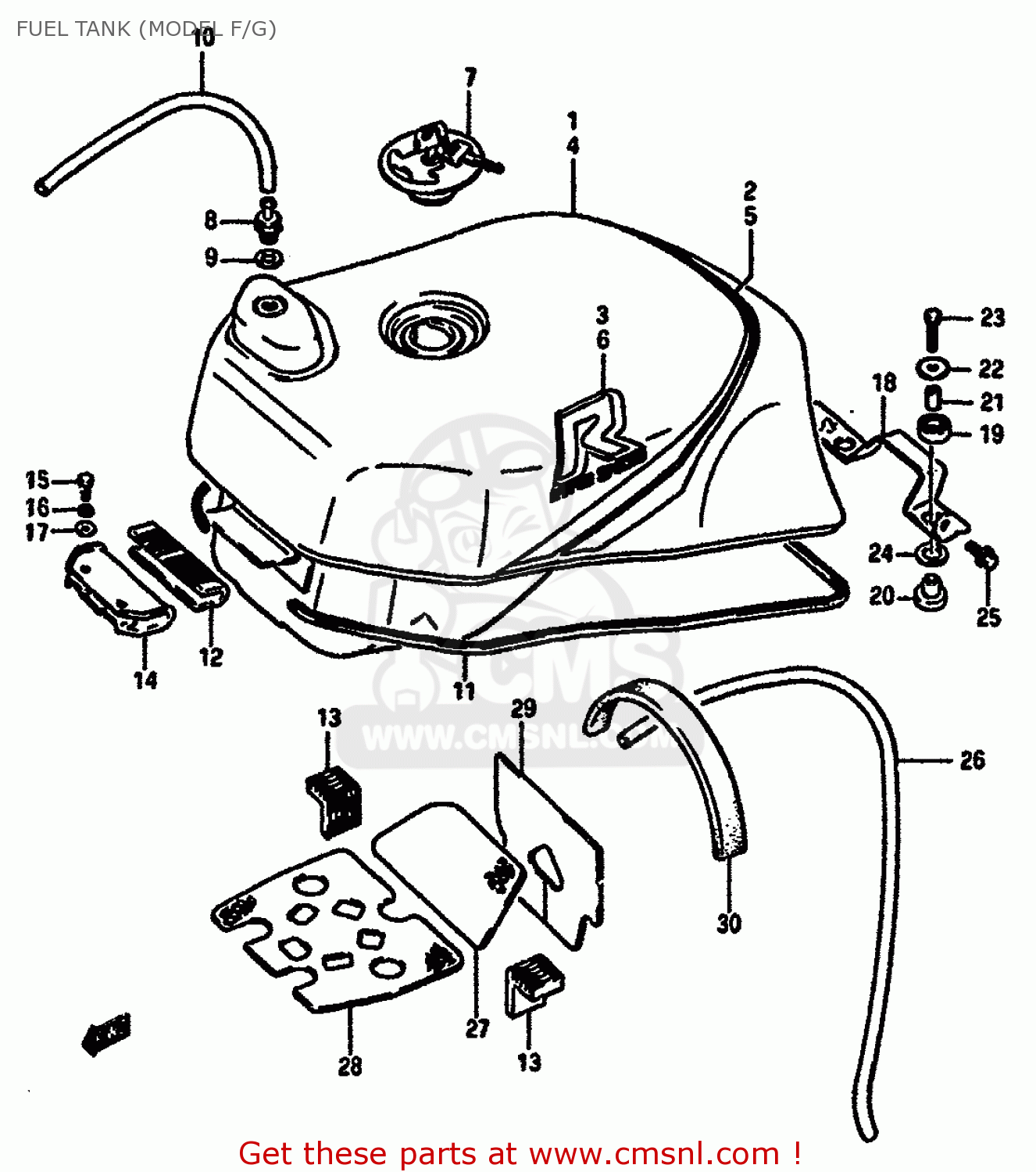

Fuel tank (model f/g) diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FUEL TANK (MODEL F/G) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL F/G) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL F/G) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4410027A007GF
ref: 1-1
MODEL F
TANK ASSY,FUEL
€ 675.00
1-2
4410027A307GF
ref: 1-2
MODEL G
TANK ASSY,FUEL
€ 675.00
1-3
4410027A107GF
ref: 1-3
MODEL F E22
TANK ASSY,FUEL
€ 0.00
1-4
4410027A407GF
ref: 1-4
MODEL G E22
TANK ASSY,FUEL
€ 997.50
1-5
4410027A007JK
ref: 1-5
MODEL F
TANK ASSY,FUEL
€ 675.00
1-6
4410027A307JK
ref: 1-6
MODEL G
TANK ASSY,FUEL
€ 675.00
1-7
4410027A107JK
ref: 1-7
MODEL F E22
TANK ASSY,FUEL
€ 0.00
1-8
4410027A407JK
ref: 1-8
MODEL G E22
TANK ASSY,FUEL
€ 997.50
2-1
6811027A107UC
ref: 2-1
FOR 7GF
TAPE SET,FUEL TANK
€ 73.00
2-2
6811027A107VE
ref: 2-2
FOR 7JK
TAPE SET,FUEL TANK
6811027A107VE
€ 78.50
3-1
6811127A007TW
ref: 3-1
FOR 7GF
EMBLEM
6811127A007TW
€ 9.00
3-2
6811127A007JS
ref: 3-2
FOR 7JK
EMBLEM
6811127A007JS
€ 12.00
4-1
4410027A907GF
ref: 4-1
MODEL G E2,E24
TANK ASSY,FUEL
€ 0.00
4-2
4410027A907JK
ref: 4-2
MODEL G E2,E24
TANK ASSY,FUEL
€ 0.00
5-1
6811028A017UC
ref: 5-1
MODEL G E2,E24 FOR 7
TAPE SET,FUEL TANK
€ 22.50
5-2
6811028A017VE
ref: 5-2
MODEL G E2,E24 FOR 7
TAPE SET,FUEL TANK
€ 22.50
6-1
6811127A007TW
ref: 6-1
MODEL G E2,E24 FOR 7
EMBLEM
6811127A007TW
€ 9.00
6-2
6811127A007JS
ref: 6-2
MODEL G E2,E24 FOR 7
EMBLEM
6811127A007JS
€ 12.00
7
4420020A00KEY
ref: 7
CAP SET,FUEL TANK
4420020A00KEY
€ 174.00
8
4424040A00
ref: 8
PLUG, FUEL TANK BREATHER
€ 36.00
9
0916812012
ref: 9
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
10
0934305165
ref: 10
HOSE,FUEL
0934305165
€ 13.00
11
6824127A00
ref: 11
MOLDING,FUEL TANK
6824127A00
€ 23.00
12
4451127A00
ref: 12
CUSHION,FUEL TANK,FRONT
4451127A00
€ 7.00
13-1
4454527A00
ref: 13-1
MODEL F
CUSHION,FUEL TANK SIDE
4454527A00
€ 4.00
13-2
4454527A01
ref: 13-2
MODEL G
CUSHION,FUEL TANK
4454527A01
€ 4.00
14
4452127A00
ref: 14
BRACKET,FUEL TANK FR
4452127A00
€ 16.00
15
0110706205
ref: 15
BOLT
0110706205
€ 2.00
16
0832121064
ref: 16
WASHER,LOCK
0832121064
€ 2.00
17
0832221064
ref: 17
WASHER
0832221064
€ 2.00
18
4521127A00
ref: 18
BRACKET,SEAT SUPPORT,FRONT
4521127A00
€ 9.50
19-1
0932014013
ref: 19-1
MODEL G
CUSHION
0932014013
€ 3.00
19-2
0932014017
ref: 19-2
MODEL H
CUSHION
0932014017
€ 3.00
20-1
0932010020
ref: 20-1
MODEL G
CUSHION
0932010020
€ 4.00
20-2
0932010038
ref: 20-2
MODEL H
CUSHION
0932010038
€ 4.00
21
0918006072
ref: 21
SPACER
0918006072
€ 2.00
22
0916006072
ref: 22
WASHER (6.5X24X1.6)
0916006072
€ 2.00
23
0110706356
ref: 23
BOLT ,6X35
€ 2.50
24
0916012004
ref: 24
WASHER (12.5X24X1.6)
0916012004
€ 2.00
25
0913806038
ref: 25
SCREW(6X16)
0913806038
€ 3.00
26
0934305165
ref: 26
HOSE,FUEL
0934305165
€ 13.00
27
4419127A00
ref: 27
SHIELD,FUEL TANK HEAT
4419127A00
€ 15.50
28
4419227A00
ref: 28
SHIELD,FUEL TANK HEAT
4419227A00
€ 25.50
29
4419427A00
ref: 29
HEAT SHIELD,FUEL TANK
€ 16.50
30
4419327A02
ref: 30
SHIELD,TANK & CLEANER
€ 12.50
