STAND

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

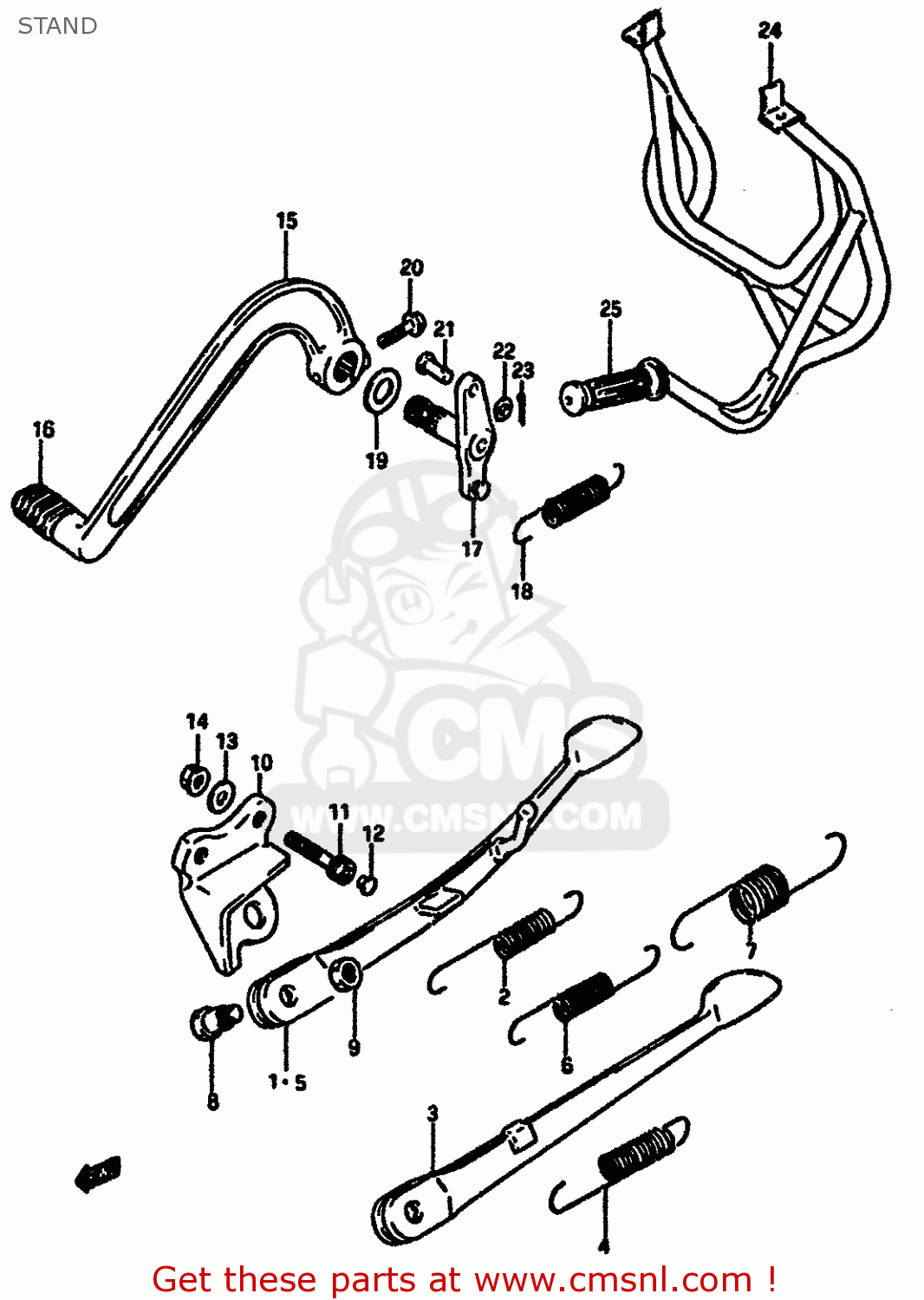

Stand diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STAND GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STAND GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STAND GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4231027A0113L
ref: 1
STAND,SIDE
4231027A0113L
€ 59.50
2
0944314040
ref: 2
SPRING
0944314040
€ 4.00
3-1
4231027A1113L
ref: 3-1
MODEL F/G E15,E16,E1
STAND, PROP (SILVER)
€ 0.00
3-2
4231027B1013L
ref: 3-2
MODEL H E2,E15,E16,E
STAND,PROP (SILVER)
€ 0.00
4-1
0944317018
ref: 4-1
MODEL F E15,E16,E18
SPRING
0944317018
€ 5.50
4-2
0944318016
ref: 4-2
MODEL G E2,E15,E16,E
SPRING
0944318016
€ 21.00
5-1
4231027A2113L
ref: 5-1
MODEL F/G E22
STAND, PROP (SILVER)
€ 0.00
5-2
4231027B2013L
ref: 5-2
MODEL H E22
STAND,PROP (SILVER)
€ 0.00
6
0944314030
ref: 6
E22
SPRING
0944314030
€ 6.00
7
0944322003
ref: 7
E22
SPRING
0944322003
€ 7.00
8
0911110036
ref: 8
BOLT(10X38)
0911110036
€ 5.50
9
0831022107
ref: 9
NUT
0831022107
€ 2.50
10-1
4233027A0113L
ref: 10-1
BRACKET,SIDE STAND
€ 40.50
10-2
4233027A1113L
ref: 10-2
MODEL F/G E15,E16,E1
BRACKET, PROP STAND (SILVER)
€ 29.50
10-3
4233027B10
ref: 10-3
MODEL H E2,E15,E16,E
BRACKET,PROP STAND
€ 28.50
11
0711008358
ref: 11
BOLT, FRONT RH
€ 4.50
12
4157504A00
ref: 12
CAP,ENGINE MOUNTING
4157504A00
€ 2.00
13
0916408015
ref: 13
WASHER
0916408015
€ 3.00
14
0831616088
ref: 14
NUT
0831616088
€ 2.50
15
4311027A01
ref: 15
PEDAL,BRAKE
4311027A01
€ 129.00
16
4315104701
ref: 16
RUBBER,BRAKE PEDAL
4315104701
€ 6.00
17
4312027A00
ref: 17
ARM COMP,BRAKE ROD
4312027A00
€ 28.50
18
0944314044
ref: 18
SPRING
0944314044
€ 4.00
19
4321204A00
ref: 19
WASHER,BRAKE PEDAL
4321204A00
€ 2.00
20-1
0154706208
ref: 20-1
MODEL F/G
BOLT (6X20)
0154706208
€ 2.50
20-2
0910306119
ref: 20-2
MODEL H
BOLT
€ 2.50
21
0920006037
ref: 21
PIN
0920006037
€ 5.00
22
0832221067
ref: 22
WASHER
0832221067
€ 2.00
23
0411120158
ref: 23
PIN
0411120158
€ 1.50
24
4210027A00
ref: 24
OPT
STAND,CENTER
€ 0.00
25
5721149510
ref: 25
OPT
GRIP,L
5721149510
€ 26.50
