Buy Suzuki GSXR Parts Online


REAR FENDER

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

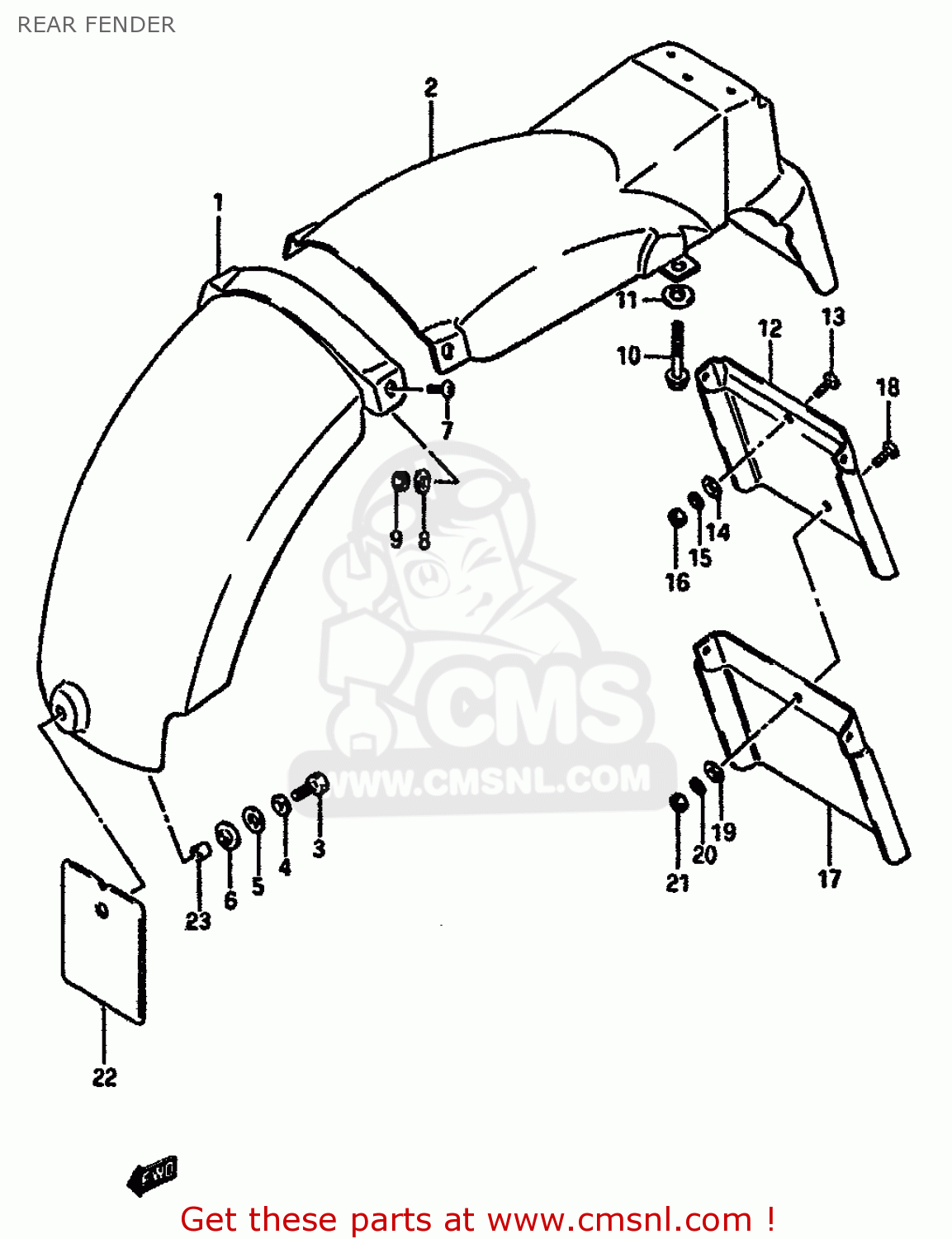

Rear fender diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

REAR FENDER GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6311227A00
ref: 1
BODY,REAR FENDER,FRONT
6311227A00
€ 59.00
2-1
6311327A00
ref: 2-1
MODEL F
BODY,REAR FENDER,REAR
€ 38.00
2-2
6311306B00
ref: 2-2
MODEL G/H
FENDER,REAR
6311306B00
€ 83.00
2-3
6311327A20
ref: 2-3
MODEL F E15,E16,E17,
BODY,REAR FENDER REAR
€ 38.00
2-4
6311306B20
ref: 2-4
MODEL G/H E15,E16,E1
BODY, REAR FENDER REAR
€ 83.00
3-1
0110706207
ref: 3-1
MODEL F
BOLT
0110706207
€ 2.00
3-2
0110706307
ref: 3-2
MODEL G/H
BOLT 6X30
€ 2.50
4
0832121067
ref: 4
WASHER,LOCK
0832121067
€ 2.50
5
0916006007
ref: 5
WASHER
0916006007
€ 2.00
6
0916906038
ref: 6
WASHER
0916906038
€ 2.50
7
0214206166
ref: 7
SCREW
€ 2.50
8
0916006006
ref: 8
WASHER
0916006006
€ 2.00
9
0831921068
ref: 9
NUT 6MM
0831921068
€ 2.00
10
0151708555
ref: 10
BOLT
€ 3.00
11
0916908034
ref: 11
WASHER
0916908034
€ 2.00
12
6331127A20
ref: 12
E15,E16,E17,E18,E22
EXTENSION
€ 18.00
13
0214206125
ref: 13
E15,E16,E17,E18,E22
SCREW 6X12
0214206125
€ 2.00
14
0916006006
ref: 14
E15,E16,E17,E18,E22
WASHER
0916006006
€ 2.00
15
0832121066
ref: 15
E15,E16,E17,E18,E22
WASHER,LOCK
0832121066
€ 2.00
16
0831022066
ref: 16
E15,E16,E17,E18,E22
NUT
€ 2.00
17
6333127A20
ref: 17
E15,E16,E17,E18,E22
MUD GUARD
€ 22.50
18
0214206164
ref: 18
E15,E16,E17,E18,E22
SCREW
0214206164
€ 2.50
19
0916006019
ref: 19
E15,E16,E17,E18,E22
WASHER(6.5X16X1.2)
0916006019
€ 1.50
20
0832121067
ref: 20
E15,E16,E17,E18,E22
WASHER,LOCK
0832121067
€ 2.50
21
0831022066
ref: 21
E15,E16,E17,E18,E22
NUT
€ 2.00
22
6341127A00
ref: 22
MUD GUARD,REAR FENDER,FRONT
6341127A00
€ 9.50
23
0918006030
ref: 23
MODEL G/H
SPACER (6.8X10X10)
0918006030
€ 2.00
