SEAT (MODEL F)

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

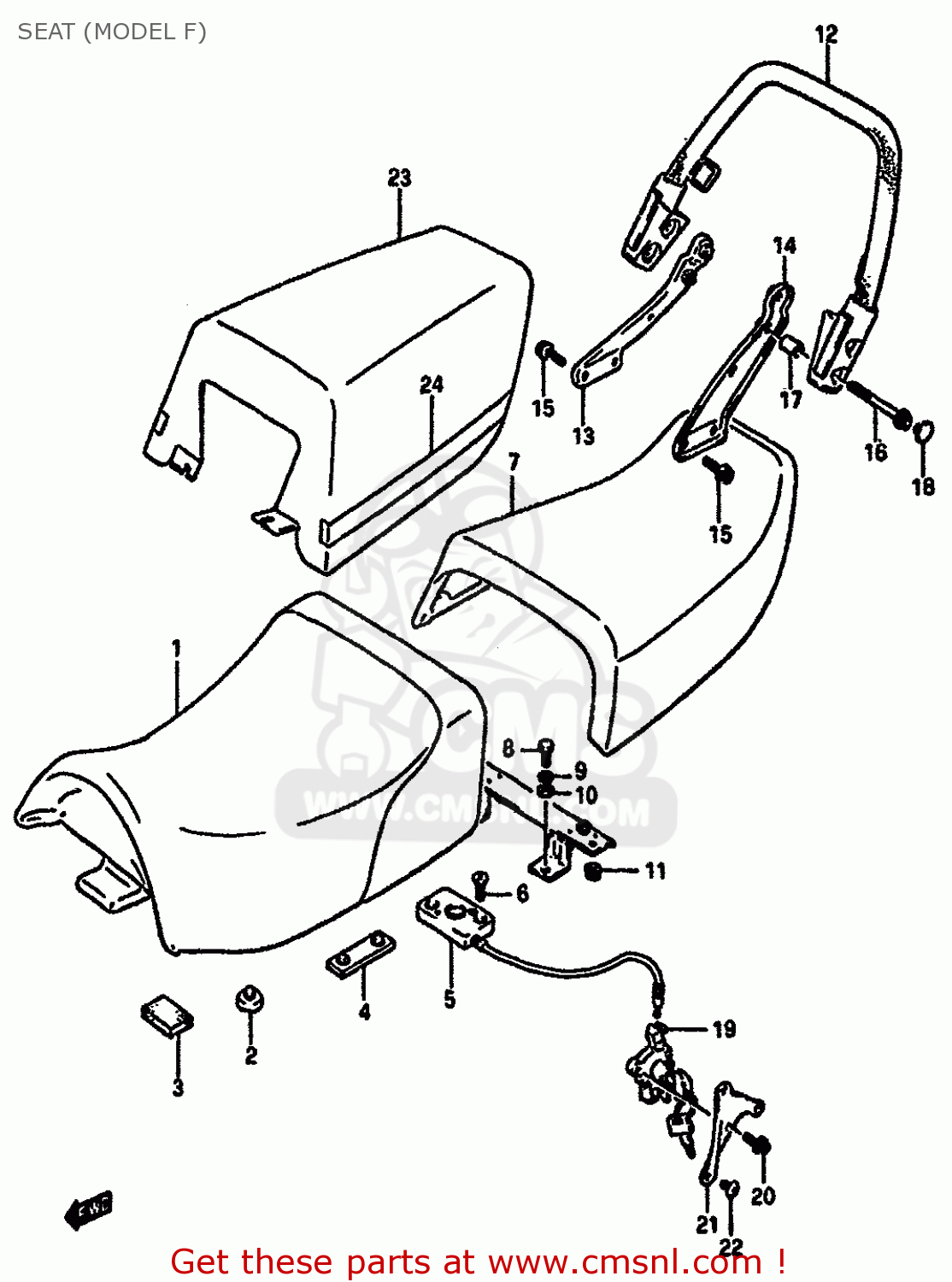

Seat (model f) diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

SEAT (MODEL F) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL F) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL F) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510027A0054G
ref: 1-1
FOR 7GF
SEAT ASSY (BLUE)
€ 262.00
1-2
4510027A0040K
ref: 1-2
FOR 7JK
SEAT ASSY (RED)
€ 0.00
2
0932110002
ref: 2
CUSHION(11.5X22X20)
0932110002
€ 2.00
3
4525515510
ref: 3
CUSHION,TOOL(40X30X15)
4525515510
€ 4.00
4
0932108009
ref: 4
CUSHION
0932108009
€ 4.00
5
4522027A01
ref: 5
BRACKET,SEAT SUPPORT,R
4522027A01
€ 20.50
6
0212206255
ref: 6
SCREW
€ 2.00
7-1
4530027A1054G
ref: 7-1
FOR 7GF
SEAT ASSY
€ 259.50
7-2
4530027A1040K
ref: 7-2
FOR 7JK
SEAT ASSY,PILLION (RED)
€ 0.00
7-3
4530027A0054G
ref: 7-3
E2,E4,E16,E18,E21,E2
SEAT ASSY,PILLION (BLUE)
4530027A0054G
€ 259.50
7-4
4530027A004DK
ref: 7-4
E2,E4,E16,E18,E21,E2
SEAT ASSY,PILLION 9RED)
€ 259.50
7-5
4530027A2054G
ref: 7-5
E34,FOR 7GF
SEAT ASSY,PILLION (BLUE)
€ 259.50
7-6
4530027A204DK
ref: 7-6
E34,FOR 7JK
SEAT ASSY,PILLION (RED)
€ 259.50
8
0110706166
ref: 8
BOLT
€ 2.00
9
0832121066
ref: 9
WASHER,LOCK
0832121066
€ 2.00
10
0916006019
ref: 10
WASHER(6.5X16X1.2)
0916006019
€ 1.50
11
0831626066
ref: 11
NUT
€ 2.00
12-1
4621027A00
ref: 12-1
HANDLE,PILLION RIDER
€ 99.50
12-2
4621027A01
ref: 12-2
E22
HANDLE,PILLION RIDER
4621027A01
€ 99.50
13
4624027A00
ref: 13
PLATE,PILLION HANDLE,R
4624027A00
€ 10.00
14
4625027A00
ref: 14
PLATE COMP,PILLION HANDLE
4625027A00
€ 9.00
15
0712006168
ref: 15
BOLT
€ 2.50
16
0910608061
ref: 16
BOLT
€ 4.50
17
0918008125
ref: 17
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
18
0925006008
ref: 18
CAP(OD:10)
0925006008
€ 3.00
19
9570027A00KEY
ref: 19
LOCK SET
9570027A00KEY
€ 65.50
20
0712006205
ref: 20
PLUG ,6X20
0712006205
€ 3.50
21
4528527A00
ref: 21
BRACKET,SEAT LOCK
4528527A00
€ 3.50
22
0214206125
ref: 22
SCREW 6X12
0214206125
€ 2.00
23-1
455502782014L
ref: 23-1
OPT
BOX SET
€ 173.50
23-2
4555027820019
ref: 23-2
OPT
BOX SET,SEAT TAIL (BLACK)
€ 173.50
24-1
6865027A1008L
ref: 24-1
OPT,FOR 14L
TAPE SET,SEAT TAIL BOX
€ 17.00
24-2
6865027A10064
ref: 24-2
OPT,FOR 019
TAPE SET,SEAT TAIL BOX
€ 14.50
