SIGNAL GENERATOR

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

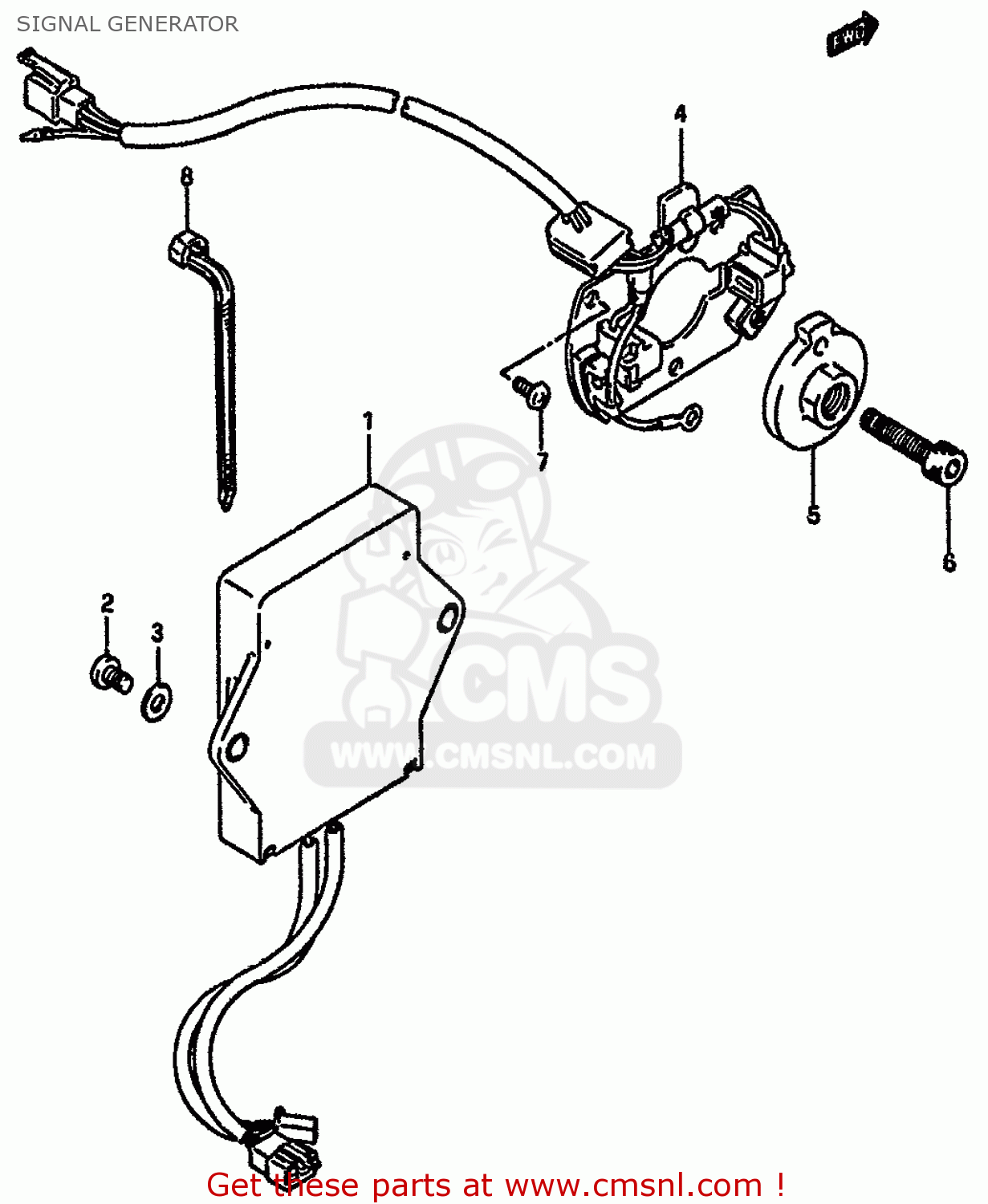

Signal generator diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

3290027A00
ref: 1

IGNITER UNIT

€ 551.00

2

0211206126
ref: 2

SCREW

€ 1.50

3

0832221066
ref: 3

WASHER, LOWER

€ 2.00

4

3311027A00
ref: 4

GENERATOR ASSEMBLY,SIGNAL

€ 253.00

5

3312027A00
ref: 5

ROTOR COMP,SIGNAL

€ 90.50

6

0711008306
ref: 6

BOLT

€ 3.00

7

0211205107
ref: 7

SCREW

€ 2.00

8

0940711401
ref: 8

CLAMP(L:95)

€ 2.50
