FOOTREST

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

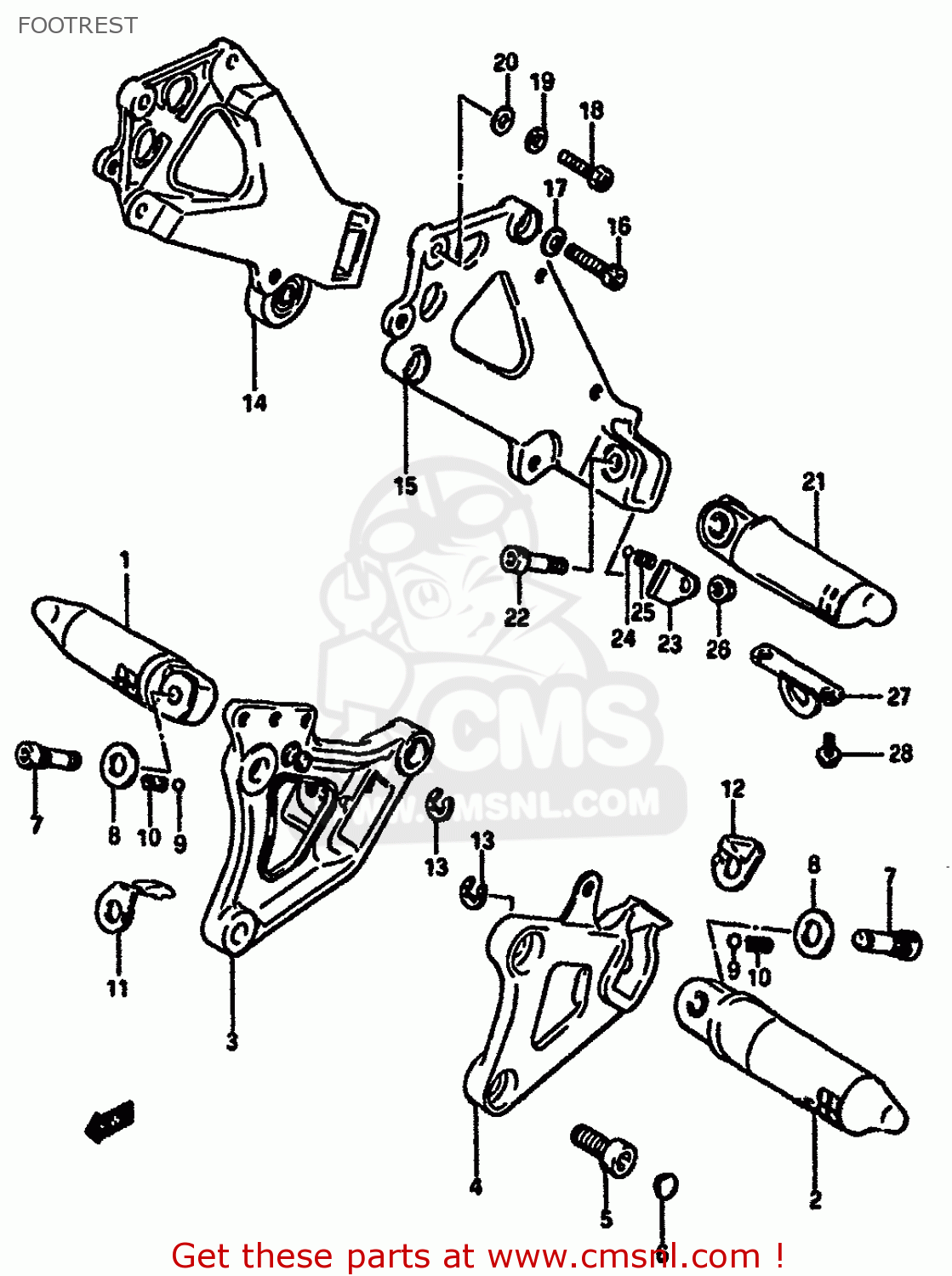

Footrest diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FOOTREST GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4350127A00
ref: 1-1
MODEL F/G
FOOTREST ASSEMBLY,FRONT,RIGHT
€ 122.50
1-2
4350127A02
ref: 1-2
MODEL H
FOOTREST ASSY,FR,R
4350127A02
€ 122.50
2-1
4350227A00
ref: 2-1
MODEL F/G
FOOTREST ASSEMBLY,FRONT,LEFT
4350227A00
€ 65.00
2-2
4350227A02
ref: 2-2
MODEL H
FOOTREST ASSY,FR,L
4350227A02
€ 65.00
3
4351027A00
ref: 3
BRACKET,FOOTREST,R
4351027A00
€ 115.50
4
4352227A00
ref: 4
BRACKET,FOOTREST,L
4352227A00
€ 85.00
5
0711010258
ref: 5
BOLT
€ 3.00
6
4357534500
ref: 6
CAP
4357534500
€ 1.50
7
4352927A00
ref: 7
BOLT,FR FOOTREST
4352927A00
€ 6.50
8
4359627A00
ref: 8
MODEL F/G
PLATE,SPRING STOP
€ 2.50
9
0611207004
ref: 9
MODEL F/G
BALL
€ 1.50
10
0944005003
ref: 10
MODEL F/G
SPRING
0944005003
€ 1.50
11
4358006B10
ref: 11
MODEL H
CUSHION,FRONT FOOTREST,RIGHT
€ 10.50
12
4359006B10
ref: 12
MODEL H
CUSHION,FRONT FOOTREST,LEFT
€ 10.50
13
0833211068
ref: 13
E RING 6MM
0833211068
€ 2.00
14-1
4381027A00
ref: 14-1
MODEL F/G
BRACKET
€ 100.50
14-2
4381027A01
ref: 14-2
MODEL H
BRACKET,PILLION FOOTREST
4381027A01
€ 100.50
15-1
4382127A00
ref: 15-1
MODEL F/G
BRACKET
€ 71.50
15-2
4382127A01
ref: 15-2
MODEL H
BRACKET,PILLION FOOTREST
4382127A01
€ 71.50
16
0711006257
ref: 16
BOLT
€ 2.50
17
0916406009
ref: 17
WASHER
€ 2.50
18
0110706307
ref: 18
BOLT 6X30
€ 2.50
19
0832121067
ref: 19
WASHER,LOCK
0832121067
€ 2.50
20
0832221067
ref: 20
WASHER
0832221067
€ 2.00
21-1
4360127A00
ref: 21-1
FOOTREST ASSY,PILLION RH
4360127A00
€ 55.50
21-2
4360227A00
ref: 21-2
FOOTREST ASSY,PILLION LH
4360227A00
€ 52.00
22
4364204A00
ref: 22
BOLT,PILLION FOOTREST
4364204A00
€ 4.50
23-1
4363504A00
ref: 23-1
PLATE,SPRING STOP,RIGHT
4363504A00
€ 9.50
23-2
4373504A00
ref: 23-2
PLATE,SPRING STOP LH
4373504A00
€ 4.00
24
0611207004
ref: 24
BALL
€ 1.50
25
0944005003
ref: 25
SPRING
0944005003
€ 1.50
26
0831931065
ref: 26
NUT
0831931065
€ 2.50
27
4361927A00
ref: 27
HOOK
4361927A00
€ 6.00
28
0215204128
ref: 28
SCREW
0215204128
€ 2.00
