FRONT CALIPERS

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

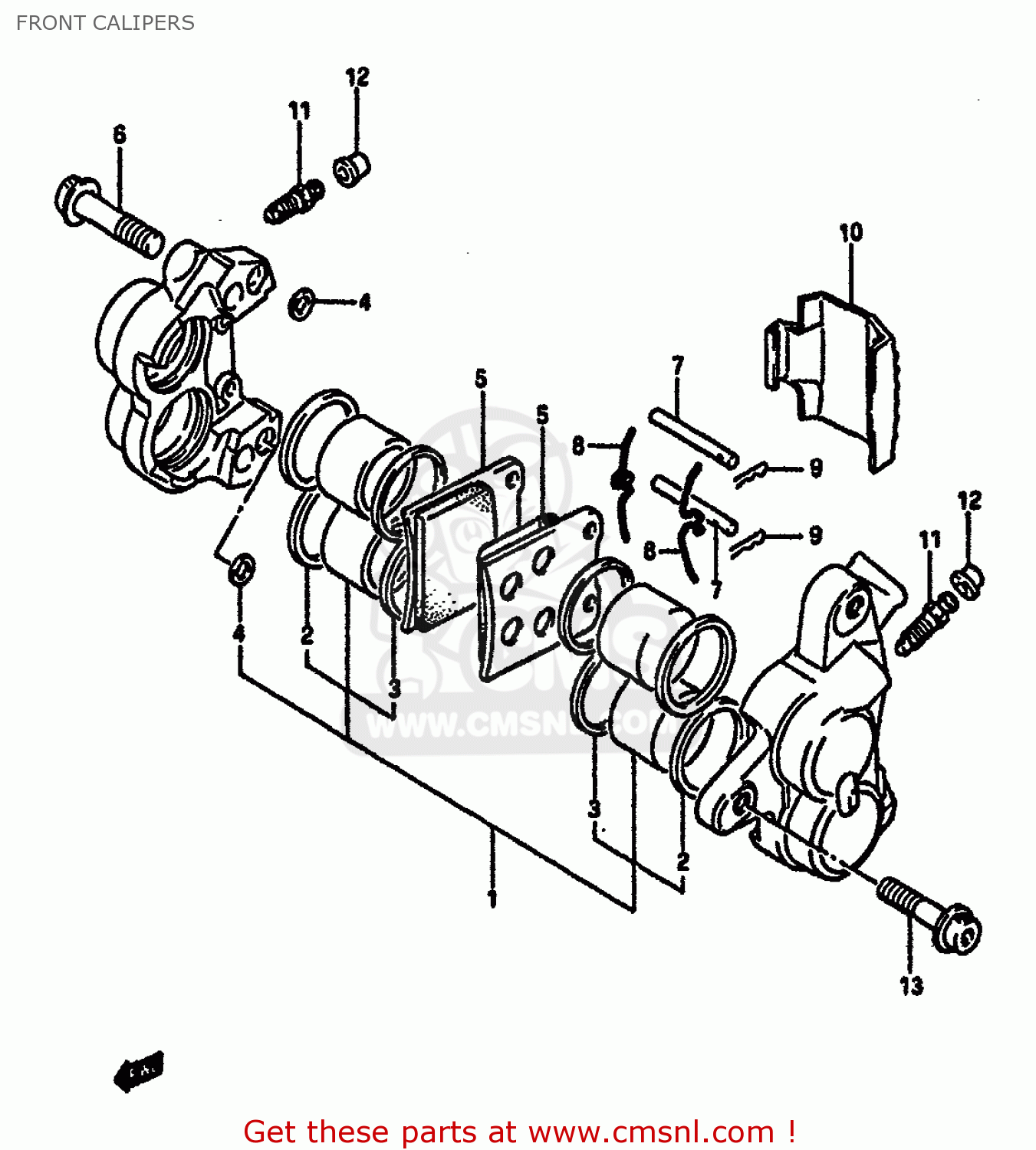

Front calipers diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FRONT CALIPERS GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FRONT CALIPERS GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

0

5910027A10
ref: 0

CALIPER ASSEMBLY,RIGHT

€ 497.00

0

5930027A10
ref: 0

CALIPER ASSEMBLY,LEFT

€ 466.50

1

5930027820
ref: 1

PISTON SET

€ 139.00

2

5910727A10
ref: 2

SEAL,PISTON

€ 23.50

3

5910827A10
ref: 3

SEAL,WIPER

€ 18.00

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

5913027A10
ref: 5

PAD,BRAKE (MCA)

€ 47.00

6

5914516700
ref: 6

BOLT,HOUSING

€ 8.00

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

5914316700
ref: 8

SPRING

€ 7.50

9

6914245000
ref: 9

CLIP,PAD PIN

€ 4.50

10

5915104A01
ref: 10

COVER,CALIPER

€ 55.00

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5912218410
ref: 12

CAP,BREATHER

€ 6.00

13

0712008358
ref: 13

BOLT

€ 3.50
