FUEL TANK (MODEL H)

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

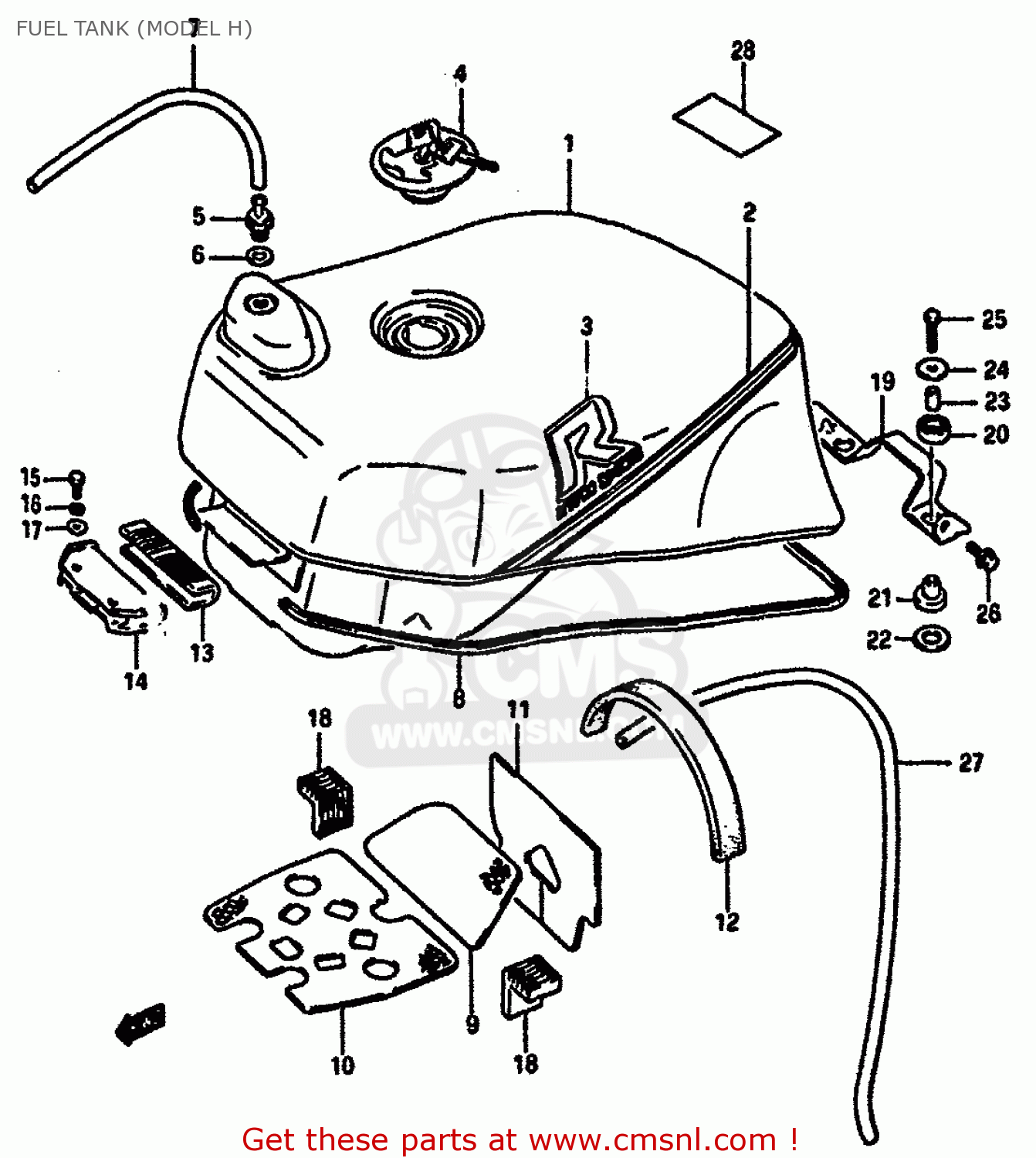

Fuel tank (model h) diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FUEL TANK (MODEL H) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL H) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL H) GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4410028A507JK
ref: 1-1
TANK ASSEMBLY,FUEL
4410028A507JK
€ 629.50
1-2
4410028A607JK
ref: 1-2
E22
TANK ASSY,FUEL
€ 807.00
1-3
4410028A509HE
ref: 1-3
TANK ASSY,FUEL
€ 901.50
1-4
4410028A609HE
ref: 1-4
E22
TANK ASSY,FUEL
€ 807.00
2-1
6811027A309JH
ref: 2-1
FOR 7JK
TAPE SET,FUEL TANK
€ 52.50
2-2
6811027A309JJ
ref: 2-2
FOR 9HE
TAPE SET,FUEL TANK
€ 0.00
3-1
6811127A007TS
ref: 3-1
FOR 7JK
EMBLEM
€ 0.00
3-2
6811127A007TW
ref: 3-2
FOR 9HE
EMBLEM
6811127A007TW
€ 9.00
4
4420020A00KEY
ref: 4
CAP SET,FUEL TANK
4420020A00KEY
€ 174.00
5
4424006B10
ref: 5
PLUG,FUEL TANK BREATHER
4424006B10
€ 36.00
6
0916812012
ref: 6
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
7
0934305129
ref: 7
HOSE
€ 13.00
8
6824127A00
ref: 8
MOLDING,FUEL TANK
6824127A00
€ 23.00
9
4419127A00
ref: 9
SHIELD,FUEL TANK HEAT
4419127A00
€ 15.50
10
4419227A00
ref: 10
SHIELD,FUEL TANK HEAT
4419227A00
€ 25.50
11
4419427A00
ref: 11
HEAT SHIELD,FUEL TANK
€ 16.50
12
4419327A02
ref: 12
SHIELD,TANK & CLEANER
€ 12.50
13
4451127A10
ref: 13
CUSHION,FUEL TANK FR
4451127A10
€ 7.00
14
4452127A00
ref: 14
BRACKET,FUEL TANK FR
4452127A00
€ 16.00
15
0110706205
ref: 15
BOLT
0110706205
€ 2.00
16
0832121064
ref: 16
WASHER,LOCK
0832121064
€ 2.00
17
0832221064
ref: 17
WASHER
0832221064
€ 2.00
18
4454527A10
ref: 18
CUSHION,FUEL TANK SIDE
4454527A10
€ 4.00
19
4521127A00
ref: 19
BRACKET,SEAT SUPPORT,FRONT
4521127A00
€ 9.50
20
0932014017
ref: 20
CUSHION
0932014017
€ 3.00
21
0932010038
ref: 21
CUSHION
0932010038
€ 4.00
22
0916012004
ref: 22
WASHER (12.5X24X1.6)
0916012004
€ 2.00
23
0918006072
ref: 23
SPACER
0918006072
€ 2.00
24
0916006072
ref: 24
WASHER (6.5X24X1.6)
0916006072
€ 2.00
25
0110706356
ref: 25
BOLT ,6X35
€ 2.50
26
0913806038
ref: 26
SCREW(6X16)
0913806038
€ 3.00
27
0934305165
ref: 27
HOSE,FUEL
0934305165
€ 13.00
28
8693273060
ref: 28
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
