CRANKCASE

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

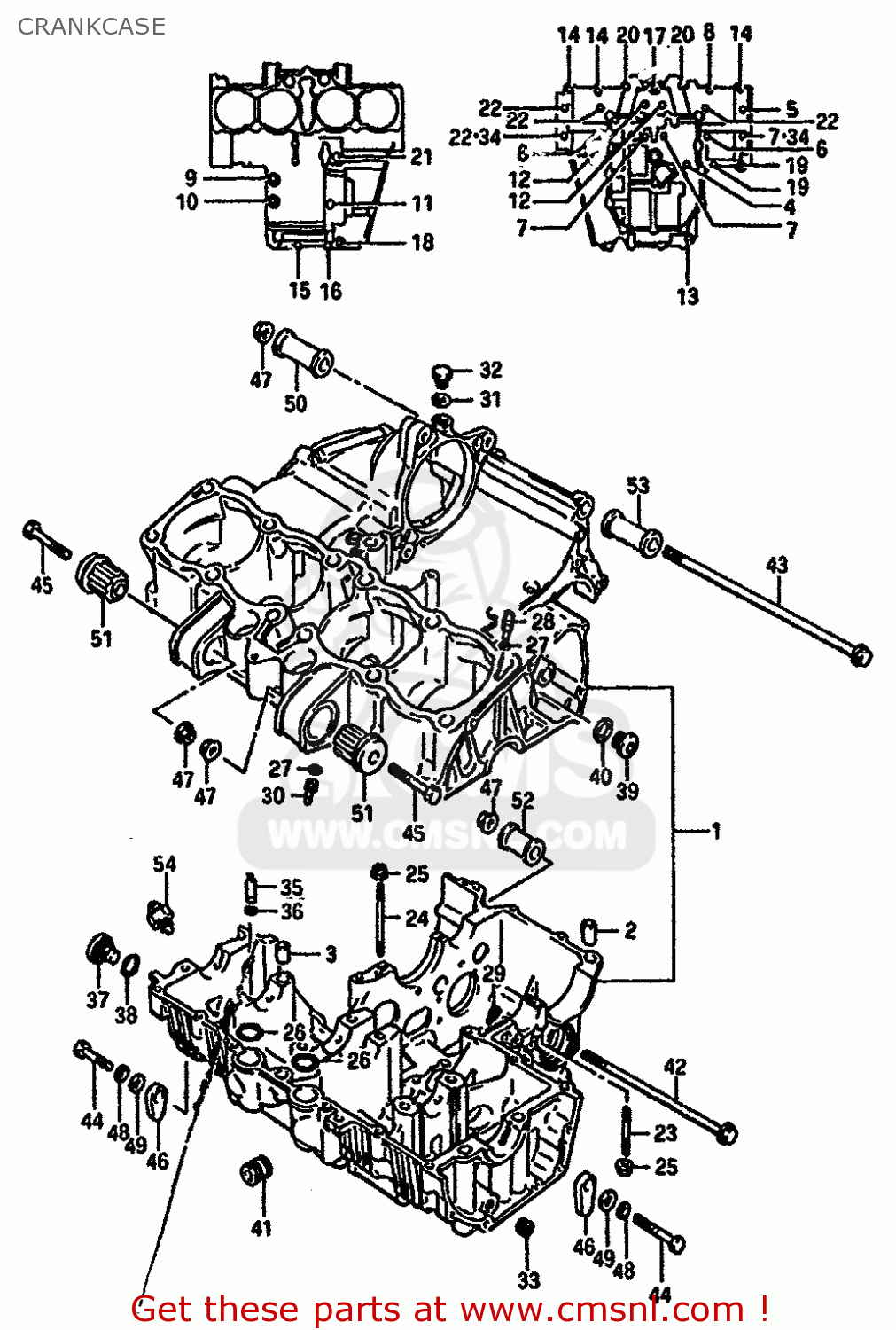

Crankcase diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CRANKCASE GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1130027852
ref: 1-1
TO 11300-27862
CRANKCASE SET
€ 1,199.00
1-2
1130027862
ref: 1-2
E.NO.131590~
CRANKCASE SET
€ 1,199.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0910306067
ref: 4
BOLT(6X105)
0910306067
€ 3.50
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
8
0151706354
ref: 8
BOLT 6X35
€ 2.50
9
0711006405
ref: 9
BOLT
0711006405
€ 3.50
10
0711006505
ref: 10
BOLT
€ 3.00
11
0711006655
ref: 11
BOLT
€ 4.00
12
0711008555
ref: 12
BOLT
€ 3.50
13
0151708605
ref: 13
BOLT 8X60
€ 3.50
14
0151706354
ref: 14
BOLT 6X35
€ 2.50
15
0151706404
ref: 15
BOLT
0151706404
€ 2.00
16
0151706408
ref: 16
BOLT
0151706408
€ 2.50
17
0151706505
ref: 17
BOLT 6X50
0151706505
€ 2.00
18
0151706605
ref: 18
BOLT ,6X60
€ 2.50
19
0151706558
ref: 19
BOLT
€ 2.50
20
0151706705
ref: 20
BOLT
€ 2.50
21
0151706805
ref: 21
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
0910308105
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25
0915906017
ref: 25
NUT
0915906017
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
0928021008
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
0928004004
€ 2.00
28
0949314002
ref: 28
JET,AIR
0949314002
€ 8.00
29
0949324010
ref: 29
JET
0949324010
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
0949380008
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
0924712103
€ 3.50
33
0924606001
ref: 33
PLUG(1/4PT,H:7.5)
0924606001
€ 2.00
34
0916808021
ref: 34
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
35
1643027A00
ref: 35
VALVE ASSEMBLY,PISTON OIL
€ 21.00
36
0928005007
ref: 36
O RING(D:1.2,ID:4.7)
0928005007
€ 2.00
37
0924816003
ref: 37
PLUG
0924816003
€ 16.50
38
0928017002
ref: 38
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
39
0924814004
ref: 39
PLUG
0924814004
€ 5.00
40
0916814004
ref: 40
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
41
1659105A00
ref: 41
UNION,OIL STAND
1659105A00
€ 6.50
42
0910310136
ref: 42
BOLT(10X180)
0910310136
€ 11.50
43
0910310137
ref: 43
BOLT(10X255)
0910310137
€ 10.00
44
0110710558
ref: 44
BOLT 10X55
0110710558
€ 3.50
45
0151710558
ref: 45
BOLT 10X55
€ 3.00
46
0915910020
ref: 46
NUT
0915910020
€ 7.50
47
0915910058
ref: 47
NUT
0915910058
€ 4.00
48
0832121107
ref: 48
WASHER,LOCK,10
0832121107
€ 2.00
49
0832211107
ref: 49
WASHER
0832211107
€ 2.50
50
1161114220
ref: 50
SPACER,ENGINE MOUNT
1161114220
€ 9.00
51
1168127A00
ref: 51
BUSH,ENGINE MOUNTING
1168127A00
€ 27.00
52
1161127A00
ref: 52
SPACER,ENGINE MOUNT
1161127A00
€ 12.00
53
1161227A00
ref: 53
SPACER
€ 12.00
54
3782034200
ref: 54
SWITCH ASSEMBLY
3782034200
€ 29.00
