CLUTCH MASTER CYLINDER

GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

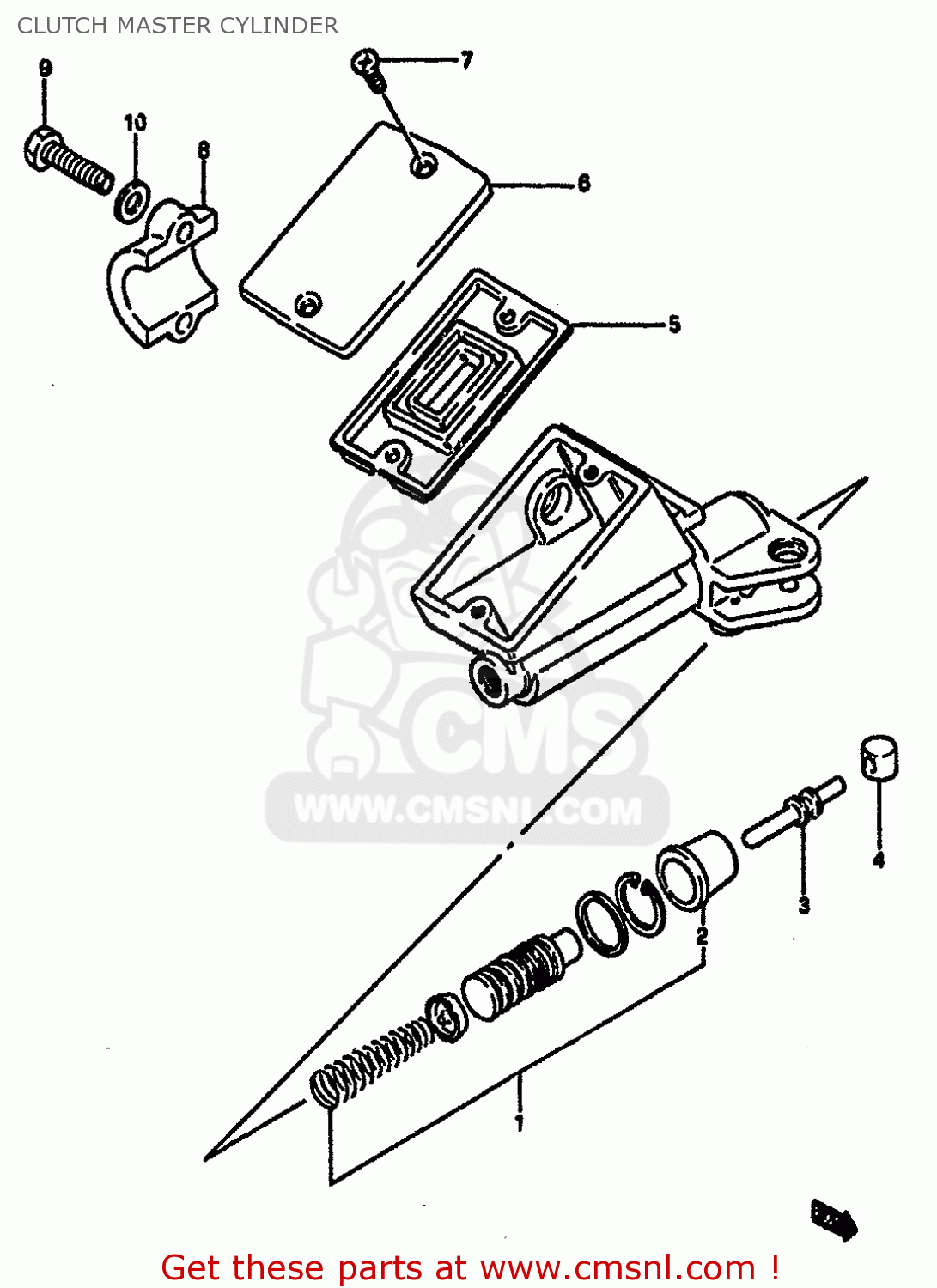

Clutch master cylinder diagram GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

5980027A40
ref: 0

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 301.00

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

5966644300
ref: 2

BOOT

€ 6.00

5987108A00
ref: 3

ROD,PUSH

€ 5.50

5989208A00
ref: 4

BUSH

€ 5.50

5966749460
ref: 5

5966749460

5966904A10
ref: 6

CAP

€ 30.00

6968949300
ref: 7

SCREW

€ 1.50

5967116700
ref: 8

HOLDER,MASTER CYLINDER

€ 18.50

0110706255
ref: 9

BOLT

€ 2.50

0832221064
ref: 10

WASHER

€ 2.00
